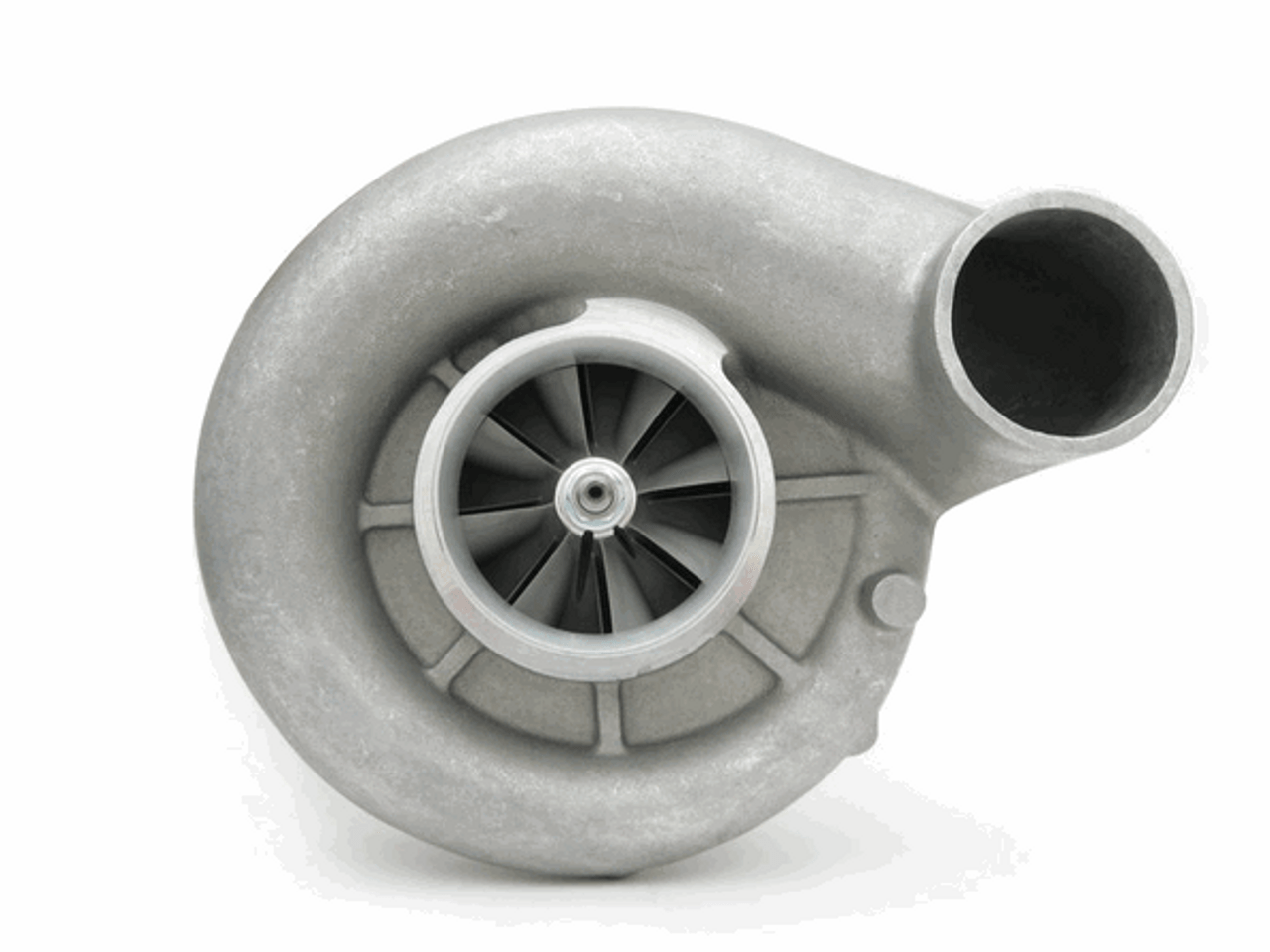

Paxton Superchargers NOVI-2000 Head Unit - Counter-Clockwise Rotation - Straight Discharge - Polished 8001404-P
Polished NOVI-2000 Centrifugal Supercharger Head Unit (CCW, Straight Discharge)
The Paxton Superchargers NOVI-2000 Head Unit (PN 8001404-P) is a legendary gear-driven centrifugal supercharger built for extreme performance, durability, and long-term upgrade flexibility. This configuration features counter-clockwise (CCW) rotation, a straight discharge outlet, and a show-quality polished finish, making it ideal for high-end street, strip, and competition builds.
Based on Paxton's race-proven NOVI gear case, the NOVI-2000 utilizes billet steel, helical-cut gears and aerospace-quality high-speed bearings for quiet operation and exceptional strength. A direct-to-gear, constant-circulation oiling system provides optimal lubrication and cooling - even under sustained high-boost conditions.
Race-Proven NOVI Supercharger Technology
Introduced in 1995, the NOVI-2000 revolutionized the centrifugal supercharger market and remains a benchmark today. Its unique impeller design and compact scroll housing allow it to generate up to 26 PSI of boost while supporting up to 1,000 horsepower in properly configured systems.
The NOVI-2000 series debuted helical-cut gears in a centrifugal supercharger, significantly reducing noise compared to straight-cut designs while maintaining strength under extreme loads.
Performance & Capability
- Maximum Boost: Up to 26 PSI
- Maximum Power: Up to 950 HP
- Maximum Airflow: 1,400 CFM
- Peak Efficiency: 71%
- Maximum Impeller Speed: 55,000 RPM
While most street NOVI-2000 systems operate in the 8-10 PSI range, this head unit's greatest advantage is its versatility. As power goals increase, boost can be raised simply by changing pulleys - eliminating the need to replace the supercharger.
Counter-Clockwise Rotation - Straight Discharge Configuration
This version features counter-clockwise (CCW) rotation with a straight discharge outlet. In CCW form, the supercharger can be mounted backwards with the intake facing forward, allowing it to be driven by the factory accessory drive belt and eliminating the need for a separate supercharger drive system - an advantage for many OEM-style and custom installations.
Key Features
- Legendary NOVI-2000 centrifugal supercharger design
- Billet steel, helical-cut gear drive for quiet, reliable operation
- Aerospace-quality high-speed bearings
- Direct-to-gear constant circulation oiling system
- Supports up to 950 horsepower
- Straight discharge outlet for simplified charge piping
- Polished finish for show-quality appearance
Quick Specs
- Manufacturer: Paxton Superchargers
- Part Number: 8001404-P
- Supercharger Model: NOVI-2000
- Rotation: Counter-Clockwise (CCW)
- Discharge Style: Straight
- Finish: Polished
- Internal Step-Up Ratio: 3.5:1
- Max Speed: 55,000 RPM
- Max Boost: 26 PSI
- Max Flow: 1,400 CFM
- Max Power: 950 HP
- Peak Efficiency: 71%
- Inlet OD: 4.0 inches
- Discharge OD: 3.0 inches
- Inducer Diameter: 3.534 inches
Emissions & Legal Notice
- NOT AVAILABLE OR LEGAL FOR SALE IN CALIFORNIA
- For off-road and competition use only
- Installation on emissions-controlled vehicles driven on public roads may violate U.S. federal emissions law
