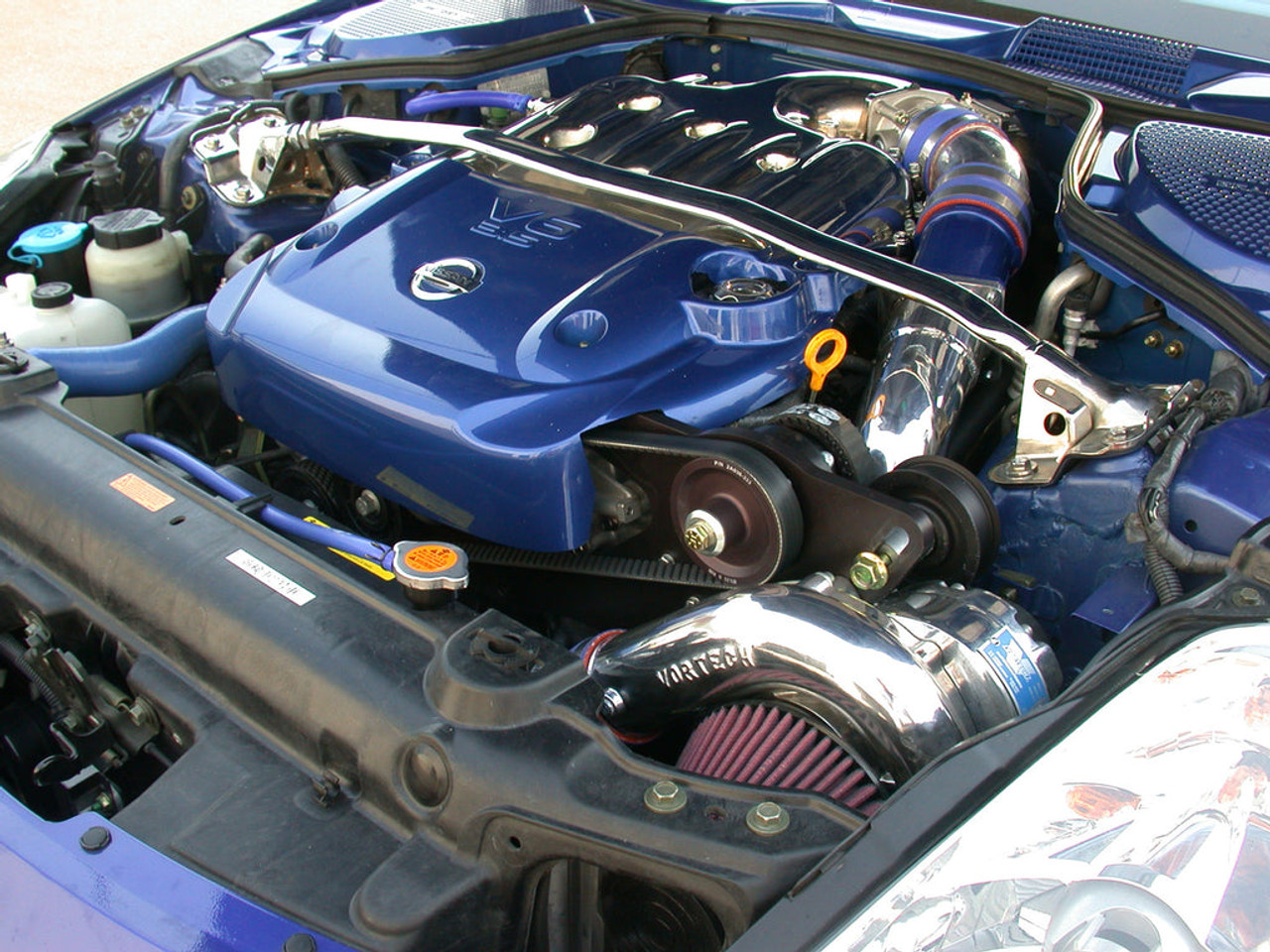

Vortech V-2 Ti-Trim Tuner Kit - Polished (2005-2006 Nissan 350Z Rev-Up) 4NZ218-128TSQ
Polished V-2 Ti-Trim Supercharger Tuner Kit for 350Z Rev-Up
The Vortech V-2 Ti-Trim Supercharger Tuner Kit (PN 4NZ218-128TSQ) is built for 2005-2006 Nissan 350Z Rev-Up owners targeting aggressive horsepower levels with fully custom fueling and calibration. Featuring a high-visibility polished finish, this tuner kit is intended for experienced builders and racers who want maximum airflow capability without the constraints of preconfigured fuel or ECU solutions.
This system centers on Vortech's V-2 Ti-Trim gear-driven centrifugal supercharger - an ultra high-flow compressor designed for elevated boost and serious power production. The Ti-Trim is optimized for track-focused and competition-driven Z-car builds where airflow demand exceeds standard Si-Trim configurations.
V-2 Ti-Trim Supercharger Technology
The V-2 Ti-Trim uses a technologically advanced, high-efficiency impeller and housing developed in Vortech's supercharger test cell. Paired with SQ (Super Quiet) technology, the V-2 series delivers excellent reliability and smooth operation even at high RPM. For sustained boost conditions such as road racing, V-2 superchargers share the engine's oiling system, allowing the use of external oil coolers or filtration to enhance thermal control.
Performance & Capability
- Power Potential: Designed for high-horsepower, high-boost applications
- Airflow Capacity: Significantly higher flow than standard Si-Trim setups
- Race-Oriented Platform: Ideal foundation for extreme-performance builds
Vortech supercharger systems are known for exceptional horsepower-per-dollar value while maintaining the smooth, linear power delivery inherent to centrifugal supercharger designs.
Tuner Kit Configuration
This Tuner Kit includes all major supercharger mounting and drive components but does not include fuel system upgrades or ECM recalibration. This allows tuners and racers to configure injectors, fuel delivery, engine management, and boost levels appropriate for power targets that can exceed 500 horsepower.
Included Components & Features
- Vortech V-2 Ti-Trim gear-driven centrifugal supercharger
- Billet aluminum supercharger mounting bracket for factory-style appearance and rigidity
- Supercharger drive system with required belts and pulleys
- Vortech Maxflow Race Bypass Valve for surge-free compressor operation
- High-flow reusable air filter
- Heat-resistant silicone discharge couplers
- Premium stainless steel clamps
Important Charge Cooling Note
Tuner kits equipped with the V-2 Ti-Trim do NOT include a Charge Cooler. The standard 350Z/G35 Charge Cooler cannot support the airflow capability of the Ti-Trim compressor. Customers planning to run this configuration must supply a Charge Cooler capable of flowing sufficient CFM to support the V-2 Ti-Trim.
Installation Notes
- Designed specifically for 2005-2006 Nissan 350Z Rev-Up engines
- Professional installation and custom tuning strongly recommended
- Optional hardware kits available:
- 4NZ100-001: Standard engine spare/replacement hardware
- 4NZ100-002: Rev-Up engine spare/replacement hardware
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 4NZ218-128TSQ
- Vehicle: 2005-2006 Nissan 350Z Rev-Up
- System Type: Supercharger Tuner Kit
- Supercharger: V-2 Ti-Trim
- Charge Cooling: Not Included
- Finish: Polished
Emissions & Legal Notice
- NOT AVAILABLE OR LEGAL FOR SALE IN CALIFORNIA
- For off-road and competition use only
- Installation on emissions-controlled vehicles driven on public roads may violate U.S. federal emissions law
Warranty Information
- 1-Year Supercharger Limited Warranty: Included with all tuner kits
- 3-Year Supercharger Limited Warranty: Available only with V-3 superchargers when purchased as part of a complete street-legal system; tuner kits are not eligible
Fitment
- 2005 Nissan 350Z Rev-Up
- 2006 Nissan 350Z Rev-Up
