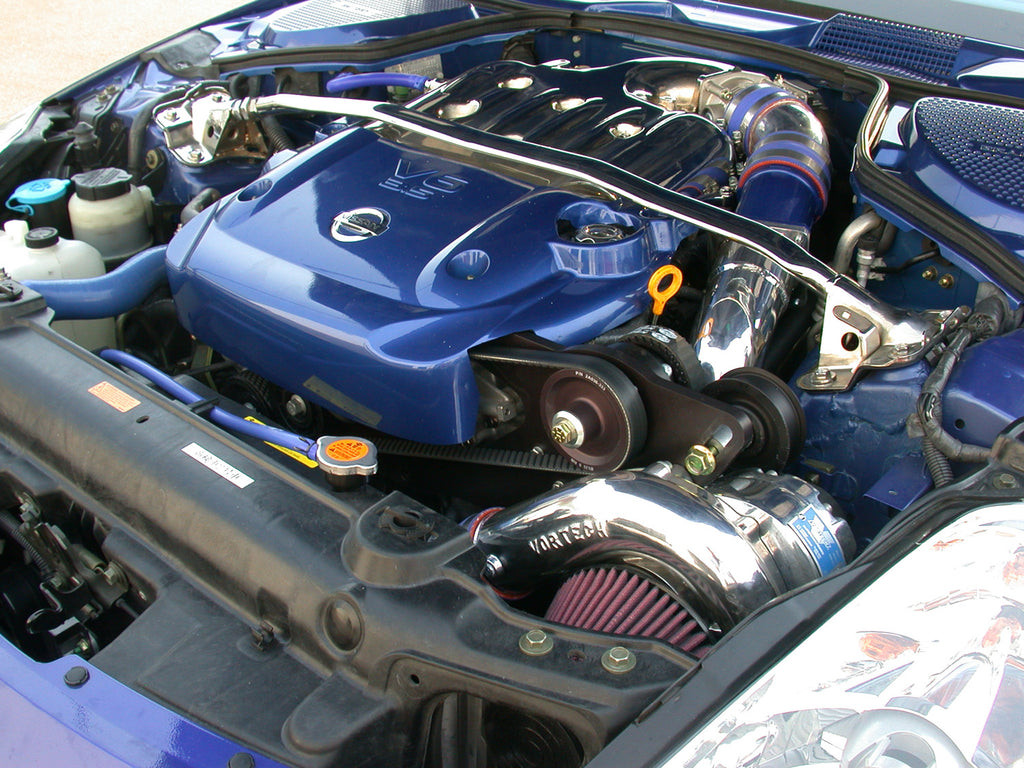

Vortech V-2 Ti-Trim Tuner Kit - Satin (2005-2006 Nissan 350Z Rev-Up) 4NZ218-120TSQ
Satin V-2 Ti-Trim Supercharger Tuner Kit for 350Z Rev-Up
The Vortech V-2 Ti-Trim Supercharger Tuner Kit (PN 4NZ218-120TSQ) is designed for 2005-2006 Nissan 350Z Rev-Up applications targeting aggressive power levels with fully custom fueling and calibration. Finished in a durable satin coating, this tuner kit is intended for experienced builders and racers who want maximum airflow potential without the constraints of preconfigured fuel or ECU solutions.
This configuration centers on Vortech's V-2 Ti-Trim gear-driven centrifugal supercharger, a high-flow compressor engineered for serious horsepower builds. The Ti-Trim is optimized for high boost and large airflow demands, making it a strong choice for track-focused or competition-driven Z-car projects.
V-2 Ti-Trim Supercharger Technology
The V-2 Ti-Trim utilizes a technologically advanced, high-efficiency impeller and housing design developed in Vortech's supercharger test cell. Combined with SQ (Super Quiet) technology, the V-2 series delivers excellent reliability and smooth operation even at elevated RPM. For sustained boost conditions such as road racing, V-2 superchargers share the engine's oiling system, allowing the addition of external oil coolers or filtration for improved thermal control.
Performance & Capability
- Power Potential: Designed for high-horsepower and high-boost applications
- Airflow Capacity: Significantly greater flow than standard Si-Trim configurations
- Scalable Platform: Ideal foundation for competitive or extreme-performance builds
Vortech systems are widely regarded for exceptional horsepower-per-dollar value, while maintaining the smooth, linear power delivery inherent to centrifugal supercharger designs.
Tuner Kit Configuration
This Tuner Kit includes all major supercharger mounting and drive components but does not include fuel system upgrades or ECM recalibration. This allows tuners and racers to configure injectors, fuel delivery, engine management, and boost levels appropriate for power targets that can exceed 500 horsepower.
Included Components & Features
- Vortech V-2 Ti-Trim gear-driven centrifugal supercharger
- Billet aluminum supercharger mounting bracket for factory-style appearance and rigidity
- Supercharger drive system with required belts and pulleys
- Vortech Maxflow Race Bypass Valve for surge-free compressor operation
- High-flow reusable air filter
- Heat-resistant silicone discharge couplers
- Premium stainless steel clamps
Important Charge Cooling Note
Tuner kits equipped with the V-2 Ti-Trim do NOT include a Charge Cooler. The standard 350Z/G35 Charge Cooler cannot support the airflow capability of the Ti-Trim compressor. Customers planning to run this configuration must supply a Charge Cooler capable of flowing sufficient CFM to support the V-2 Ti-Trim.
Installation Notes
- Designed specifically for 2005-2006 Nissan 350Z Rev-Up engines
- Professional installation and custom tuning strongly recommended
- Optional hardware kits available:
- 4NZ100-001: Standard engine spare/replacement hardware
- 4NZ100-002: Rev-Up engine spare/replacement hardware
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 4NZ218-120TSQ
- Vehicle: 2005-2006 Nissan 350Z Rev-Up
- System Type: Supercharger Tuner Kit
- Supercharger: V-2 Ti-Trim
- Charge Cooling: Not Included
- Finish: Satin
Emissions & Legal Notice
- NOT AVAILABLE OR LEGAL FOR SALE IN CALIFORNIA
- For off-road and competition use only
- Installation on emissions-controlled vehicles driven on public roads may violate U.S. federal emissions law
Warranty Information
- 1-Year Supercharger Limited Warranty: Included with all tuner kits
- 3-Year Supercharger Limited Warranty: Available only with V-3 superchargers when purchased as part of a complete street-legal system; tuner kits are not eligible
Fitment
- 2005 Nissan 350Z Rev-Up
- 2006 Nissan 350Z Rev-Up
