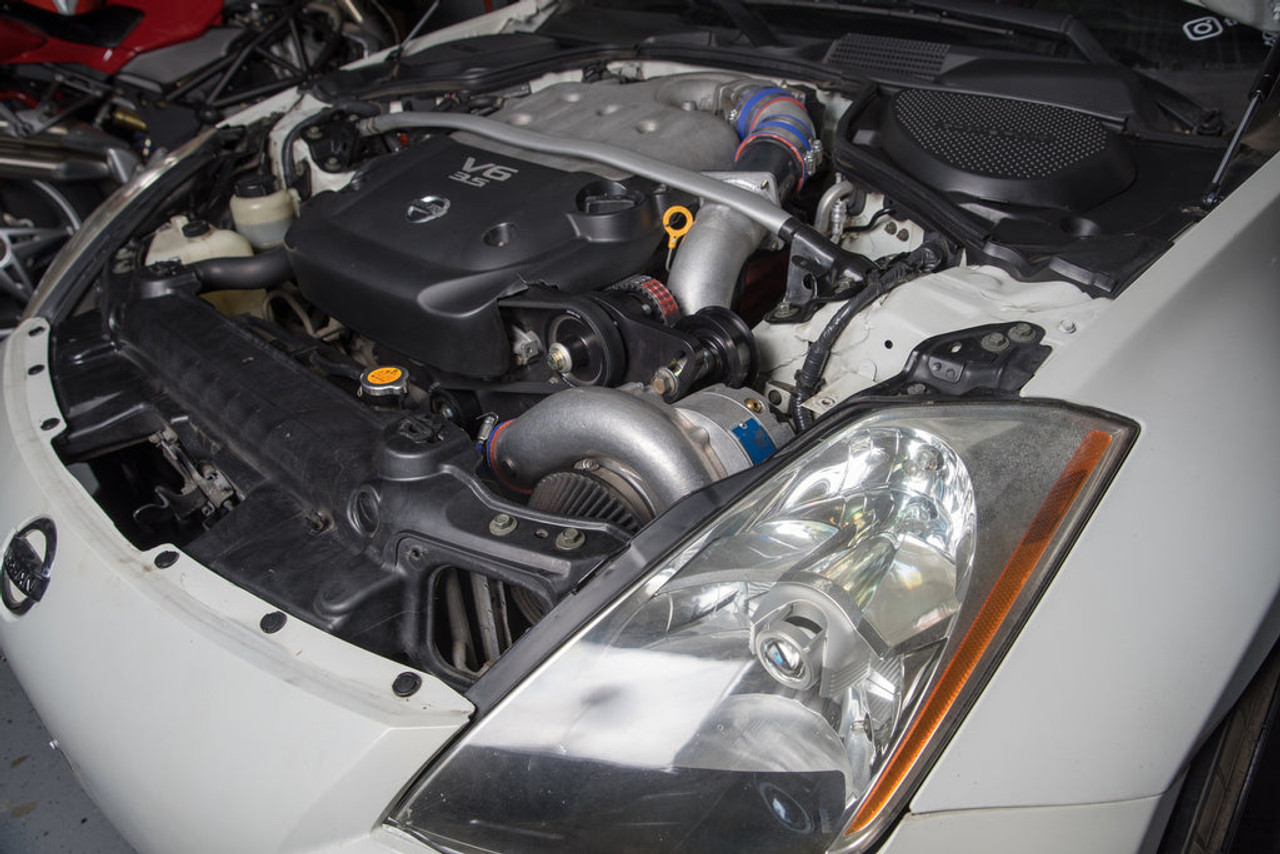

Vortech V-3 SCi-Trim Supercharger System & Charge Cooler - Satin (2005-2006 Nissan 350Z Rev-Up / Infiniti G35) 4NZ218-060L
Satin V-3 SCi-Trim Complete Supercharger System for Rev-Up 350Z & G35
The Vortech V-3 SCi-Trim Supercharger System & Charge Cooler (PN 4NZ218-060L) is a complete, fully calibrated bolt-on supercharging system engineered specifically for the 2005-2006 Nissan 350Z Rev-Up and 2005-2006 Infiniti G35 Rev-Up platforms. This satin-finish system combines Vortech's internally lubricated V-3 SCi-Trim centrifugal supercharger with an air-to-air Charge Cooler to deliver reliable, repeatable power with excellent street manners.
On stock Rev-Up applications, this system boosts output to approximately 440 horsepower and 352 lb-ft of torque with 8-9 PSI at the factory redline. The supplied calibration, timing control, and fuel management components are engineered for safe, consistent performance on 91-octane fuel.
V-3 SCi-Trim Supercharger Technology
The V-3 SCi-Trim is the refined evolution of Vortech's SC platform. The "i" stands for improved, featuring a patented oil control system and a state-of-the-art centrifugal compressor stage developed in Vortech's SAE J1723-compliant supercharger test cell. With up to 75% adiabatic efficiency, the SCi-Trim generates less heat, reduces drive losses, and produces more usable power - enhancing durability and engine safety.
All V-3 series superchargers utilize a self-contained lubrication system, eliminating the need for oil pan connections and simplifying installation and maintenance.
Air-to-Air Charge-Cooled Configuration
This system features an integrated air-to-air Charge Cooler with oversized core and optimized ducting to maximize cooling efficiency while minimizing pressure loss. Lower intake air temperatures support higher horsepower potential and consistent performance under repeated load.
Included Components & Features
- Gear-driven V-3 SCi-Trim centrifugal supercharger with SQ technology and G3 helical gear configuration
- Air-to-air Charge Cooler with oversized core and dedicated ducting
- Fuel management upgrade including high-flow fuel pump and mechanical fuel management unit (FMU)
- Stand-alone ignition timing control computer for seamless acceleration
- Billet aluminum supercharger mounting bracketry for factory-style fit and rigidity
- Maxflow Race Bypass Valve for surge-free compressor operation
- Heat-resistant silicone couplers with premium stainless steel clamps
- Reusable compact high-flow air filter
- Complete supercharger drive system with all required belts and pulleys
Performance Highlights
- Horsepower: Approximately 440 HP
- Torque: Approximately 352 lb-ft
- Boost Pressure: 8-9 PSI at factory redline
- Linear, efficient power delivery with excellent drivability
Installation Notes
- Estimated installation time: 8-12 hours
- Complete, bolt-on system with supplied calibration
- Professional installation recommended
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 4NZ218-060L
- System Type: Complete Supercharger System
- Supercharger: V-3 SCi-Trim
- Charge Cooling: Air-to-Air Charge Cooler
- Boost: 8-9 PSI
- Finish: Satin
Fitment
- 2005 Nissan 350Z Rev-Up
- 2006 Nissan 350Z Rev-Up
- 2005 Infiniti G35 Rev-Up
- 2006 Infiniti G35 Rev-Up
Emissions & Legal Compliance
- 50-State Emissions Legal
- CARB Executive Order # D-213-27 (2005-2006)
FAQs
- Is this system street legal?
Yes. This complete system is 50-state emissions legal under CARB Executive Order D-213-27 for 2005-2006 Rev-Up models. - Does this system include fuel and timing control?
Yes. The kit includes a high-flow fuel pump, mechanical FMU, and a stand-alone ignition timing control computer.
