Vortech V-3 SCi-Trim Supercharger System & Charge Cooler - Polished (2003-2004 Nissan 350Z Non Rev-Up) 4NZ218-018L

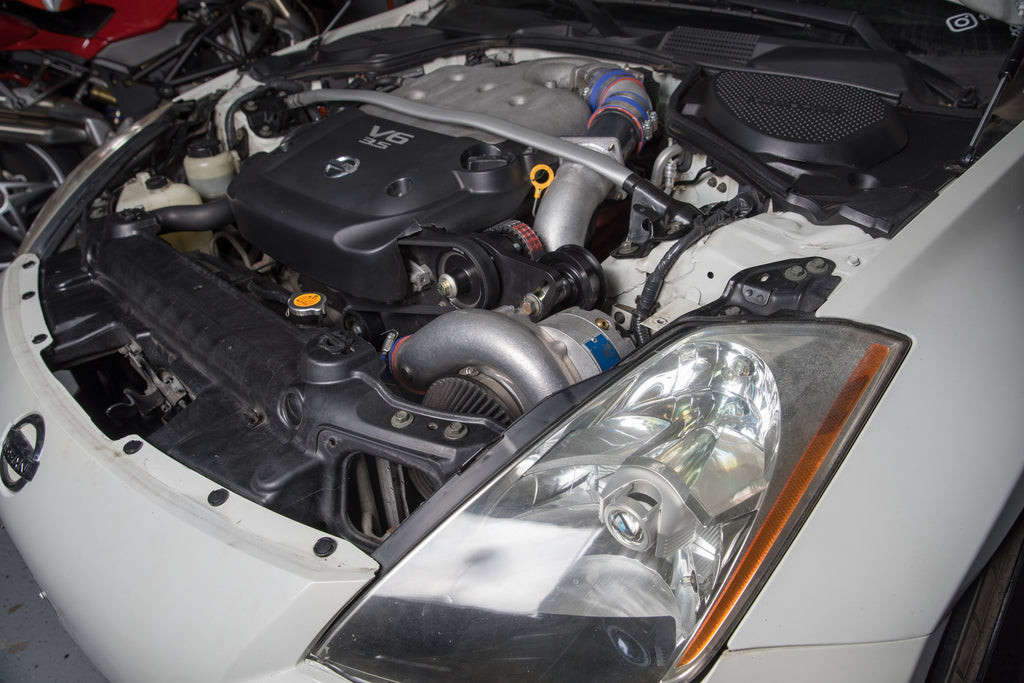

Polished V-3 SCi-Trim Complete Supercharger System for Nissan 350Z
The Vortech V-3 SCi-Trim Supercharger System & Charge Cooler (PN 4NZ218-018L) is a complete, fully calibrated bolt-on system engineered specifically for the 2003-2004 Nissan 350Z Non Rev-Up. This polished configuration pairs Vortech's internally lubricated V-3 SCi-Trim centrifugal supercharger with an air-to-air Charge Cooler to deliver consistent, efficient power with OEM-like drivability and a high-end underhood appearance.
On an otherwise stock Non Rev-Up 350Z, this system increases output to approximately 412 horsepower with 7.5-8.5 PSI at the factory redline. Vortech's centrifugal design provides strong top-end gains while remaining easier on the engine than turbocharger-based setups.
V-3 SCi-Trim Supercharger Technology
The V-3 SCi-Trim is the evolution of Vortech's proven SC platform. The "i" stands for improved, featuring a patented oil control system and a state-of-the-art centrifugal compressor stage developed in Vortech's supercharger lab. With up to 75% adiabatic efficiency (SAE J1723), the SCi-Trim generates less heat, reduces drive power, and produces more usable horsepower - translating to better durability and engine safety.
Air-to-Air Charge-Cooled Configuration
This system integrates an air-to-air Charge Cooler to lower intake air temperatures and increase charge density. The result is more consistent power delivery, improved thermal control, and headroom for future upgrades.
Included Components & Features
- Vortech gear-driven centrifugal supercharger with high-efficiency impeller and housing
- Air-to-air Charge Cooler for reduced intake air temperatures
- Fuel management upgrade including high-flow fuel pump and fuel management unit (FMU)
- Stand-alone ignition timing control computer for seamless acceleration
- Billet aluminum supercharger mounting bracket for factory-style fit and rigidity
- Maxflow Racing Bypass Valve for surge-free compressor operation
- Heat-resistant silicone couplers with premium stainless steel clamps
- Reusable high-flow air filter
- Complete supercharger drive system with all required belts and pulleys
Performance Highlights
- Horsepower: Up to 412 HP (Non Rev-Up)
- Torque: Approximately 355 lb-ft
- Boost Pressure: 7.5-8.5 PSI at factory redline
- Excellent drivability with potential for improved fuel efficiency during normal driving
Installation Notes
- Estimated installation time: 10-12 hours
- Complete, bolt-on system with supplied calibration
- Professional installation recommended
Optional & Replacement Parts
- 20mm Supercharger Pulleys: 34T, 32T, 30T, 28T
- 20mm Jackshaft Pulleys: 34T, 32T
- 6-Rib Supercharger Pulleys: 2A036-312, 2A036-287, 2A036-262 (smaller sizes may require machining)
- Hardware Kits: 4NZ100-001 (Standard), 4NZ100-002 (Rev-Up)
- Spacer Kit for standard and Rev-Up bracket configurations (hardware sold separately)
- Maxflow Billet Race Blow-Off Valve (direct replacement for included bypass valve)
Warranty Information
- 1-Year Supercharger Limited Warranty included
- Optional 3-Year Supercharger Limited Warranty available with V-3 superchargers (additional $50; street-legal systems only)
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 4NZ218-018L
- Vehicle: Nissan 350Z Non Rev-Up
- System Type: Complete Supercharger System
- Supercharger: V-3 SCi-Trim
- Charge Cooling: Air-to-Air Charge Cooler
- Boost: 7.5-8.5 PSI
- Finish: Polished
Fitment
- 2003 Nissan 350Z Non Rev-Up
- 2004 Nissan 350Z Non Rev-Up
Emissions & Legal Compliance
- 50-State Emissions Legal
- CARB Executive Order # D-213-22 (2003-2004)
FAQs
- Is this system street legal?
Yes. This complete system is 50-state emissions legal under CARB Executive Order D-213-22 for 2003-2004 models. - Can I upgrade for more power later?
Yes. Vortech offers pulley and component upgrades to increase output when you're ready.
