Vortech Supercharger System - V-3 Si-Trim - GM LS-Swap EFI Fuel - Satin (1997-2013 C5/C6 Corvette FEAD) 4GX218-130L
Satin V-3 Si-Trim LS-Swap EFI Supercharger System for C5/C6 FEAD
The Vortech Supercharger System with V-3 Si-Trim (PN 4GX218-130L) is a universal LS-swap EFI supercharging solution engineered for vehicles using LS1- or LS2-style intake manifolds paired with the C5/C6 Corvette front engine accessory drive (FEAD). Finished in durable satin, this system delivers Vortech's proven centrifugal supercharger performance for high-output street and race builds requiring flexibility and strong top-end efficiency.
Designed around the Corvette FEAD architecture, this kit provides a rigid, belt-stable mounting solution and includes the critical airflow and bypass components needed for a complete forced-induction foundation. Supporting fuel system upgrades and tuning are required to match the system to your engine combination and power goals.
V-3 Si-Trim Supercharger Technology
The included V-3 Si-Trim centrifugal supercharger features Vortech's advanced compressor design and self-contained lubrication system. Known for excellent efficiency and durability, the V-3 Si-Trim supports a wide range of street and competition LS builds while minimizing heat generation and parasitic loss.
This configuration utilizes clockwise (CW) rotation with a curved discharge and passenger-side mounting, optimized specifically for LS-swap applications using the Corvette FEAD layout.
LS-Swap / Corvette FEAD Configuration
This system is designed for fuel-injected Chevrolet LS engines using an LS1 or LS2-style intake manifold and requires a C5/C6 Corvette accessory drive equivalent to GM 19257325 or GM 19202977. Proper belt alignment also requires a compatible water pump and harmonic balancer.
The 10-rib serpentine drive system provides excellent belt grip for higher-horsepower operation while retaining multiple pulley options for boost tuning.

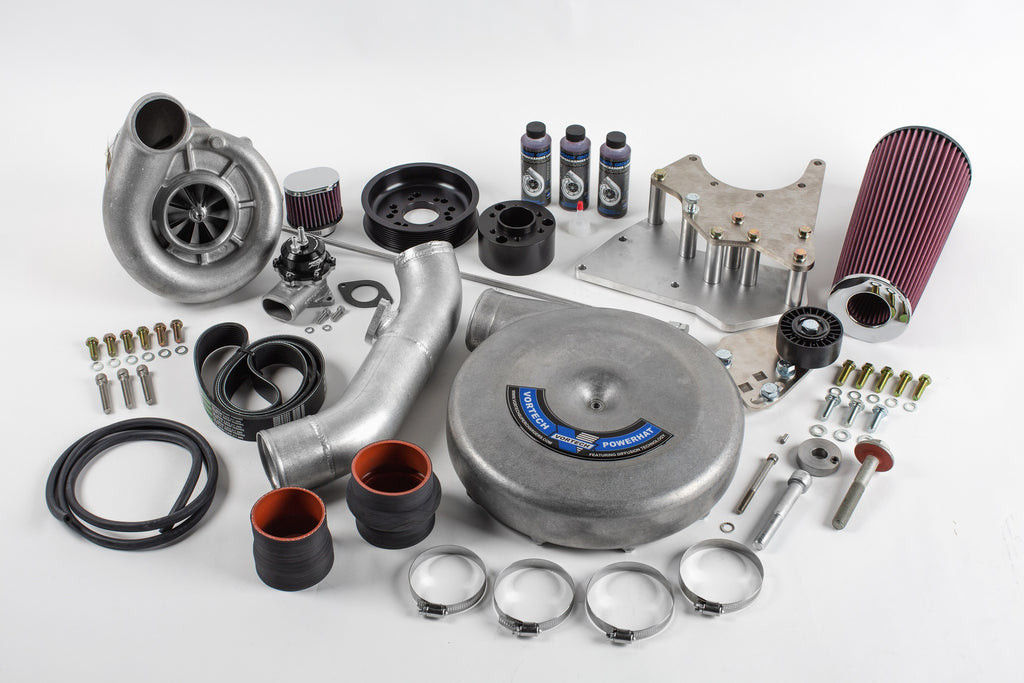

Included Components
- V-3 Si-Trim supercharger with 3.60" 10-rib pulley (CW rotation, curved discharge, passenger-side mount)
- Billet aluminum base mounting bracket with all required hardware
- 3/8" thick nickel-plated steel supercharger mounting plate
- Supercharger drive assembly
- Integrated manual belt tensioner with sealed-bearing tensioner pulley
- 10-rib supercharger drive belt
- Billet aluminum 10-rib supercharger crank pulley (6" diameter, hard-anodized)
- Crank pulley spacer compatible with Summit SUM-C2501
- High-grade mounting hardware
- Supercharger air inlet filter
- Mandrel-bent aluminum discharge tube with silicone sleeves and clamps
- Vortech Maxflow Race Bypass Valve with filter
Performance Expectations
- Boost Pressure: Approximately 8-10 PSI at 6,000 RPM (typical LS1/LS2)
- Power Gains: Approximately 30% to over 75% (engine dependent)
- Installation Time: Approximately 4-6 hours
Required Components (Not Included)
- C5/C6 Corvette accessory drive system (GM 19257325 or GM 19202977)
- ACDelco 19195105 water pump or equivalent
- Summit harmonic balancer SUM-C2501
- Boost-referenced fuel pressure regulator
- Larger fuel injectors
- High-flow fuel pump
- Custom engine calibration
Optional Pulley Components
- Vortech 2A031-347 - 10-rib supercharger pulley, 3.47"
- Vortech 2A031-333 - 10-rib supercharger pulley, 3.33"
- Vortech 2A031-312 - 10-rib supercharger pulley, 3.12"
- Vortech 4MA018-051 - 7.0" crank pulley
- Vortech 4MA018-061 - 7.8" crank pulley
Note: Alternate pulley combinations require different-length supercharger drive belts. No tuning is provided with this system.
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 4GX218-130L
- System Type: Complete LS-Swap Supercharger System
- Supercharger: V-3 Si-Trim
- Fuel Type: EFI
- Mounting: Passenger Side
- Drive System: 10-Rib Serpentine
- Finish: Satin
Fitment
- 1997 Chevrolet Corvette C5
- 1998 Chevrolet Corvette C5
- 1999 Chevrolet Corvette C5
- 2000 Chevrolet Corvette C5
- 2001 Chevrolet Corvette C5
- 2002 Chevrolet Corvette C5
- 2003 Chevrolet Corvette C5
- 2004 Chevrolet Corvette C5
- 2005 Chevrolet Corvette C6
- 2006 Chevrolet Corvette C6
- 2007 Chevrolet Corvette C6
- 2008 Chevrolet Corvette C6
- 2009 Chevrolet Corvette C6
- 2010 Chevrolet Corvette C6
- 2011 Chevrolet Corvette C6
- 2012 Chevrolet Corvette C6
- 2013 Chevrolet Corvette C6
Emissions & Legal Notice
- NOT AVAILABLE OR LEGAL FOR SALE IN CALIFORNIA
- Not CARB legal
- For off-road and competition use only
- Installation on emissions-controlled vehicles driven on public roads may violate U.S. federal emissions law
