10-Rib Supercharger Drive Upgrade for 2016-2017 Camaro SS (No ATI Balancer)
The Vortech Superchargers 10-Rib Supercharger Drive Upgrade (PN 4GT116-002) is designed for 2016-2017 Chevrolet Camaro SS owners running Vortech supercharger systems who want increased belt traction and stability without changing to an ATI crank balancer. This dedicated 10-rib configuration replaces the factory 6-rib / jackshaft drive and tensioner, providing improved grip and reliability for higher boost, aggressive pulley ratios, and sustained street or race use.
Important: This version is the No ATI Balancer configuration. It is intended for customers retaining an existing compatible crank damper and does not include the ATI balancer found in the -001 assembly.
10-Rib Drive System Benefits
- 10-rib design maximizes belt traction and stability
- Reduces belt slip under increased boost and load
- High-performance supercharger drive for street and/or race applications
- Compatible with existing 2016-2017 Camaro SS Vortech supercharger system components

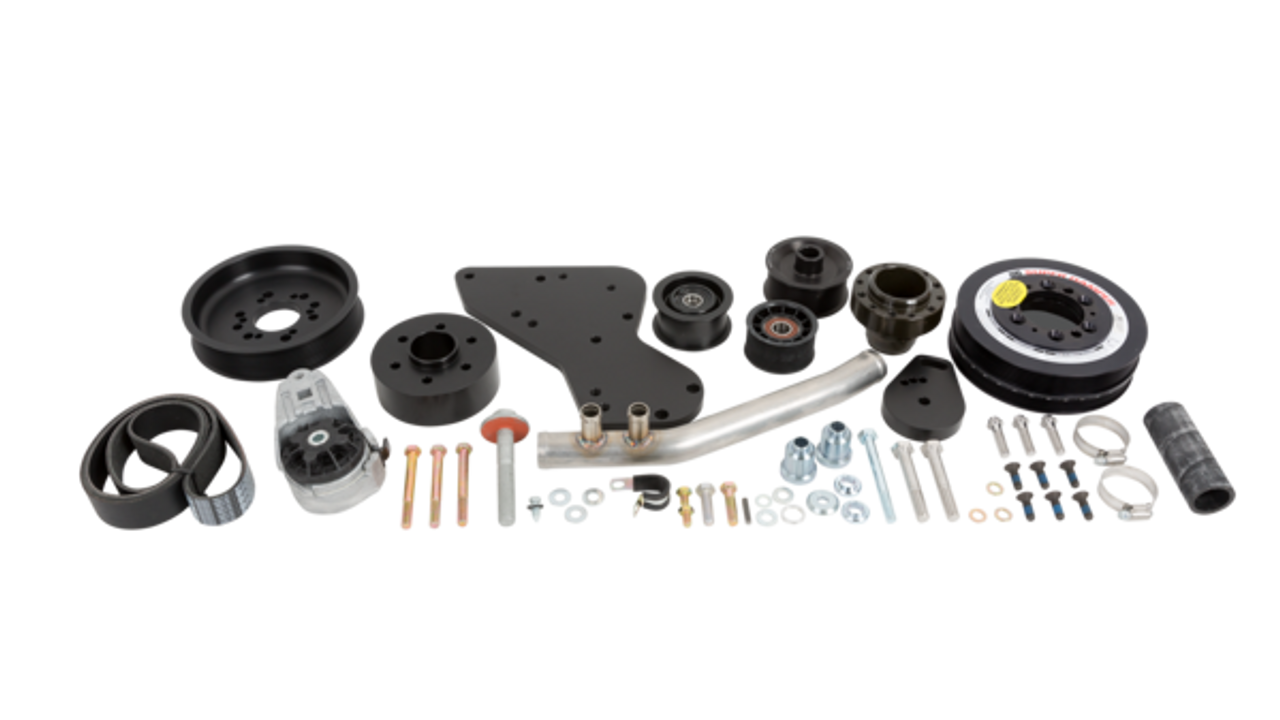

Included Components
- Hard-anodized billet aluminum 10-rib supercharger pulley (3.47")
- Hard-anodized billet aluminum 10-rib crank pulley (7.0")
- 56.8" 10-rib supercharger drive belt (PN 2A041-568)
- Multi-position automatic belt tensioner assembly
- Replacement tensioner mounting plate
- Idlers and idler spacers
- All required mounting hardware
- Stainless steel replacement radiator tube assembly
Optional Pulley Options
Supercharger Pulleys
- 2A031-333 - 3.33"
- 2A031-312 - 3.12"
- 2A031-295 - 2.95"
Crank Pulleys
- 4MA018-041 - 6.0"
- 4MA018-061 - 7.8"
Belt & Pulley Fitment Guide
- 7.80" Crank / 3.60" or 3.47" SC Pulley - Belt 2A041-579
- 7.80" Crank / 3.12" or 3.33" SC Pulley - Belt 2A041-572
- 7.80" Crank / 2.95" SC Pulley - Belt 2A041-568
- 7.00" Crank / 3.60", 3.47", or 3.33" SC Pulley - Belt 2A041-568
- 7.00" Crank / 3.12" or 2.95" SC Pulley - Gates K100554
Important Tuning & Usage Notes
- Custom ECM programming and fuel/ignition upgrades are required whenever pulley ratios are changed from the original complete-system configuration
- Pairing with any non-H/D supercharger may cause unit failure if drive ratios are not selected carefully
- Supercharger pulley removal or diameter changes may reduce or void the supercharger warranty
- Careful pulley selection is mandatory for proper impeller speed and long-term durability; contact Vortech Tech Support for impeller speed calculations if needed
- For applications exceeding 12 psig, Vortech recommends:
- Maxflow Mondo Bypass Valve
- Maxflow BV57 Valve
- Dual Maxflow Race Bypass or Race Blowoff Valves
Installation
- Estimated Installation Time: 3-6 hours
- Professional installation strongly recommended
Optional Parts & Accessories
- 10-rib supercharger pulleys (various diameters)
- 10-rib crank pulleys
- High-capacity bypass or blowoff valves
- Fuel system and ignition upgrades
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 4GT116-002
- Application: 2016-2017 Chevrolet Camaro SS
- Drive Type: 10-Rib Supercharger Drive
- Balancer: Uses existing compatible damper (ATI not included)
Emissions & Legal Notice
- NOT AVAILABLE OR LEGAL FOR SALE IN CALIFORNIA
- For off-road and competition use only
- Installation on emissions-controlled vehicles driven on public roads may violate U.S. federal emissions law
Fitment
- 2016 Chevrolet Camaro SS
- 2017 Chevrolet Camaro SS
