Vortech V-7 YSi GM LS-Swap Gen 5 Camaro Based Tuner Kit w/ 50mm Cog - Polished 4GE218-148
Polished V-7 YSi LS-Swap Tuner Supercharger System (Gen 5 Camaro FEAD)
The Vortech V-7 YSi GM LS-Swap Gen 5 Camaro Based Tuner Kit (PN 4GE218-148) is a purpose-built, driver-side-mounted supercharger system engineered for high-horsepower LS swap applications using the Gen 5 Camaro SS front engine accessory drive (FEAD). Designed for race and custom street builds, this polished tuner kit delivers Vortech's flagship V-7 YSi-Trim centrifugal supercharger paired with a 50mm cog drive for maximum belt grip and stability under extreme load.
This is a universal LS-swap platform intended for experienced builders who require flexibility in inlet, discharge, bypass, and charge cooling configuration. Due to the universal nature of the system, several airflow and fuel components are installer-supplied, allowing the kit to be tailored to the specific chassis, power target, and packaging constraints.
V-7 YSi-Trim Supercharger Technology
The V-7 YSi-Trim is Vortech's highest-capacity centrifugal supercharger, developed for extreme airflow demand and sustained high-RPM operation. Featuring an advanced compressor design and race-proven construction, the YSi is commonly used in competitive drag, roll racing, and high-output street builds where durability and top-end flow are critical.
This configuration uses clockwise (CW) rotation with a straight discharge, optimized for driver-side LS-swap installations based on the Gen 5 Camaro FEAD layout.
LS-Swap / Gen 5 Camaro FEAD Configuration
This system is based on the 2010 Camaro SS damper and accessory FEAD configuration. When paired with non-Camaro accessory drives, custom spacing may be required. The dedicated, stand-alone supercharger drive assembly ensures consistent belt alignment and reliable power delivery at high RPM.

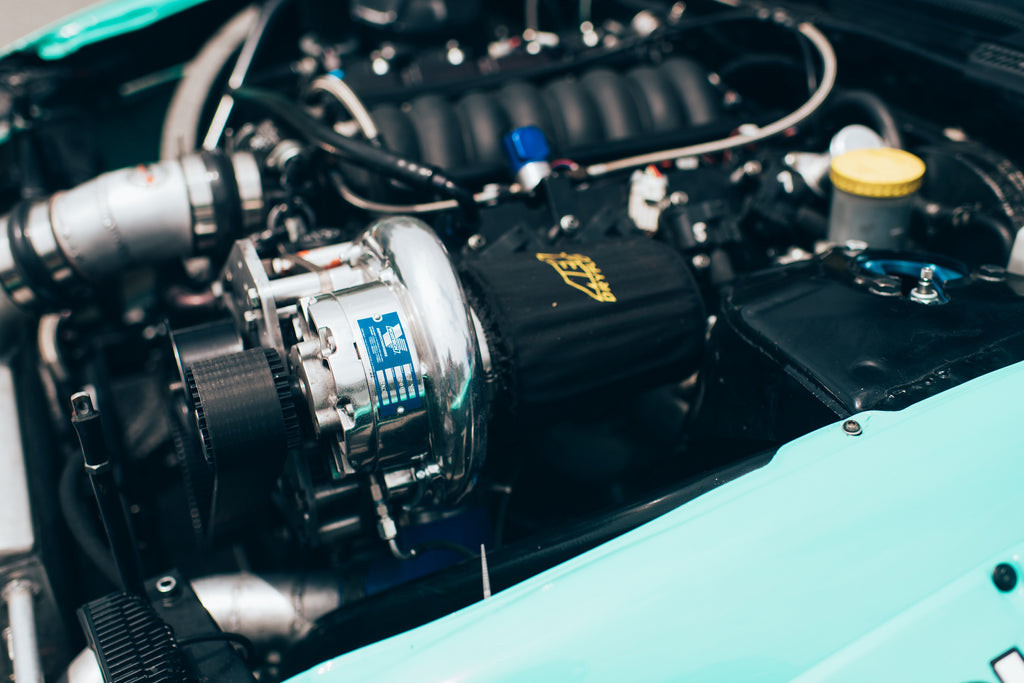

Note: Example images may depict additional components that are not included with this tuner kit.
Included Components
- V-7 YSi-Trim supercharger with 32-tooth 50mm cog pulley (CW rotation, straight discharge, driver-side mount)
- Multi-plate supercharger mounting bracket assembly with billet aluminum front and rear plates
- Laser-cut steel intermediate plate with billet aluminum spacers
- High-grade mounting hardware
- Dedicated stand-alone supercharger drive assembly
- SFI-approved steel race-spec replacement damper pulley
- Hard-anodized billet aluminum supercharger drive crank pulley (75-tooth cog)
- Manual belt tensioner (specific to 50mm cog drive system)
- Supercharger oil feed and oil drain line assemblies
Required Components (Not Included)
- Supercharger air discharge ducting
- Compressor bypass or blow-off valve
- Charge air cooler (optional but recommended)
- Supercharger air inlet ducting and air filter
- Larger fuel injectors
- High-flow fuel pump
- Custom engine calibration
Optional Pulley Components
- Vortech 2A031-380 - 10-rib supercharger pulley, 3.80"
- Vortech 2A031-370 - 10-rib supercharger pulley, 3.70"
- Vortech 2A031-360 - 10-rib supercharger pulley, 3.60"
- Vortech 2A031-347 - 10-rib supercharger pulley, 3.47"
- Vortech 2A031-333 - 10-rib supercharger pulley, 3.33"
- Vortech 2A031-312 - 10-rib supercharger pulley, 3.12"
- Vortech 4MA018-041 - 6.0" crank pulley
- Vortech 4MA018-061 - 7.8" crank pulley
Note: Alternate pulley sizes will require a different-length supercharger drive belt. No tuning is provided with this system.
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 4GE218-148
- System Type: LS-Swap Tuner Kit
- Supercharger: V-7 YSi-Trim
- Mounting: Driver Side
- Drive System: 50mm Cog
- Discharge: Straight
- Rotation: Clockwise (CW)
- Finish: Polished
Emissions & Legal Notice
- NOT AVAILABLE OR LEGAL FOR SALE IN CALIFORNIA
- Not CARB legal
- For off-road and competition use only
- Installation on emissions-controlled vehicles driven on public roads may violate U.S. federal emissions law
