Vortech Maxflow Race Blow-Off Valve Upgrade - Satin (2021-2026 F-150 5.0L) 4FV212-100
Satin Maxflow Race Blow-Off Valve Upgrade for Supercharged F-150 5.0L
The Vortech Superchargers Maxflow Race Blow-Off Valve Upgrade (PN 4FV212-100) is designed for 2021-2026 Ford F-150 5.0L supercharged applications that demand faster pressure relief and that unmistakable vent-to-atmosphere race sound between shifts. This upgrade replaces the factory charge tube with a dedicated, pre-configured tube that accepts Vortech's Maxflow Race BOV for improved response and aggressive sound characteristics.
Built for high-performance street and race use, the Maxflow Race BOV features a 360-degree discharge design and a large rolling diaphragm for rapid valve response under changing boost conditions. The result is crisp pressure release, reduced compressor stress, and a pronounced race-inspired blow-off sound.
Maxflow Race BOV Design & Function

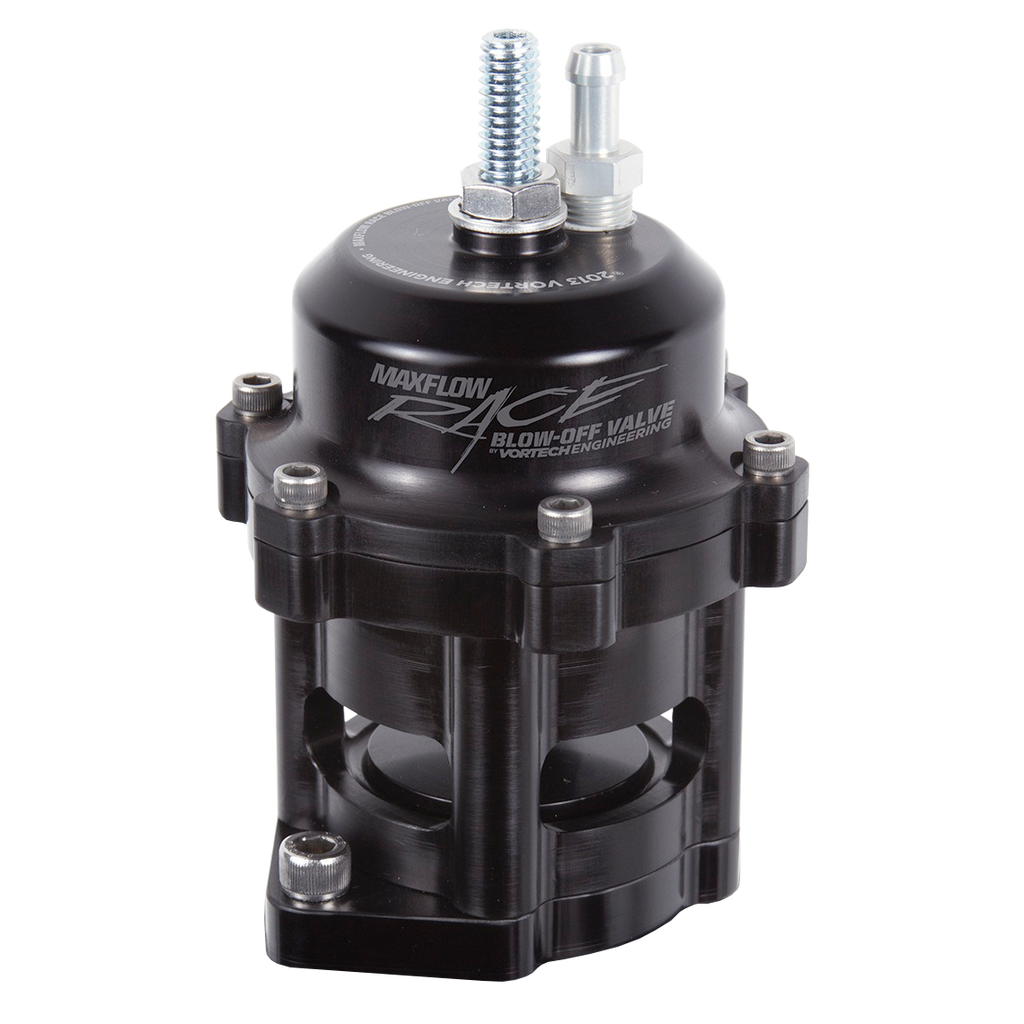

The Maxflow Race Blow-Off Valve is constructed from billet aluminum and utilizes a large diaphragm with dual vent porting to ensure quick, consistent actuation. The valve is preset from Vortech to open at 5-7 inches of vacuum, making it ideal for vent-to-atmosphere (VTA) supercharged systems that see rapid throttle transitions.
This valve uses the same mounting flange configuration as the Vortech Race Bypass Valve, including the 1.51" / 38.51mm inlet, ensuring compatibility with existing Vortech VTA-style setups.
Upgrade Components & Features
- Vortech Maxflow Race Blow-Off Valve (black finish)
- Direct replacement supercharger charge tube with pre-welded BOV flange
- 360-degree vent-to-atmosphere discharge design
- Billet aluminum valve construction
- Large rolling diaphragm with dual vent ports for fast response
- Preset valve opening range: 5-7 inHg vacuum
System Compatibility
This upgrade is intended as a direct replacement for Vortech supercharged vent-to-atmosphere (VTA) F-150 applications. The included charge tube is available in satin or black finishes, while the Maxflow Race BOV itself is supplied in black only.
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 4FV212-100
- Vehicle: Ford F-150 5.0L
- Model Years: 2021-2026
- Component Type: Race Blow-Off Valve & Charge Tube Upgrade
- Discharge Type: Vent-to-Atmosphere (VTA)
- Valve Finish: Black
- Charge Tube Finish: Satin
FAQs
- What is the difference between a race blow-off valve and a bypass valve?
A race blow-off valve vents pressurized air to atmosphere, producing a louder sound and quicker pressure release, while a bypass valve recirculates air back into the intake. - Is this a direct bolt-on upgrade?
Yes, this kit includes a direct replacement charge tube with a pre-welded flange designed specifically for Vortech supercharged F-150 VTA systems.
Fitment
- 2021 Ford F-150 5.0L
- 2022 Ford F-150 5.0L
- 2023 Ford F-150 5.0L
- 2024 Ford F-150 5.0L
- 2025 Ford F-150 5.0L
- 2026 Ford F-150 5.0L
Emissions & Legal Notice
- NOT AVAILABLE OR LEGAL FOR SALE IN CALIFORNIA
- For off-road and competition use only
- Installation on emissions-controlled vehicles driven on public roads may violate U.S. federal emissions law
