Vortech Superchargers - V-3 Si Trim High Output Complete System Satin (2007-2009 Mustang V6 4.0L) - 4FU218-740L

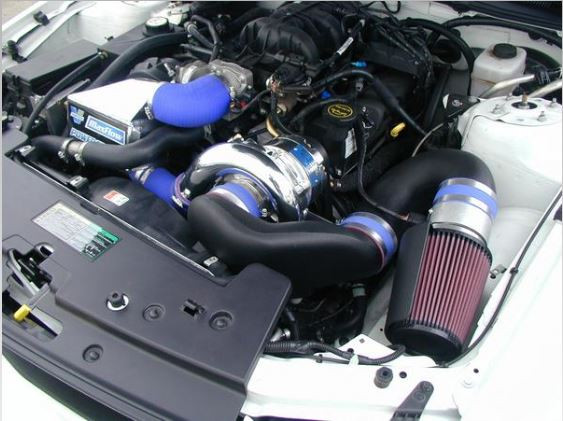

High Output Vortech V-3 Si Supercharger System for 2007-2009 Mustang V6
The Vortech V-3 Si Trim High Output Supercharger System is engineered for enthusiasts looking to extract maximum performance from the 2007-2009 Ford Mustang V6 4.0L. This system utilizes Vortech's proven centrifugal supercharger technology combined with an integrated air-to-water charge cooling system to support increased boost and consistent power delivery.
From the factory, the 4.0L Mustang V6 produces approximately 210 horsepower and 254 lb-ft of torque. In High Output configuration, this Vortech system is capable of increasing output to approximately 330 horsepower and 337 lb-ft of torque, delivering a dramatic improvement in acceleration and overall drivability.
V-3 Si Trim Centrifugal Supercharger Technology
At the heart of the system is the Vortech V-3 Si Trim supercharger finished in durable satin. The advanced Si compressor stage delivers up to 78% adiabatic efficiency (SAE J1723), reducing discharge temperatures and parasitic loss while increasing net power. The self-contained lubrication system eliminates the need for external oil lines, simplifying installation and maintenance.
High Output Air-to-Water Charge Cooling
This High Output system features a fully integrated, dual-pass air-to-water charge cooler that allows higher boost levels while maintaining stable intake air temperatures. Cooler, denser air improves detonation resistance and supports reliable power under aggressive driving conditions.
System Components & Features
- V-3 Si Trim centrifugal supercharger - satin finish
- Self-contained lubrication - no engine oil lines required
- High Output air-to-water dual-pass charge cooler
- High-efficiency impeller and housing developed in Vortech test cell
- Billet aluminum supercharger mounting bracket for rigidity and clean appearance
- Heat-resistant silicone couplers with stainless steel clamps
- High-flow bypass valve for surge-free compressor operation
- SQ gear-driven design for quiet operation and long-term reliability
Tuner Kit Configuration & Upgrade Paths
This system is configured as a high-output performance setup intended for custom-tuned applications. Tuner kits do not include fuel system upgrades or ECM calibration, allowing experienced builders or racers to select custom fueling and tuning solutions tailored to their goals.
Vortech also offers multiple supercharger options for different racing and endurance applications. For sustained high-boost operation, Vortech's V-2 engine-oil-fed superchargers can be paired with optional oil cooling and filtration.
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 4FU218-740L
- Vehicle: Mustang V6
- Engine: 4.0L V6
- Model Years: 2007, 2008, 2009
- Supercharger: V-3 Si Trim
- Finish: Satin
- Configuration: High Output, Air-to-Water Charge Cooled
- Estimated Output: Up to 330 HP / 337 lb-ft (with proper tuning)
- Lubrication: Self-contained
FAQs
Is this system CARB legal?
No. This system is NOT CARB legal. It is intended for off-road and racing use only and may not be used on public highways or emissions-controlled vehicles in California.
Does this system include tuning and fuel upgrades?
No. As a high-output tuner-style configuration, this system requires custom calibration and appropriate fuel system upgrades to safely achieve the advertised power levels.
Vehicle Fitment
- 2007 Ford Mustang V6 4.0L
- 2008 Ford Mustang V6 4.0L
- 2009 Ford Mustang V6 4.0L
