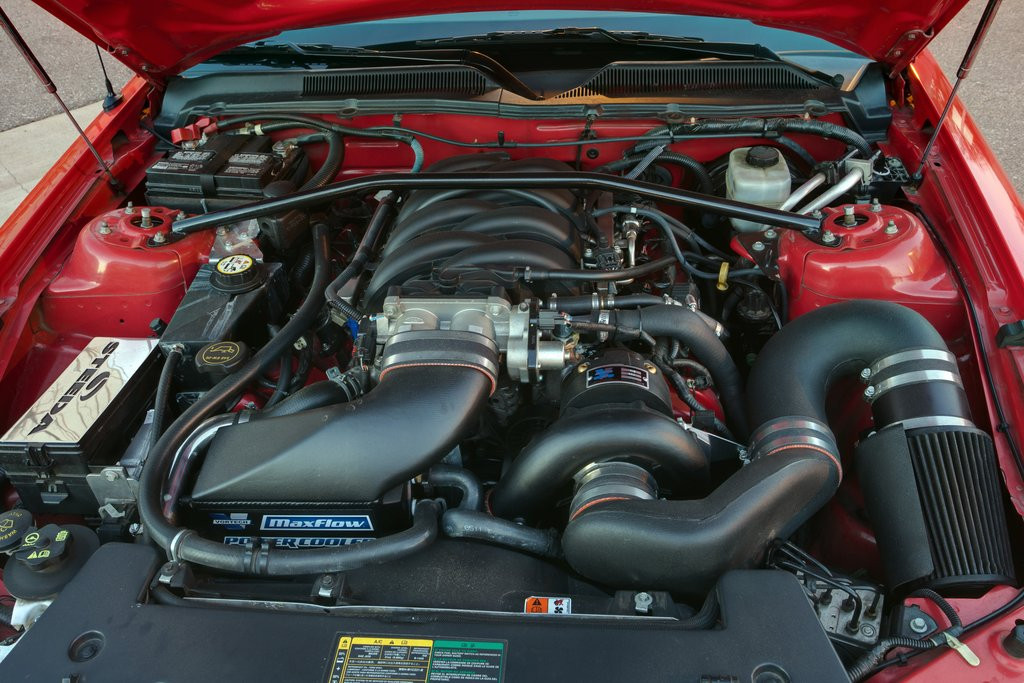

Vortech Superchargers Tuner Kit - V-2 Ti-Trim - Satin - NO Charge Cooler (2005-2006 Ford Mustang GT 4.6L 3V) 4FU218-110TSQ
Satin V-2 Ti-Trim Heavy-Duty Tuner Supercharger Kit for 2005-2006 Mustang GT
The Vortech Superchargers V-2 Ti-Trim Tuner Kit (PN 4FU218-110TSQ) is engineered for 2005-2006 Ford Mustang GT models equipped with the 4.6L 3-Valve V8. Finished in a durable satin configuration, this tuner kit features Vortech's heavy-duty Ti-Trim centrifugal supercharger, designed for high-stress, high-boost, and sustained-load applications where maximum durability is required.
This is a true tuner kit, supplied without fuel system upgrades or ECM calibration, making it ideal for professional tuners and racers who require full control over fueling, ignition timing, and boost strategy. This configuration is intended strictly for off-road and competition use.
V-2 Ti-Trim Supercharger Technology
The V-2 Ti-Trim is Vortech's heavy-duty centrifugal supercharger option for applications that demand increased strength and long-term reliability under elevated boost levels. The Ti-Trim utilizes upgraded internal components compared to Si-Trim models, making it well-suited for aggressive performance builds and competition environments.
As an oil-fed supercharger, the V-2 Ti-Trim shares the engine's lubrication system, providing enhanced cooling and oil control during extended boost operation. This design also allows for the addition of optional oil cooling or filtration upgrades when required.
Tuner Kit Configuration Explained
Vortech tuner kits include the complete supercharger assembly and mounting hardware found in complete systems, but exclude fuel injectors, fuel pumps, and ECU reprogramming. This allows builders to tailor fuel delivery and engine management to match custom engine combinations, race fuels, or elevated boost targets.
For reference, High Output complete systems for 2005-2008 Mustang GT applications are capable of boosting stock engines to approximately 462 horsepower when fully equipped and calibrated.
Included Components & Features
- V-2 Ti-Trim heavy-duty, oil-fed centrifugal supercharger
- 3.80" drive pulley (Standard Output)
- 3.60" drive pulley (High Output)
- Manifold boost pressure: 8 PSI (Std. Output), 10 PSI (High Output) @ redline on stock engine
- High-contact-ratio, precision helical gear-driven supercharger for quiet operation and durability
- High-efficiency, computer-designed impeller and housing developed in Vortech's supercharger test cell
- High-flow air inlet assembly including:
- Roto-molded intake ducting
- Silicone sleeves with stainless steel clamps
- 98mm MAF housing and high-flow air filter with heat shield
- Replacement engine coolant pipes and hose assemblies
- Billet aluminum supercharger mounting bracket with idlers, drive belt, and all mounting hardware
- Engine oil feed and oil drain assemblies for supercharger lubrication
- Heat-resistant silicone inlet and discharge connections with premium stainless steel clamps
Installation Notes
- Estimated installation time: 8-10 hours (Standard Output)
- Estimated installation time: 12-14 hours (High Output)
- Professional installation and custom tuning strongly recommended
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 4FU218-110TSQ
- Application: 2005-2006 Ford Mustang GT 4.6L 3V
- Kit Type: Tuner Kit
- Supercharger: V-2 Ti-Trim (Heavy-Duty, Oil-Fed)
- Finish: Satin
- Boost Capability: 8-10 PSI (configuration dependent)
- Charge Cooler: Not Included
Optional Parts & Accessories
- Supercharger Pulleys (6-Rib): 2A036-348, 2A036-333, 2A036-312, 2A036-287
- Supercharger Pulleys (8-Rib): 2A038-348, 2A038-333, 2A038-312, 2A038-295
- Fuel Pump Voltage Booster: 5A102-038 - Maxflow Plug-and-Play Voltage Booster Assembly
- Hardware Kit: 4FU100-001 - Spare and replacement supercharger mounting hardware
Emissions & Legal Notice
- NOT AVAILABLE OR LEGAL FOR SALE IN CALIFORNIA
- Tuner kits are NOT CARB legal
- For off-road and race-use-only vehicles
- Installation on emissions-controlled vehicles may violate U.S. federal emissions law (42 U.S.C. 7522(a)(3))
Warranty Information
- 1-Year Supercharger Limited Warranty (standard for tuner kits)
- 3-Year warranty available only when V-3 superchargers are purchased as part of complete street-legal systems
FAQs
- What is the advantage of the Ti-Trim over the Si-Trim?
The Ti-Trim uses upgraded heavy-duty internals, making it better suited for higher stress, higher boost, and sustained-load racing applications. - Does this kit include tuning or fuel system components?
No. Fuel system upgrades and ECU calibration are required and not included.
Fitment
- 2005 Ford Mustang GT 4.6L 3V
- 2006 Ford Mustang GT 4.6L 3V
