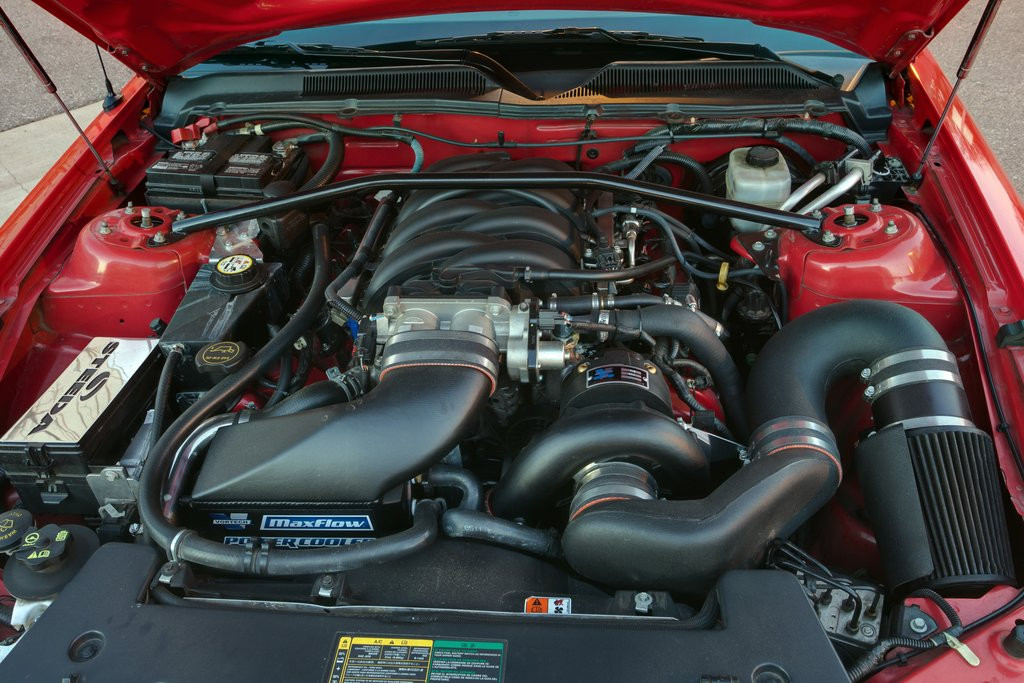

Vortech Supercharger System w/ V-3 Si-Trim - Polished w/ Charge Cooler (2007-2008 Mustang GT 4.6 3V) 4FU218-048L
Polished V-3 Si-Trim Complete Supercharger System for 2007-2008 Mustang GT
The Vortech Supercharger System with V-3 Si-Trim (PN 4FU218-048L) is a complete, fully calibrated centrifugal supercharger system engineered for 2007-2008 Ford Mustang GT models equipped with the 4.6L 3V engine. Featuring a high-visibility polished finish, this system delivers Vortech's proven V-3 Si-Trim performance combined with an integrated air-to-water Charge Cooler for consistent power under boost.
On a stock engine with the supplied calibration and 91-octane fuel, this system is capable of producing approximately 462 horsepower and 419 lb-ft of torque at the flywheel, generating up to 10 PSI of boost at factory redline depending on pulley selection.
V-3 Si-Trim Supercharger Technology
The V-3 Si-Trim centrifugal supercharger represents Vortech's most advanced street-focused design, combining a self-contained lubrication system with the high-efficiency "Si" compressor stage. With an industry-leading 78% adiabatic efficiency (SAE J1723), the V-3 Si-Trim generates less heat, requires less drive power, and produces more usable horsepower compared to lower-efficiency designs.
The self-contained oiling system eliminates external oil feed and drain lines, simplifying installation while maintaining excellent durability for street-driven performance vehicles.
Charge-Cooled Complete System Configuration
This is a true complete supercharger system, supplying the required fuel system upgrades and ECU calibration. A supplied Diablosport In-Tune handheld programmer reflashes the factory ECM with a Vortech-developed calibration optimized for 91-octane fuel, ensuring smooth drivability and reliable power delivery.
The integrated air-to-water, dual-pass Charge Cooler significantly reduces intake air temperatures under boost, helping maintain consistent horsepower during repeated acceleration, spirited street driving, or extended high-load operation.
Included Components & Features
- V-3 Si-Trim centrifugal supercharger with polished finish
- 3.80" drive pulley (standard output) or 3.60" drive pulley (high output)
- Manifold boost pressure: 8 PSI (standard) or 10 PSI (high output) @ redline on stock engine
- Diablosport In-Tune handheld programmer with Vortech calibration for 91-octane fuel
- Fuel system upgrades including high-flow fuel injectors and a 255 LPH in-tank fuel pump with harness for dual-pump configuration
- High-flow air inlet system featuring:
- Roto-molded inlet ducting
- 98mm MAF housing
- High-flow conical air filter with heat shield
- Diablosport MAF interface adapter
- Billet aluminum supercharger mounting bracket assembly with idlers, drive belt, and all required hardware
- Engine coolant pipes and hose assemblies
- Integrated air-to-water, dual-pass Charge Cooler system
Installation Notes
- Estimated installation time: 8-10 hours (standard output) or 12-14 hours (high output)
- Professional installation recommended
- Compatible with manual and automatic transmissions
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 4FU218-048L
- Application: 2007-2008 Ford Mustang GT 4.6L 3V
- System Type: Complete Supercharger System
- Supercharger: V-3 Si-Trim
- Finish: Polished
- Boost Level: Up to 10 PSI
- Output: Approx. 462 HP / 419 lb-ft torque
- Charge Cooler: Air-to-water, dual-pass
Emissions & Legal Notice
- NOT CARB LEGAL FOR MOST 2007-2008 APPLICATIONS
- 2007 systems produced after June 12, 2008 are not exempt
- 2008 systems are not CARB legal
- Legal in California only for racing vehicles that are never registered or driven on public highways
- Installation on emissions-controlled vehicles may violate U.S. federal emissions law (42 U.S.C. 7522(a)(3))
FAQs
- What makes the V-3 Si-Trim different from earlier Vortech models?
The V-3 Si-Trim features a self-contained lubrication system and a high-efficiency compressor stage that improves power output while simplifying installation. - Is the Charge Cooler required for this system?
While not strictly required, the Charge Cooler greatly improves intake air temperature control and power consistency under sustained boost.
Fitment
- 2007 Ford Mustang GT 4.6L 3V
- 2008 Ford Mustang GT 4.6L 3V
Why Buy from Beefcake Racing?
Beefcake Racing is an authorized Vortech Superchargers dealer with extensive experience supporting S197 Mustang builds. Our team provides expert guidance on system selection, installation planning, and upgrade paths to ensure your V-3 Si-Trim system delivers reliable, repeatable performance.
