Vortech V-3 Si-Trim Supercharger Complete System - Black w/Charge Cooler (2005-2006 Mustang 4.6 GT) | 4FU218-024L

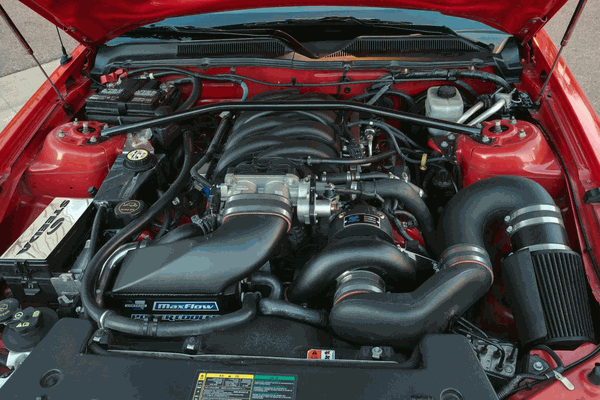

Vortech V-3 Si-Trim Complete Supercharger System for 2005-2006 Mustang GT 4.6L 3V
Vortech offers fully calibrated complete supercharging systems for the 2005-2008 4.6L 3-Valve Mustang GT, engineered for both manual and automatic transmission vehicles. This system features the highly efficient V-2 or V-3 Si-Trim centrifugal supercharger paired with an air-to-water charge cooler for consistent power delivery and reduced intake temperatures.
In high-output configuration, this system increases your stock 4.6L Mustang GT to 462 horsepower and 419 lb-ft of torque with up to 10 PSI of boost at factory redline using 91-octane fuel.
Advanced Vortech Si-Trim Technology
The 4.6L 3V Mustang GT system utilizes Vortech's V-2 or V-3 Si-Trim supercharger, developed through extensive testing in Vortech's lab. The Si-Trim features a state-of-the-art centrifugal compressor stage and delivers an industry-leading 78% adiabatic efficiency (SAE J1723), resulting in lower heat generation, reduced parasitic loss, and increased net power output.
Less heat also translates to improved durability under sustained boost conditions. Vortech centrifugal systems weigh significantly less than many competing designs, further improving performance and reliability.
Superior Centrifugal Supercharging
Centrifugal superchargers generate greater airflow and pressure than roots-type blowers while operating more efficiently. Vortech supercharger systems deliver exceptional value, producing more horsepower per dollar than virtually any other power-adding modification. Under normal driving conditions, fuel economy may even improve.
Complete System Components & Features
- V-2 or V-3 Si-Trim supercharger with 3.80-inch drive pulley (Standard Output) or 3.60-inch pulley (High Output)
- Manifold boost pressure of 8 PSI (Standard Output) or 10 PSI (High Output) at redline on stock engine
- Diablosport In-Tune handheld programmer with safe Vortech calibration for 91-octane fuel
- Fuel system upgrade including high-flow replacement fuel injectors
- 255 LPH in-tank fuel pump with harness, used alongside the OEM pump in a dual-pump configuration
Air Inlet & Charge Cooling System
- High-flow roto-molded air inlet ducting
- Silicone sleeves with stainless steel clamps
- 98mm MAF meter housing
- High-flow conical air filter with heat shield
- Diablosport MAF interface adapter for extended meter range
- Integrated air-to-water dual-pass charge cooler for high-output systems
- Engine coolant pipes and hose assemblies
Mounting & Lubrication
- Billet aluminum supercharger mounting bracket with idlers, drive belt, and all hardware
- V-3 superchargers feature a self-contained lubrication system for simplified installation
- V-2 models include oil feed and drain assemblies for sustained boost operation
Quick Specs
- Manufacturer: Vortech Superchargers
- System Type: Complete Supercharger System
- Supercharger: V-3 Si-Trim
- Finish: Black
- Charge Cooling: Air-to-Water
- Max Output: 462 HP / 419 lb-ft
- Boost: Up to 10 PSI
- Adiabatic Efficiency: 78%
- Estimated Install Time: 8-10 hrs (Std) / 12-14 hrs (High Output)
- Part Number: 4FU218-024L
Optional Parts & Accessories
- 4FU116-001 - 8-rib drive upgrade for improved belt grip and reduced slip
- 6-rib pulleys: 2A036-348, 2A036-333, 2A036-312, 2A036-287
- 8-rib pulleys: 2A038-348, 2A038-333, 2A038-312, 2A038-295
- 5A102-038 - Maxflow plug-and-play fuel pump voltage booster
- 8N105-120 - 2-gallon upgraded water tank for air-to-water charge-cooled systems
Emissions & Legal Information
CARB legality varies by model year and production date. 2005 vehicles built after April 30, 2005, and all 2006 model year vehicles are 50-State Emissions Legal under CARB Executive Order D-213-27. Some early-production 2005 models and later 2007-2010 systems are not smog legal in California and are restricted to off-road use only.
Fitment
- 2005 Ford Mustang GT 4.6L 3V
- 2006 Ford Mustang GT 4.6L 3V
