Vortech Supercharger System - V-2 Si Trim - Complete Kit Satin (2005-2006 Mustang GT 4.6L 3V) - 4FU218-010SQ
462HP Vortech V-2 Si Complete Supercharger System for S197 Mustang GT

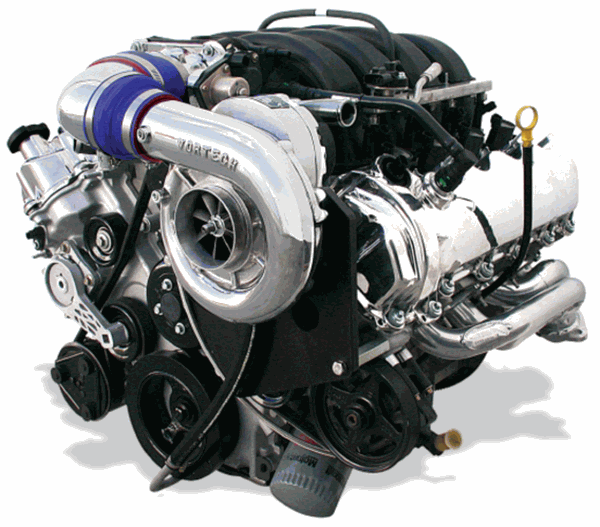

The Vortech V-2 Si Complete Supercharger System for the 2005-2006 Ford Mustang GT 4.6L 3-Valve is a fully calibrated, bolt-on forced-induction solution engineered to deliver massive gains in power, efficiency, and drivability. Designed for both manual and automatic transmission vehicles, this system increases output to 462 horsepower and 419 lb-ft of torque at the factory redline using 10 psi of boost in High Output configuration.
This S197 Mustang system utilizes Vortech's V-2 Si-Trim centrifugal supercharger, developed through extensive testing in Vortech's engineering lab. With its advanced compressor stage, the Si-Trim achieves industry-leading 78% adiabatic efficiency (SAE J1723), generating less heat, reducing parasitic loss, and producing more usable net power. Lower operating temperatures also translate directly into improved durability and long-term reliability.
Air-to-Water Charge Cooling for Maximum Consistency
High Output systems feature an integrated air-to-water, dual-pass charge cooler designed to deliver consistent intake air temperatures under sustained boost. This charge cooling configuration allows for additional horsepower gains, improved detonation resistance, and a maintenance-free design ideal for aggressive street driving or track use.
Complete System Components & Features
- V-2 Si-Trim centrifugal supercharger with 3.80" pulley (standard output) or 3.60" pulley (high output)
- Manifold boost pressure: 8 psi (standard output) / 10 psi (high output) @ redline
- Diablosport In-Tune handheld programmer with custom Vortech calibration for 91-octane fuel
- Fuel system upgrades including high-flow fuel injectors and 255 LPH in-tank fuel pump with harness for dual-pump configuration
- Integrated air-to-water dual-pass charge cooler (High Output systems)
- High-flow roto-molded inlet ducting
- 98mm MAF housing with Diablosport MAF interface adapter for extended range
- High-flow conical air filter with heat shield
- Silicone sleeves and stainless steel clamps
- Engine coolant pipes and hose assemblies
- Billet aluminum supercharger mounting bracket assembly with idlers, drive belt, and hardware
- Engine oil feed and drain assemblies for V-2 supercharger lubrication under sustained boost
Optional Upgrades & Accessories
- 8-Rib Drive Upgrade: 4FU116-001 - increases belt grip and reduces slip for high-output setups
- 6-Rib Supercharger Pulleys: 2A036-348, 2A036-333, 2A036-312, 2A036-287
- 8-Rib Supercharger Pulleys: 2A038-348, 2A038-333, 2A038-312, 2A038-295
- Fuel Pump Voltage Booster: 5A102-038 Maxflow Plug-and-Play Voltage Booster
- Water Tank Upgrade: 8N105-120 - 2-gallon reservoir for air-to-water charge cooled systems
Quick Specs
- Manufacturer: Vortech
- Part Number: 4FU218-010SQ
- Application: 2005-2006 Mustang GT 4.6L 3V
- Transmission: Manual and Automatic
- Supercharger: V-2 Si Trim
- Finish: Satin
- Boost Level: Up to 10 psi
- Output: 462 HP / 419 lb-ft torque
- Charge Cooling: Air-to-water (High Output)
- Estimated Install Time: 8-10 hours (Std) / 12-14 hours (High Output)
Frequently Asked Questions
Is this system CARB legal?
Yes, for 2005 models built after April 30, 2005 and all 2006 model year vehicles. These systems are approved under CARB Executive Order D-213-27. Earlier 2005 vehicles are off-road use only.
What is the difference between standard and high output systems?
High Output systems increase boost to 10 psi and include the air-to-water charge cooler for improved thermal control and higher power potential.
Vehicle Fitment
- 2005 Ford Mustang GT 4.6L 3V (built after April 30, 2005)
- 2006 Ford Mustang GT 4.6L 3V
