Vortech Superchargers Tuner Kit w/ V-3 JT & Air-to-Air Charge Cooler - 6-Rib Serpentine, Polished (2021-2023 Mustang 5.0 GT) 4FQ218-548JT
Polished V-3 JT-Trim Tuner Supercharger Kit for 2021-2023 Mustang GT 5.0L

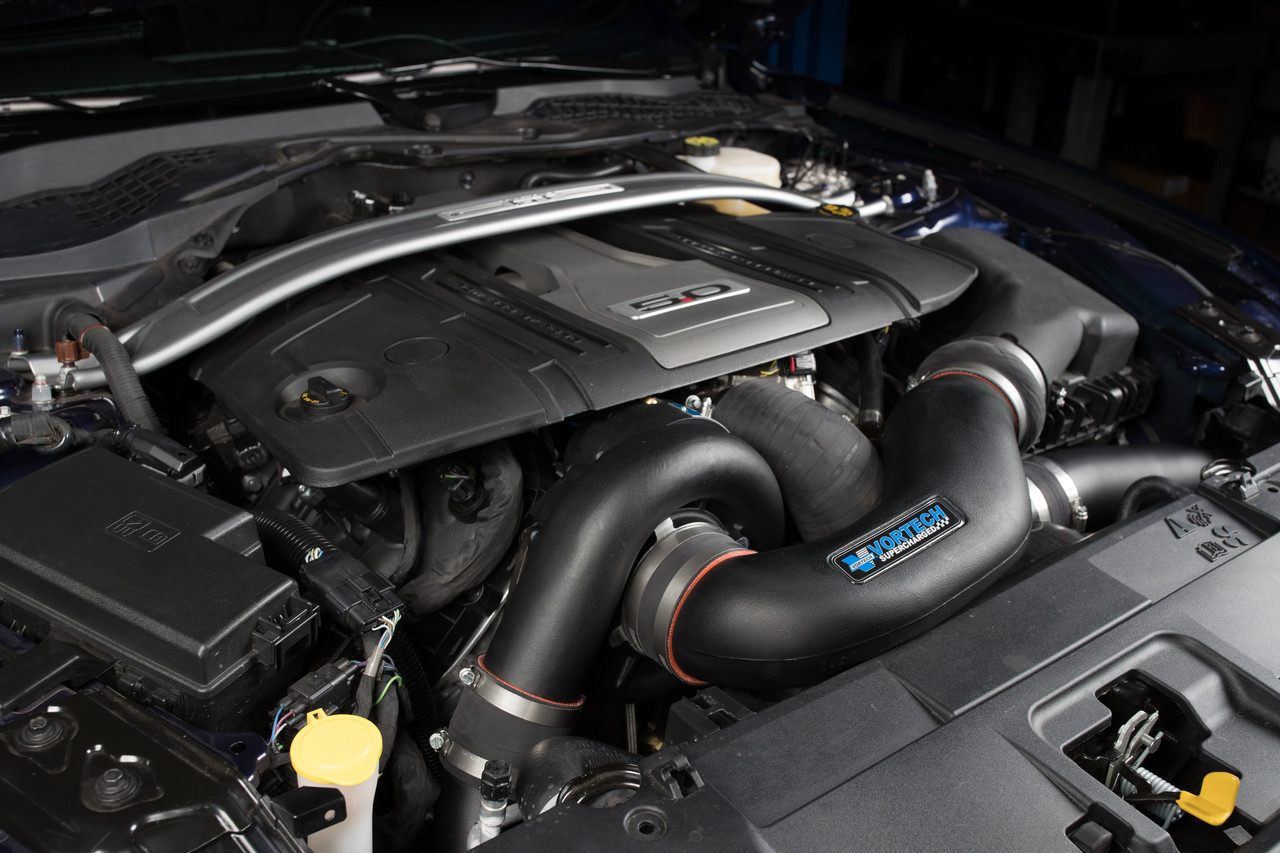

The Vortech Superchargers Tuner Kit with V-3 JT-Trim and Air-to-Air Charge Cooler (PN 4FQ218-548JT) is engineered for 2021-2023 Ford Mustang GT models equipped with the 5.0L Coyote engine. Featuring a polished finish and 6-rib serpentine drive system, this tuner kit is designed for custom-tuned, high-horsepower applications where fuel system upgrades and ECU calibration are supplied by the installer.
This system utilizes Vortech's V-3 JT-Trim centrifugal supercharger, refined through extensive development in Vortech's supercharger lab. With a patented oil control system and advanced centrifugal compressor stage, the V-3 JT achieves 76% adiabatic efficiency (SAE J1723), helping reduce heat generation, lower parasitic drive loss, and improve long-term durability. Vortech supercharger systems also weigh significantly less than many competing designs.
Tuner Kit Configuration & Power Capability
This is a tuner kit intended for higher-horsepower, custom-calibrated builds. It does not include fuel injectors, a fuel pump, or an ECU programmer. The included V-3 JT-Trim supercharger is capable of supporting up to 1,000 horsepower on properly modified engines.
For dedicated racing applications, Vortech also offers tuner kit variants utilizing the V-7 JT-B, V-7 YSi, and V-7 YSi-B superchargers, which require additional supporting modifications.
Air-to-Air Charge Cooler System
- High-flow air-to-air Charge Cooler with 24" x 13" x 3.5" core
- Mandrel-bent 3" and 3.5" aluminum charge tubes for high flow and reduced weight
- Silicone couplers and stainless steel clamps
- 98mm blow-through MAF housing with integrated air straightener
- Vortech Maxflow Race Bypass Valve with filter
Included Components & Features
- V-3 JT-Trim supercharger with 3.60" drive pulley
- Manifold boost pressure: 7.5-8.5 psig @ redline on stock engine
- High-flow roto-molded inlet ducting
- OEM replacement K&N panel air filter
- PCV and breather hose provisions
- Replacement engine coolant pipe and hose assemblies
- Replacement engine coolant reservoir assembly
- Dual-plate supercharger mounting system with idlers, drive belt, and hardware
- Multi-position idler locations for belt and pulley flexibility
Installation Notes
- Estimated installation time: 6-9 hours
- Custom ECU calibration and fuel system upgrades are required
- Vehicles equipped with adaptive cruise control may require additional modifications
Optional Parts & Accessories
- Carbon Fiber Air Inlet Duct: 4FQ012-113 - Vacuum-infused carbon fiber with UV-protected clear coat
- 8-Rib Drive Upgrade: 4FQ116-009 - Increases drive capacity by 33% and reduces belt slip (aftermarket 8-rib damper required)
- 6-Rib Supercharger Pulleys: 2A036-348, 2A036-333, 2A036-312, 2A036-287
- 8-Rib Supercharger Pulleys: 2A038-348, 2A038-333, 2A038-312, 2A038-295
- Fuel Pump Voltage Booster: 5A102-036 - Maxflow plug-and-play voltage booster assembly
Emissions & Legal Notice
- NOT AVAILABLE OR LEGAL FOR SALE IN CALIFORNIA
- Tuner kits are for off-road or competition use only
- Installation on emissions-controlled vehicles driven on public roads may violate federal emissions law
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 4FQ218-548JT
- System Type: Tuner Supercharger Kit
- Supercharger: V-3 JT-Trim
- Drive System: 6-Rib Serpentine
- Charge Cooling: Air-to-Air Charge Cooler
- Finish: Polished
- Horsepower Capability: Up to 1,000 HP (modified engines)
Fitment
- 2021 Ford Mustang GT 5.0
- 2022 Ford Mustang GT 5.0
- 2023 Ford Mustang GT 5.0
