Vortech V-7 JT-B Supercharger Tuner Kit - Black (2018-2023 Mustang GT) 4FQ218-434JTB
Black V-7 JT-B Tuner Supercharger Kit for 2018-2023 5.0 Mustang GT

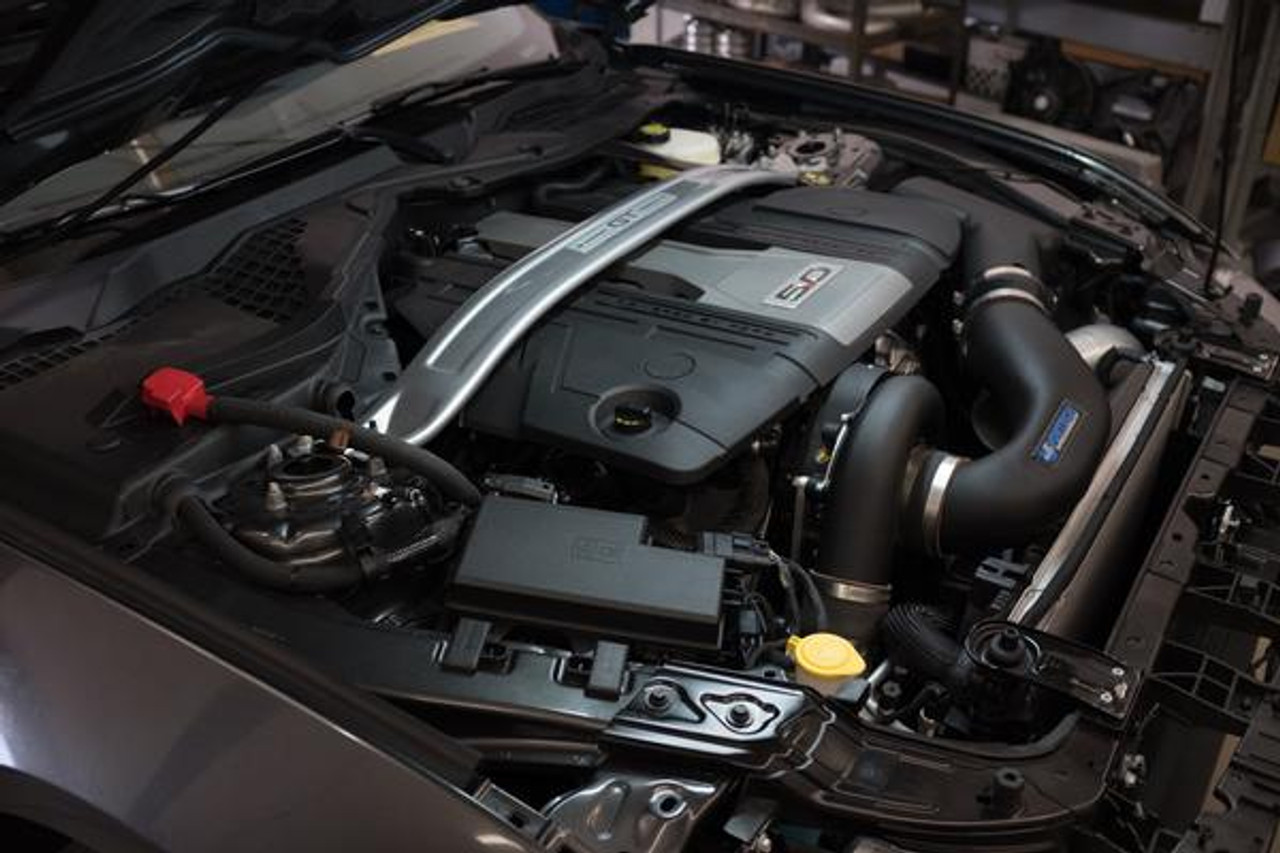

The Vortech V-7 JT-B Supercharger Tuner Kit (PN 4FQ218-434JTB) is engineered for 2018-2023 Ford Mustang GT 5.0L owners building high-output Coyote combinations who want full control over fueling and calibration. Centered around the Vortech V-7 JT-B centrifugal supercharger in a durable black finish, this tuner kit provides the airflow and headroom required for aggressive street/strip and competition-focused builds.
As a true tuner kit, this system does not include a fuel pump, fuel injectors, or ECU programmer. This allows experienced builders and tuners to select the exact fuel system and custom calibration needed to support higher boost levels and power targets.
V-7 JT-B Supercharger Capability
- V-7 JT-B centrifugal supercharger designed for high-flow, high-horsepower applications
- Ideal for modified engines targeting substantial power increases
- Proven Vortech gear-driven design for durability under sustained boost
- Tuner kit platform intended for custom fuel and tuning strategies
Included Components & Features
- V-7 JT-B supercharger (black finish)
- Manifold boost pressure: 7.5-8.5 psig @ redline on stock engine
- Air inlet assembly engineered to mate with the OEM airbox and select aftermarket "CAI" MAF/inlet assemblies
- High-flow roto-molded inlet ducting
- OEM replacement K&N panel filter
- Silicone sleeves and reducers
- Premium stainless steel clamps
- PCV and breather hose provisions
- Replacement engine coolant pipe and hose assemblies
- Engine coolant reservoir replacement assembly
- Dual-plate supercharger mounting system with idlers, drive belt, and all required hardware
- Mount features multiple-position idler locations for a wide range of belt and pulley combinations
Air-to-Air Charge Cooler & Discharge Hardware
- High-flow air-to-air charge cooler with a 24" x 13" x 3.5" cooler core
- Mandrel-bent 3" and 3.5" aluminum charge tubes for maximum airflow and reduced weight
- Silicone sleeves with stainless steel clamps
- 98mm MAF housing configured for blow-through operation
- Integrated air-straightener upstream of the MAF housing
- Vortech Maxflow Race Bypass Valve with filter
Tuner Kit Notes
- Designed for higher-horsepower, custom-tuned installations
- Does not include: fuel pump, fuel injectors, or ECU programmer
- Custom calibration and fuel system components must be supplied separately
Installation
- Estimated installation time: 6-9 hours
- Important: Vehicles equipped with adaptive cruise control may require additional modifications for proper fitment
Optional Parts & Accessories
- Carbon Fiber Air Inlet Duct: 4FQ012-113
- 8-Rib Drive Upgrade: 4FQ116-009 (aftermarket 8-rib damper pulley required; sold separately)
- 6-Rib supercharger pulleys: 2A036-348, 2A036-333, 2A036-312, 2A036-287
- 8-Rib supercharger pulleys: 2A038-348, 2A038-333, 2A038-312, 2A038-295
- Fuel Pump Voltage Booster: 5A102-036 (plug-and-play)
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 4FQ218-434JTB
- Vehicle: Ford Mustang GT
- Engine: 5.0L Coyote
- System Type: Tuner Supercharger Kit
- Supercharger: V-7 JT-B
- Charge Cooling: Air-to-Air Charge Cooler
- Charge Cooler Core: 24" x 13" x 3.5"
- MAF Housing: 98mm blow-through with air-straightener
- Boost (stock engine): 7.5-8.5 psig @ redline
- Finish: Black
CARB Compliance
- NOT AVAILABLE OR LEGAL FOR SALE IN CALIFORNIA
- Tuner kits are for racing vehicles only and may never be used, registered, or licensed for highway use.
- Installation on emissions-controlled vehicles driven on public roads may violate federal emissions law (42 U.S.C. 7522(A)(3)).
Fitment
- 2018 Ford Mustang GT 5.0L
- 2019 Ford Mustang GT 5.0L
- 2020 Ford Mustang GT 5.0L
- 2021 Ford Mustang GT 5.0L
- 2022 Ford Mustang GT 5.0L
- 2023 Ford Mustang GT 5.0L
Why Buy from Beefcake Racing?
Beefcake Racing is an authorized Vortech Superchargers dealer with extensive experience supporting high-horsepower Coyote builds. From pulley and belt-drive selection to fuel system planning and tuning support, we help you spec the right parts the first time.
