Vortech V-3 JT Supercharger Tuner Kit Black 6-Rib Serpentine Drive (20182020 Mustang GT 5.0L) | 4FQ218-334JT

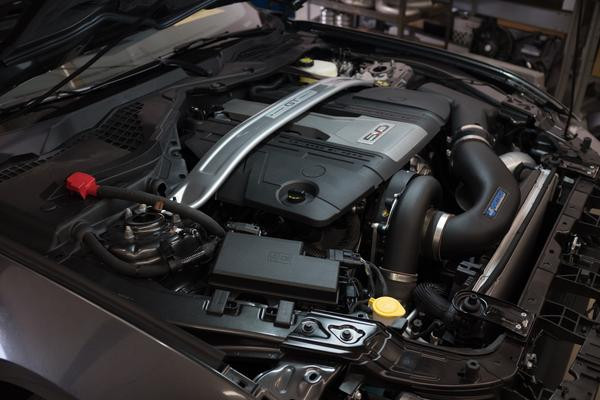

Vortech V-3 JT-Trim Intercooled Tuner Supercharger Kit for 20182020 Mustang GT
The 2018+ 5.0L Mustang GT platform utilizes Vortechs V-3 JT-Trim centrifugal supercharger. Continued development in Vortechs lab resulted in the V-3 JT-Trim, incorporating a patented oil control system and a state-of-the-art centrifugal compressor stage engineered to deliver outstanding airflow, efficiency, and durability.
With an industry-leading 76% adiabatic efficiency (SAE J1723), the V-3 JT-Trim generates less heat, reduces drive power requirements, and produces more usable horsepower. Lower operating temperatures also contribute to improved long-term reliability under demanding performance conditions.
Tuner Kit Configuration
This system is supplied as a tuner kit intended for higher-horsepower, custom-tuned installations. Tuner kits do not include a fuel pump, fuel injectors, or ECU programmer. Custom calibration and required fuel system components must be supplied by the installer.
The V-3 JT-Trim supercharger included with this kit is capable of supporting up to 1,000 horsepower on modified vehicles. Additional tuner kit configurations are available with larger superchargers for extreme high-horsepower racing applications.
Superior Vortech Technology
Centrifugal superchargers generate more pressure and airflow than roots-type blowers while operating more efficiently. Vortech supercharger systems deliver exceptional value, offering more horsepower per dollar than virtually any other upgrade method. Under normal driving conditions, fuel economy may even improve.
Included Components & Features
- V-3 JT-Trim compressor with 3.60-inch drive pulley
- Manifold boost pressure of 7.58.5 psig at redline on stock engine
Air Inlet Assembly Includes
- High-flow roto-molded ducting compatible with OEM airbox and select aftermarket CAI systems
- OEM replacement K&N panel filter
- Silicone sleeves and reducers
- Stainless steel clamps
- PCV and breather hose provisions
- Replacement engine coolant pipe and hose assemblies
- Replacement engine coolant reservoir assembly
Mounting & Drive System
- Dual-plate supercharger mounting system
- Includes idlers, drive belt, and all required hardware
- Multiple-position idler locations for wide belt and pulley fitment flexibility
- 6-rib serpentine drive configuration
Discharge Components
- High-flow air-to-air charge cooler with 24 x 13 x 3.5-inch core
- Mandrel-bent 3-inch and 3.5-inch aluminum charge tubes for high flow and minimal weight
- Stainless steel clamps
- Silicone sleeves
- 98mm blow-through MAF housing with integrated air straightener
- Vortech Maxflow Race bypass valve with filter
Installation Notes
Estimated installation time is 69 hours. Vehicles equipped with adaptive cruise control may require additional modifications for proper fitment.
Quick Specs
- Manufacturer: Vortech Superchargers
- System Type: Intercooled Tuner Supercharger Kit
- Supercharger: V-3 JT-Trim
- Finish: Black
- Drive Type: 6-Rib Serpentine
- Charge Cooling: Air-to-Air
- Horsepower Capability: Up to 1,000 HP (with supporting mods)
- Adiabatic Efficiency: 76%
- Emissions: NOT CARB legal
- Estimated Install Time: 69 hours
- Part Number: 4FQ218-334JT
Optional Parts & Accessories
- 4FQ012-113 Carbon fiber air inlet duct with UV-protected clear coat
- 4FQ116-009 8-rib drive upgrade (aftermarket 8-rib crank damper pulley required and not included)
- 6-rib pulleys: 2A036-348, 2A036-333, 2A036-312, 2A036-287
- 8-rib pulleys: 2A038-348, 2A038-333, 2A038-312, 2A038-295
- 5A102-036 Maxflow plug-and-play fuel pump voltage booster
Emissions & Legal Notice
This tuner kit is NOT CARB legal and is legal in California only for racing vehicles which may never be used, registered, or licensed for highway use. Installation of this product on a vehicle driven on public roads may violate U.S. federal emissions law.
Fitment
- 2018 Ford Mustang GT 5.0L
- 2019 Ford Mustang GT 5.0L
- 2020 Ford Mustang GT 5.0L
