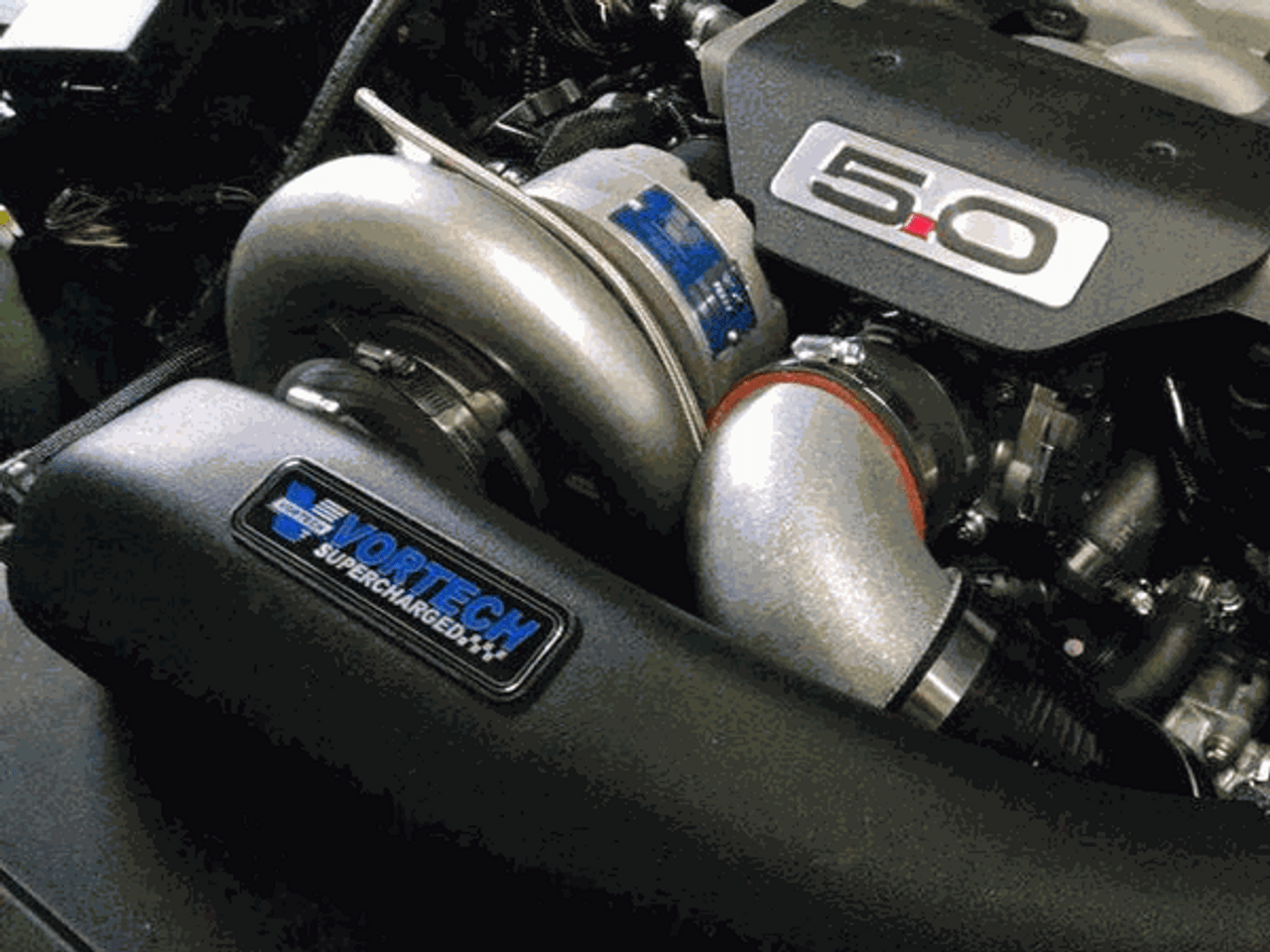

Vortech Supercharger Tuner Kit - V-3 Si Trim Satin w/ Air-to-Air Charge Cooler (2015-2017 Mustang GT 5.0L) - 4FQ218-160L
Vortech V-3 Si Tuner Kit with Air-to-Air Charge Cooling for S550 Mustang GT
The Vortech V-3 Si Tuner Kit for the 2015-2017 Ford Mustang GT 5.0L (S550) is designed for enthusiasts building a custom, higher-output combination that requires upgraded fueling and custom calibration. This kit centers around Vortech's V-3 Si-Trim centrifugal supercharger and includes an air-to-air charge cooler, delivering excellent thermal control while allowing flexibility in component selection and tuning strategy.
Continued development in Vortech's engineering lab produced the V-3 Si, where the "i" stands for improved. With a patented oil control system and a state-of-the-art centrifugal compressor stage, the V-3 Si achieves industry-leading 78% adiabatic efficiency (SAE J1723). Higher efficiency means less heat generation, reduced parasitic drive loss, more usable net power, and improved durability. Vortech supercharger systems also weigh significantly less than many competing designs.
Air-to-Air Charge Cooling Benefits
This tuner kit includes a high-flow air-to-air charge cooler designed to maintain lower intake air temperatures under boost. Cooler, denser air improves power consistency, raises detonation resistance, and supports higher boost levels on properly modified engines.
Tuner Kit Configuration Notes
- Tuner kits do not include fuel pump upgrades, fuel injectors, or an ECU programmer
- Custom fuel system components and calibration are required
- The included V-3 Si-Trim is capable of up to 775 HP on modified vehicles
- Competition tuner options are available with the V-7 JT-Trim for racing applications
Included Components & Features
- V-3 Si-Trim centrifugal supercharger with 3.60" drive pulley
- Manifold boost pressure: 7.5-8.5 psig at redline on stock engine (V-3 Si)
- High-flow air-to-air charge cooler: 24" x 13" x 3.5" core
- Mandrel-bent 3" and 3.5" aluminum charge tubing for high flow and reduced weight
- 98mm blow-through MAF housing with integrated air straightener
- Vortech Maxflow Race bypass valve with filter
- High-flow roto-molded inlet ducting compatible with OEM airbox and select aftermarket CAI systems
- OEM replacement K&N panel air filter
- Silicone sleeves, reducers, and stainless steel clamps
- PCV and breather hose provisions
- Replacement engine coolant pipe, hoses, and coolant reservoir assembly
- Dual-plate supercharger mounting system with idlers, drive belt, and all required hardware
Optional Upgrades & Accessories
- Competition Air Inlet Assembly: 4FQ112-060 - sealed airbox with oversized K&N filter; adds 20-40 HP
- Carbon Fiber Air Inlet Duct: 4FQ012-113 - vacuum-infused carbon fiber with UV-protected clear coat
- 8-Rib Drive Upgrade: 4FQ116-003 - increases belt grip and reduces slip for higher-output builds
- 6-Rib Supercharger Pulleys: 2A036-348, 2A036-333, 2A036-312, 2A036-287
- 8-Rib Supercharger Pulleys: 2A038-348, 2A038-333, 2A038-312, 2A038-295
- Fuel Pump Voltage Booster: 5A102-036 Maxflow Plug-and-Play Voltage Booster
Quick Specs
- Manufacturer: Vortech
- Part Number: 4FQ218-160L
- Application: 2015-2017 Mustang GT 5.0L
- Supercharger: V-3 Si Trim
- Finish: Satin
- Boost Level: 7.5-8.5 psi (varies with configuration)
- Charge Cooling: Air-to-air
- System Type: Tuner supercharger kit
- Estimated Install Time: 6-9 hours
- Emissions: NOT CARB legal - off-road/racing use only
- Warranty: 1-Year Limited (3-Year optional only with complete street-legal V-3 systems)
Frequently Asked Questions
Is this tuner kit legal for street use?
No. This tuner kit is NOT CARB legal and is intended for off-road or racing vehicles only. It is not legal for use on public roads or highways.
What additional parts are required to run this tuner kit?
Appropriate fuel system upgrades and a custom ECU calibration are required. The tuner kit allows you to select components that best match your horsepower goals.
Vehicle Fitment
- 2015 Ford Mustang GT 5.0L
- 2016 Ford Mustang GT 5.0L
- 2017 Ford Mustang GT 5.0L
