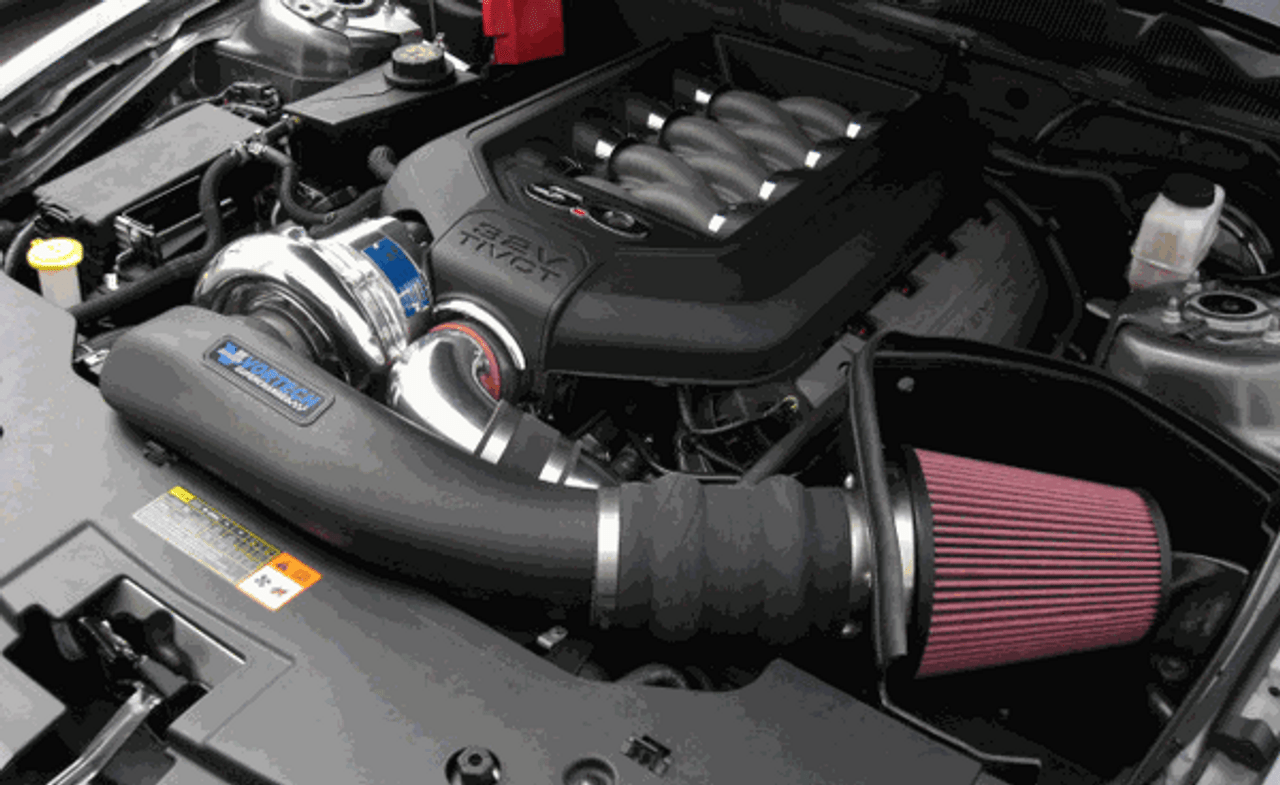

Vortech Tuner Kit - V-7 JT-Trim - 8-Rib Comp Inlet - Polished (2011-2014 Mustang 5.0L) 4FQ218-128JT
Polished V-7 JT-Trim Competition Tuner Supercharger Kit for Coyote Mustang
The Vortech Superchargers Tuner Kit with V-7 JT-Trim (PN 4FQ218-128JT) is a race-focused centrifugal supercharger system engineered for 2011-2014 Ford Mustang GT 5.0L applications demanding maximum airflow and horsepower potential. This configuration features Vortech's V-7 JT-Trim supercharger, an 8-rib drive system, a competition air inlet, and a high-visibility polished finish.
Designed for experienced builders and professional tuners, this tuner kit provides the hardware foundation required for extreme Coyote builds where custom fuel systems and calibration are mandatory.
V-7 JT-Trim Supercharger Technology
The V-7 JT-Trim is Vortech's highest-flow centrifugal compressor, capable of supporting up to 1,000 horsepower on properly modified engines. It is designed for sustained high-RPM, high-boost operation and is commonly used in competition, drag racing, and extreme street/strip applications.
This supercharger utilizes an engine oil-fed lubrication system, providing superior cooling and durability compared to self-contained units when operating under continuous heavy load.
8-Rib Drive & Competition Air Inlet Configuration
This kit is equipped with an 8-rib supercharger drive, allowing approximately 33% more drive capacity than a 6-rib system. The increased belt contact area reduces slip, improves belt life, and maintains consistent supercharger speed at elevated boost levels.
The competition air inlet is designed to minimize restriction and support the extreme airflow demands of the V-7 JT-Trim compressor.
Included Components & Features
- Vortech V-7 JT-Trim centrifugal supercharger with 3.60" drive pulley
- 8-rib supercharger drive system
- High-flow competition air inlet assembly
- Dual-plate supercharger mounting system with idlers, belt, and hardware
- High-flow air-to-air charge cooler with 24" x 13" x 3.5" core
- Mandrel-bent 3" aluminum charge tubing
- 98mm blow-through MAF housing with integrated air straightener
- Vortech Maxflow Race bypass valve with filter
- Silicone couplers, stainless clamps, and PCV/breather provisions
- Replacement engine coolant pipe, hoses, and coolant reservoir assembly
Tuner Kit Configuration Explained
This is a tuner kit and does not include fuel injectors, fuel system upgrades, or ECU calibration. These components must be supplied and calibrated by the installer, allowing maximum flexibility for high-boost and non-standard engine combinations.
Installation Notes
- Estimated installation time: 6-9 hours
- Professional installation and custom tuning strongly recommended
- Does not clear fog lights on California Special models without modification
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 4FQ218-128JT
- Application: 2011-2014 Mustang GT 5.0L
- Kit Type: Tuner Kit
- Supercharger: V-7 JT-Trim
- Drive System: 8-Rib
- Inlet Type: Competition Air Inlet
- Finish: Polished
- Cooling: Air-to-air charge cooler
- Power Capability: Up to 1,000 HP with proper engine modifications
Emissions & Legal Notice
- NOT AVAILABLE OR LEGAL FOR SALE IN CALIFORNIA
- Not CARB legal; for off-road and race-use-only vehicles
- Installation on emissions-controlled vehicles may violate U.S. federal emissions law (42 U.S.C. 7522(a)(3))
Warranty Information
- 1-Year Limited Warranty applies to tuner kits
- 3-Year warranty available only with V-3 superchargers in complete street-legal systems
FAQs
- What is the advantage of the polished finish?
The polished finish provides a high-visibility, show-quality appearance while retaining the same performance characteristics as satin-finished units. - Is this system street legal?
No. This tuner kit is not CARB compliant and is intended strictly for off-road and racing applications.
Fitment
- 2011 Ford Mustang GT 5.0L
- 2012 Ford Mustang GT 5.0L
- 2013 Ford Mustang GT 5.0L
- 2014 Ford Mustang GT 5.0L
