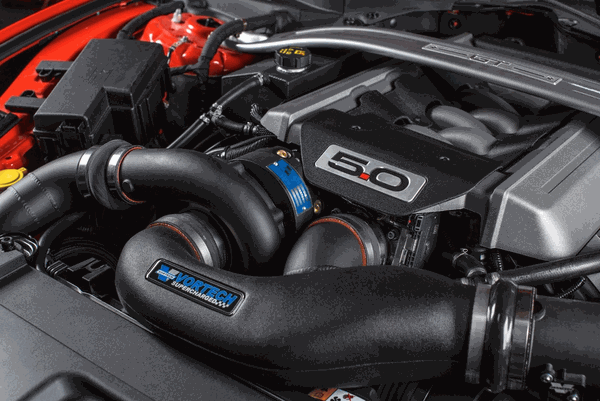

Vortech Supercharger Complete Kit V-3 Si-Trim - Black w/Air-to-Air Charge Cooler (2015-2017 Mustang GT) | 4FQ218-064L
Vortech V-3 Si-Trim Intercooled Supercharger Kit for 2015-2017 Mustang GT
The Vortech V-3 Si-Trim Complete Intercooled Supercharger System is a fully calibrated, 50-state emissions-legal forced-induction upgrade engineered for the 2015-2017 Ford Mustang GT. Designed for both manual and automatic transmission vehicles, this complete system features an efficient air-to-air charge cooler and delivers massive power gains while maintaining excellent street drivability.
This system boosts a stock 2015-2017 Mustang GT to 630 horsepower and 483 lb-ft of torque at the factory redline with 7.5-8.5 PSI from the V-3 Si-Trim centrifugal supercharger using 91-octane fuel. Continued development in Vortech's lab resulted in the V-3 Si platform, where the "i" stands for improved, incorporating a patented oil control system and an advanced centrifugal compressor stage that delivers superior efficiency and durability.
Vortech Supercharger Technology
The V-3 Si-Trim delivers 78% adiabatic efficiency (SAE J1723), meaning less heat is generated, drive power is reduced, and more net power is produced. Reduced heat improves durability and consistency under boost. Vortech centrifugal supercharger systems also weigh less than half of many competing designs while delivering superior airflow and pressure capability.
Complete System Included Components & Features
- V-3 Si-Trim centrifugal supercharger with 3.60-inch drive pulley
- Manifold boost pressure of 7.5-8.5 psig at redline on stock engine
- SCT programmer with safe, custom Vortech ECM calibration for 91-octane fuel
- Fuel system upgrade including fuel rail spacers and high-flow replacement fuel injectors
Air Inlet Assembly Includes
- High-flow roto-molded ducting compatible with OEM airbox and select aftermarket CAI systems
- OEM replacement K&N panel filter
- Silicone sleeves and reducers
- Stainless steel clamps
- PCV and breather hose provisions
- Replacement engine coolant pipe and hose assemblies
- Replacement engine coolant reservoir assembly
Mounting & Drive System
- Dual-plate supercharger mounting system
- Includes idlers, drive belt, and all required hardware
- Multiple-position idler locations for wide belt and pulley fitment range
Discharge Components
- High-flow air-to-air charge cooler with 24 x 13 x 3.5-inch core
- Mandrel-bent 3-inch and 3.5-inch aluminum charge tubes for high flow and minimal weight
- Stainless steel clamps
- Silicone sleeves
- 98mm blow-through MAF housing with integrated air straightener
- Vortech Maxflow Race bypass valve with filter
Additional Kit Options
For higher-horsepower, custom-tuned installations, Vortech offers tuner kits that do not include a fuel pump, fuel injectors, or ECU programmer. These require custom calibration and fuel system components supplied by the installer. The V-3 Si-Trim supercharger included with tuner kits is capable of up to 775 horsepower on modified vehicles. Tuner kits are also available with the 1,000 HP V-7 JT-Trim supercharger for high-performance racing applications.
Available Supercharger Finishes
Multiple kit finishes are available. For a fully integrated appearance, S550 Mustang systems are offered in factory-matching black finish. Satin and polished finishes are also available.
Quick Specs
- Manufacturer: Vortech Superchargers
- System Type: Complete Intercooled Supercharger Kit
- Supercharger: V-3 Si-Trim
- Finish: Black
- Charge Cooling: Air-to-Air
- Boost Level: 7.5-8.5 psig
- Rated Output: 630 HP / 483 lb-ft
- Fuel Requirement: 91-octane
- Emissions: 50-State CARB Legal
- CARB EO: D-213-36
- Transmission: Manual & Automatic
- Estimated Install Time: 6-9 hours
- Part Number: 4FQ218-064L
Optional Parts & Accessories
- 4FQ116-003 - 8-rib drive upgrade; increases drive capacity and reduces belt slip
- 6-rib pulleys: 2A036-348, 2A036-333, 2A036-312, 2A036-287
- 8-rib pulleys: 2A038-348, 2A038-333, 2A038-312, 2A038-295
- 5A102-036 - Maxflow plug-and-play fuel pump voltage booster
Warranty Information
- Optional 3-year supercharger limited warranty available with complete V-3 street-legal systems
- Tuner kits are eligible for a 1-year warranty
Fitment
- 2015 Ford Mustang GT
- 2016 Ford Mustang GT
- 2017 Ford Mustang GT
