Vortech Superchargers Complete Kit V-3 Si-Trim - Polished w/Air-to-Air Charge Cooler (2011-2014 Mustang 5.0) | 4FQ218-028L

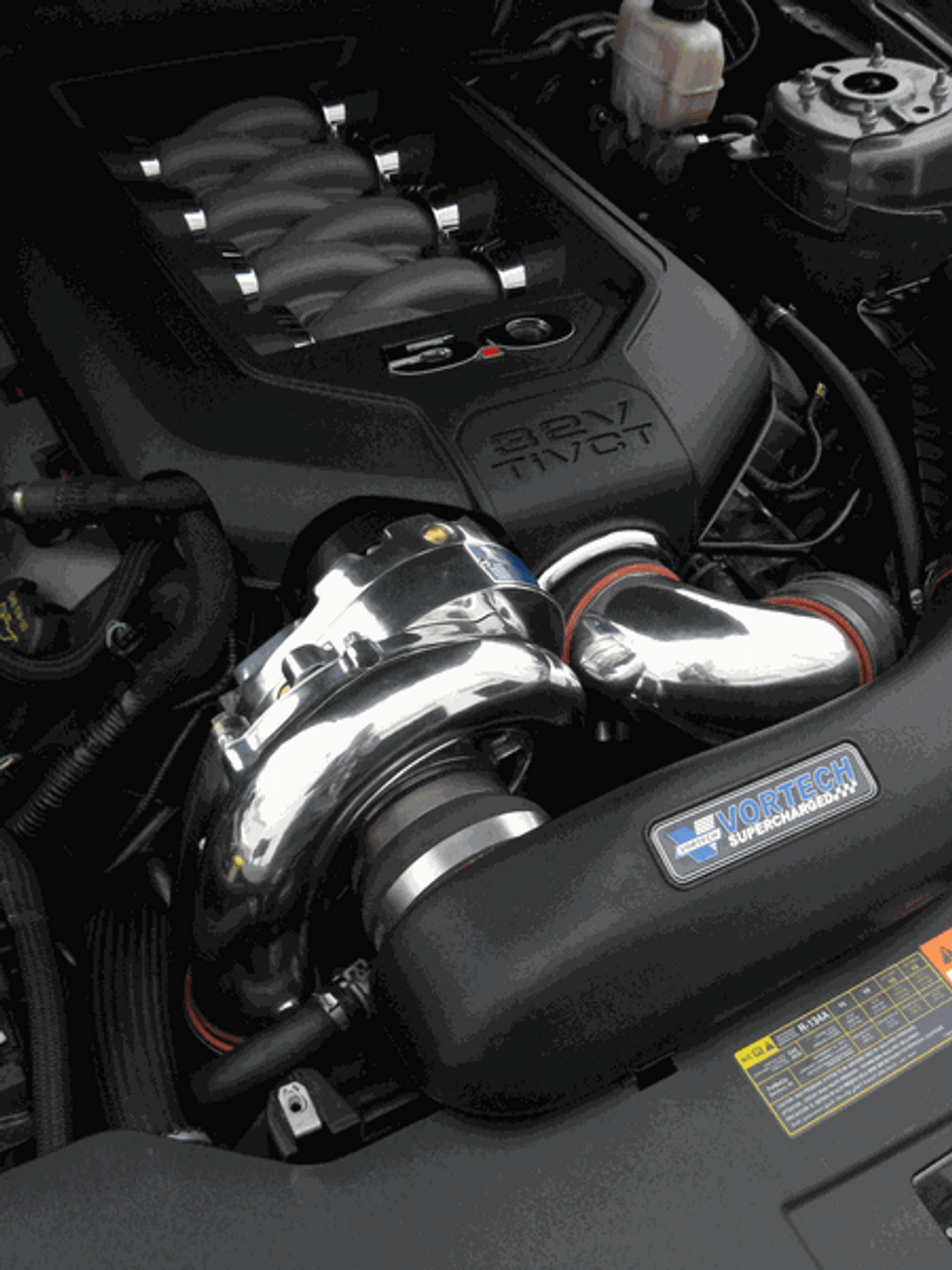

Vortech V-3 Si-Trim Intercooled Supercharger Kit for 2011-2014 Mustang 5.0
The Vortech V-3 Si-Trim Complete Intercooled Supercharger System is a fully calibrated, 50-state emissions-legal forced-induction upgrade designed specifically for 2011-2014 Ford Mustang 5.0 GT manual-transmission vehicles. This complete system features a high-efficiency air-to-air charge cooler and delivers massive, repeatable power while maintaining excellent street drivability.
This system boosts a stock 2011-2014 Mustang GT to 605 horsepower and 483 lb-ft of torque at the factory redline with 7.5 PSI from the V-3 Si-Trim centrifugal supercharger. The V-3 Si-Trim represents continued development from Vortech's lab, incorporating a patented oil control system and a state-of-the-art centrifugal compressor stage for improved efficiency, durability, and power output.
Note: This supercharger system will not clear fog lights on California Special models. Fog lights must be removed or custom discharge tubing must be obtained.
Vortech Supercharger Technology
The V-3 Si-Trim delivers 78% adiabatic efficiency (SAE J1723), meaning less heat is generated, drive power is reduced, and more net power is produced. Reduced heat improves durability and consistency under boost. Vortech centrifugal supercharger systems also weigh less than half of many competing designs while delivering superior airflow and pressure capability.
Complete System Components & Features
- V-3 Si-Trim centrifugal supercharger with 3.60-inch drive pulley
- Manifold boost pressure of 7.5-8.5 psig at redline on stock engine
- SCT programmer with safe, custom Vortech ECM calibration for 91-octane fuel
- Fuel system upgrade including fuel rail spacers and high-flow replacement fuel injectors
- High-flow air-to-air charge cooler with 24 x 13 x 3.5-inch core
- Mandrel-bent 3-inch aluminum charge tubing for high flow and minimal weight
- 98mm blow-through MAF housing with integrated air straightener
- Vortech Maxflow Race bypass valve with filter
Air Inlet Assembly Includes
- High-flow roto-molded ducting compatible with OEM airbox and select aftermarket CAI systems
- OEM replacement K&N panel filter
- Silicone sleeves and reducers
- Stainless steel clamps
- PCV and breather hose provisions
- Replacement engine coolant pipe and hose assemblies
- Replacement engine coolant reservoir assembly
Mounting & Drive System
- Dual-plate supercharger mounting system
- Includes idlers, drive belt, and all required hardware
- Multiple-position idler locations for wide pulley and belt fitment range
Quick Specs
- Manufacturer: Vortech Superchargers
- System Type: Complete Intercooled Supercharger Kit
- Supercharger: V-3 Si-Trim
- Finish: Polished
- Charge Cooling: Air-to-Air
- Boost Level: 7.5-8.5 psig
- Rated Output: 605 HP / 483 lb-ft
- Fuel Requirement: 91-octane
- Emissions: 50-State CARB Legal
- CARB EO: D-213-33
- Transmission: Manual Only
- Estimated Install Time: 8-10 hours
- Part Number: 4FQ218-028L
Optional Parts & Accessories
- 4FQ112-060 - Competition air inlet assembly with oversized K&N filter; adds 20-40 HP
- 4FQ012-013 - Carbon fiber air inlet duct
- 4FQ116-001 - 8-rib drive upgrade for 2011-2012 Mustang 5.0 (4-bolt water pump pulley)
- 4FQ116-003 - 8-rib drive upgrade for 2013-2017 Mustang 5.0 (3-bolt water pump pulley)
- 6-rib pulleys: 2A036-348, 2A036-333, 2A036-312, 2A036-287
- 8-rib pulleys: 2A038-348, 2A038-333, 2A038-312, 2A038-295
- 5A102-037 - Maxflow plug-and-play fuel pump voltage booster
Warranty Information
- Optional 3-year supercharger limited warranty available with complete V-3 street-legal systems
- Tuner kits are eligible for a 1-year warranty
Fitment
- 2011 Ford Mustang 5.0 GT - Manual Transmission
- 2012 Ford Mustang 5.0 GT - Manual Transmission
- 2013 Ford Mustang 5.0 GT - Manual Transmission
- 2014 Ford Mustang 5.0 GT - Manual Transmission
