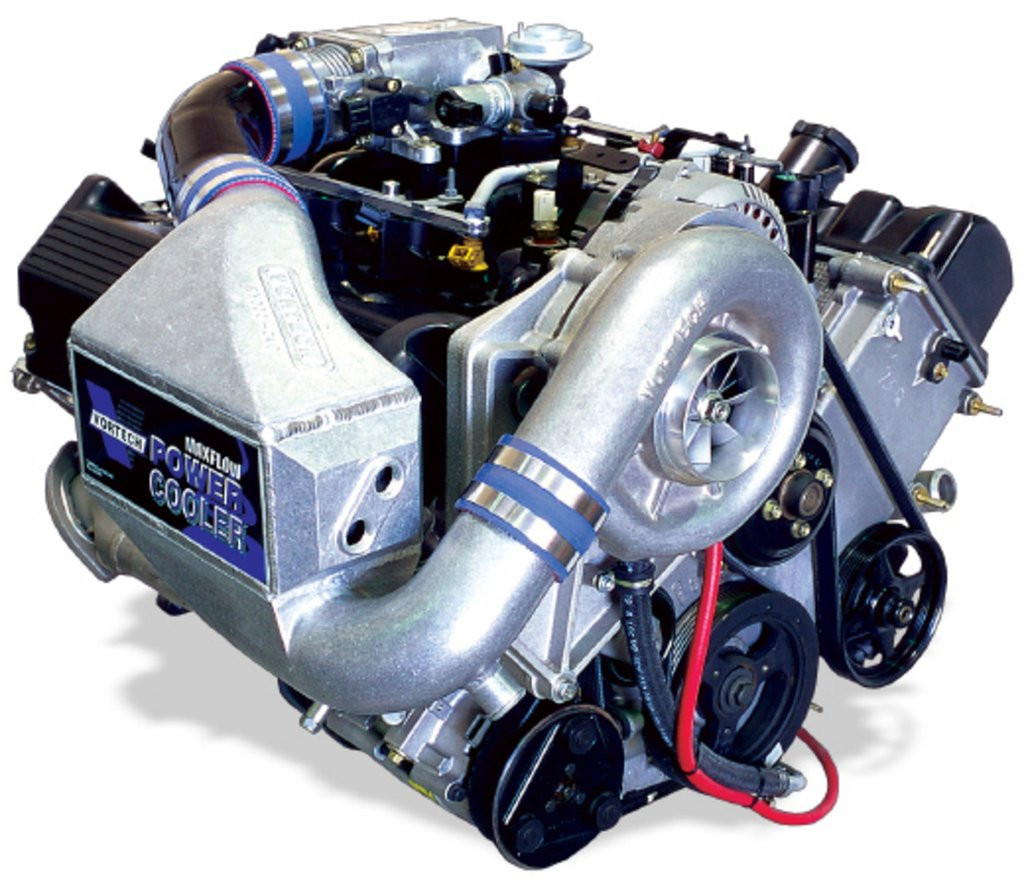

Vortech Supercharging System w/ V-2 Si-Trim - Satin - No Charge Cooler (2000-2004 Mustang GT 4.6L 2V) 4FL218-130SQ
Satin V-2 Si-Trim Complete Supercharger System for 2000-2004 Mustang GT
The Vortech Superchargers Complete Supercharging System with V-2 Si-Trim (PN 4FL218-130SQ) is a CARB-approved centrifugal supercharger package engineered specifically for 2000-2004 Ford Mustang GT models equipped with the 4.6L 2-valve engine. This system features a durable satin finish and is configured without a charge cooler, making it an excellent choice for enthusiasts seeking proven power gains with factory-like drivability and emissions compliance.
On a stock engine combination with supported ECU calibration, Vortech lists safe gains increasing output from 260 horsepower to 402 horsepower and torque from 302 lb-ft to 400 lb-ft. Power delivery is smooth and linear, characteristic of Vortech's centrifugal design, providing strong top-end performance while maintaining street manners.
V-2 Si-Trim Supercharger Technology
The system is built around the V-2 Si-Trim centrifugal supercharger, an engine oil-fed head unit utilizing Vortech's proven SQ (Super Quiet) gear-driven technology. The high-efficiency impeller and housing design - developed in Vortech's supercharger test cell - delivers excellent airflow, strong efficiency, and long-term durability under sustained boost.
Dedicated oil feed and oil drain assemblies are included to ensure consistent lubrication and cooling, making the V-2 Si-Trim a trusted option for street-driven and street/strip Mustang applications.
Complete System Configuration
This is a complete supercharger system, meaning it includes the required fuel system upgrades and ECM calibration necessary for operation on a stock engine with stock exhaust or most aftermarket cat-back exhaust systems. Vortech supplies tuning support for stock configurations only.
Important: Vehicles equipped with additional modifications such as aftermarket throttle bodies, cold air intakes, headers, or off-road mid-pipes may require custom tuning. Not all ECU box codes are supported - Vortech recommends verifying ECU compatibility prior to purchase.
Performance & Reliability Features
- V-2 Si-Trim centrifugal supercharger with engine oil feed and drain
- Vortech SQ gear-driven technology for nearly silent operation
- High-efficiency impeller and housing developed in Vortech's supercharger test cell
- Fuel management upgrade including high-flow fuel pump, high-capacity fuel injectors, and ECM chip
- Heat-resistant silicone inlet and discharge sleeves
- Premium stainless steel clamps
- OEM-type aluminum supercharger mounting bracket for factory-installed appearance and rigidity
- High-flow bypass valve for surge-free compressor operation
Installation Notes
- Professional installation recommended
- System is designed for stock engines with supported ECU box codes
- Modified vehicles may require custom tuning
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 4FL218-130SQ
- Application: 2000-2004 Ford Mustang GT 4.6L 2V
- Kit Type: Complete Supercharger System
- Supercharger: V-2 Si-Trim
- Lubrication: Engine oil-fed
- Finish: Satin
- Charge Cooling: None (non-charge-cooled system)
- Advertised Output Change: 260 HP to 402 HP
- Advertised Torque Change: 302 lb-ft to 400 lb-ft
- CARB EO Number: D-213-27
- Hardware Kit: 4FL100-001 (spare/replacement mounting hardware)
CARB & Emissions Compliance
- CARB-compliant complete system
- Approved by the California Air Resources Board
- CARB Executive Order: D-213-27
FAQs
- Is this system street legal?
Yes. This is a CARB-approved complete system when installed on a stock engine with supported ECU calibration. - Can this system be used on modified engines?
Vortech only supplies tuning for stock engine configurations. Modified vehicles will require custom tuning.
Fitment
- 2000 Ford Mustang GT 4.6L 2V
- 2001 Ford Mustang GT 4.6L 2V
- 2002 Ford Mustang GT 4.6L 2V
- 2003 Ford Mustang GT 4.6L 2V
- 2004 Ford Mustang GT 4.6L 2V
Why Buy from Beefcake Racing?
Beefcake Racing is an authorized Vortech Superchargers dealer with extensive experience supporting street-driven and high-performance Mustang builds. We can help verify ECU compatibility, guide you on supporting modifications, and ensure your V-2 Si-Trim system delivers the power, reliability, and drivability you expect.
