Vortech Supercharging System w/ V-3 Si-Trim - Satin - No Charge Cooler (2000-2004 Mustang GT 4.6L 2V) 4FL218-130L

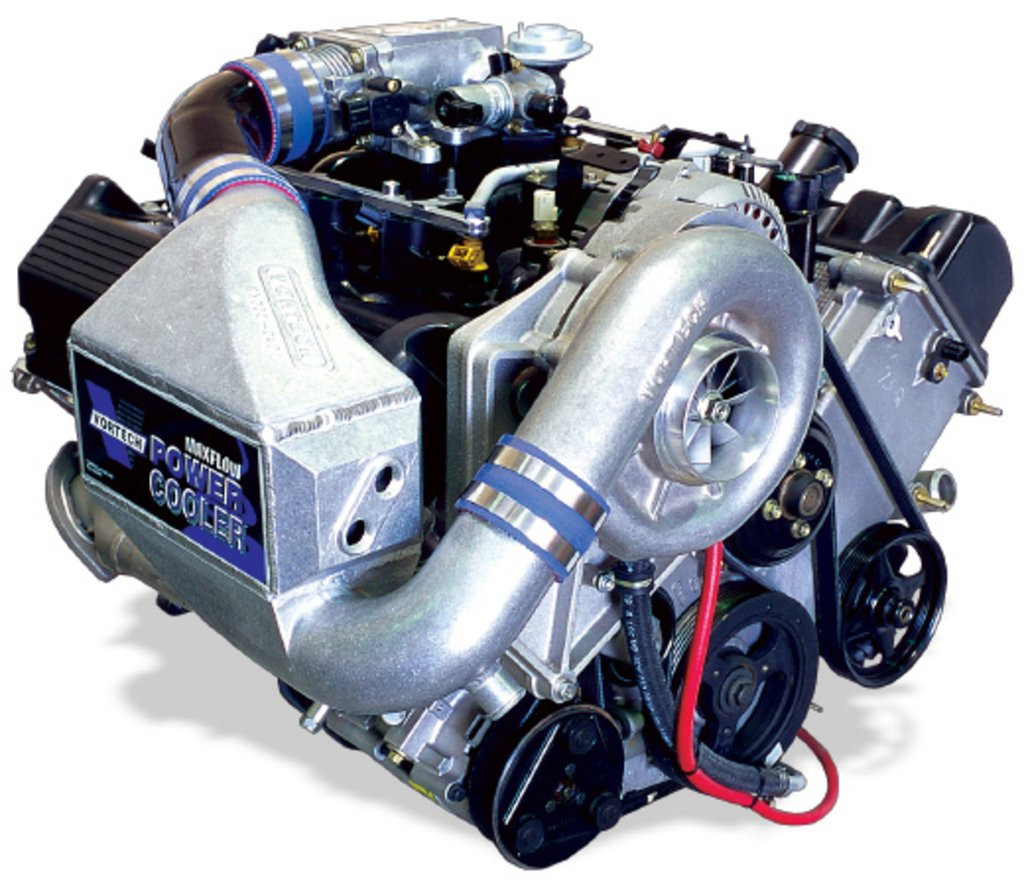

Satin V-3 Si-Trim Complete Supercharger System for 2000-2004 Mustang GT
The Vortech Superchargers Complete Supercharging System with V-3 Si-Trim (PN 4FL218-130L) is a CARB-compliant centrifugal supercharger package engineered specifically for 2000-2004 Ford Mustang GT models equipped with the 4.6L 2-valve engine. Finished in a durable satin housing, this system delivers reliable, repeatable power gains while retaining excellent street manners and emissions compliance.
On a stock engine combination with supported ECU calibration, Vortech lists safe gains increasing output from 260 horsepower to 402 horsepower and torque from 302 lb-ft to 400 lb-ft. Power delivery is smooth and linear, making this system well-suited for daily-driven Mustangs that demand strong top-end performance without sacrificing drivability.
V-3 Si-Trim Supercharger Technology
The system is built around the V-3 Si-Trim centrifugal supercharger, featuring Vortech's advanced high-efficiency impeller and housing design developed in their supercharger test cell. The V-3 utilizes self-contained internal lubrication, eliminating the need for engine oil feed and drain lines and simplifying both installation and long-term maintenance.
Vortech's SQ (Super Quiet) gear-driven technology provides nearly silent operation while maintaining the durability and reliability expected from a Vortech supercharger.
Complete System Configuration
This is a complete supercharger system, meaning it includes the required fuel system upgrades and ECM calibration necessary for operation on a stock engine with stock exhaust or most aftermarket cat-back exhaust systems. Vehicles equipped with additional modifications such as aftermarket throttle bodies, cold air intakes, headers, or off-road mid-pipes may require custom tuning.
Note: Not all ECU box codes are supported by existing Vortech calibrations. Vortech recommends verifying ECU box code compatibility prior to purchase.
Performance & Reliability Features
- V-3 Si-Trim centrifugal supercharger with self-contained internal lubrication
- Vortech SQ gear-driven technology for quiet operation and long-term reliability
- High-efficiency impeller and housing developed in Vortech's supercharger test cell
- Fuel management upgrade including high-flow fuel pump, high-capacity fuel injectors, and ECM chip
- Heat-resistant silicone inlet and discharge sleeves
- Premium stainless steel clamps
- OEM-type aluminum supercharger mounting bracket for factory-installed appearance and rigidity
- High-flow bypass valve for surge-free compressor operation
Installation Notes
- Professional installation recommended
- System is designed for stock engines with supported ECU box codes
- Modified vehicles may require custom tuning
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 4FL218-130L
- Application: 2000-2004 Ford Mustang GT 4.6L 2V
- Kit Type: Complete Supercharger System
- Supercharger: V-3 Si-Trim
- Lubrication: Self-contained internal oiling
- Finish: Satin
- Charge Cooling: None (non-charge-cooled system)
- Advertised Output Change: 260 HP to 402 HP
- Advertised Torque Change: 302 lb-ft to 400 lb-ft
- CARB EO Number: D-213-27
- Hardware Kit: 4FL100-001 (spare/replacement mounting hardware)
CARB & Emissions Compliance
- CARB compliant complete system
- Approved by the California Air Resources Board
- CARB Executive Order: D-213-27
FAQs
- Is this system street legal?
Yes. This is a complete, CARB-approved system when installed on a stock engine with supported ECU calibration. - Can this system be used on modified engines?
Vehicles with significant modifications may require custom tuning, as Vortech only supplies tunes for stock engine configurations.
Fitment
- 2000 Ford Mustang GT 4.6L 2V
- 2001 Ford Mustang GT 4.6L 2V
- 2002 Ford Mustang GT 4.6L 2V
- 2003 Ford Mustang GT 4.6L 2V
- 2004 Ford Mustang GT 4.6L 2V
