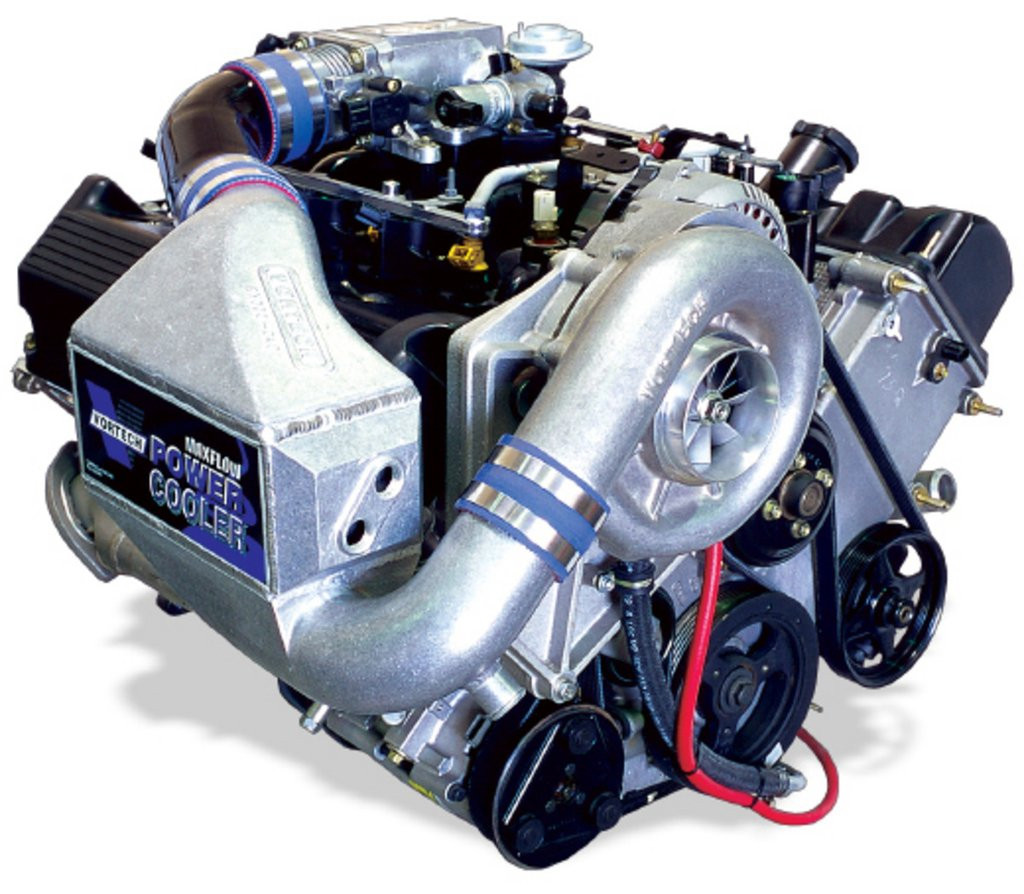

Vortech Tuner Kit w/ V-2 Si-Trim & Charge Cooler - Satin (2000-2004 Mustang GT 4.6L 2V) 4FL218-120SQ
Satin V-2 Si-Trim High-Output Tuner Supercharger Kit for 2000-2004 Mustang GT
The Vortech Superchargers Tuner Kit with V-2 Si-Trim and Charge Cooler (PN 4FL218-120SQ) is designed for 2000-2004 Ford Mustang GT models equipped with the 4.6L 2-valve engine. Finished in a durable satin coating, this high-output tuner kit is intended for experienced builders and racers who require full flexibility over fuel system selection and custom calibration.
With increased boost and integrated charge cooling, this configuration is capable of safely increasing output from 260 horsepower to 402 horsepower and torque from 302 lb-ft to 400 lb-ft on a properly prepared engine. Vortech's centrifugal design delivers smooth, linear power that continues to pull hard through the upper RPM range.
V-2 Si-Trim Supercharger Technology
The V-2 Si-Trim centrifugal supercharger is an engine oil-fed unit that utilizes Vortech's proven SQ (Super Quiet) gear-driven technology for nearly silent operation and outstanding durability. Its high-efficiency impeller and housing design, developed in Vortech's supercharger test cell, provides strong airflow with excellent thermal efficiency under sustained boost.
Dedicated oil feed and oil drain assemblies deliver consistent lubrication and cooling, making the V-2 Si-Trim well suited for high-output street, strip, and competition use.
Tuner Kit Configuration Explained
Tuner kits are the same as complete systems except they do not include fuel system upgrades or ECM reprogramming. This allows tuners and racers to choose their own injectors, fuel pumps, engine management, and ignition strategies based on specific power goals.
This setup is intended for advanced users and vehicles requiring professional custom tuning.
Integrated Air-to-Water Charge Cooling
This system incorporates a fully integrated air-to-water, dual-pass charge cooler designed to reduce intake air temperatures and increase air density under boost. The closed-loop, maintenance-free configuration supports higher boost levels and additional horsepower gains with consistent performance.
Note: Charge-cooled systems require a battery relocation kit (PN 8N150-010, sold separately).
Included Components
- V-2 Si-Trim centrifugal supercharger with engine oil feed and drain
- High-efficiency impeller and housing assembly
- Integrated air-to-water, dual-pass charge cooler system
- OEM-style aluminum supercharger mounting bracket for factory-installed appearance
- High-flow bypass valve for surge-free compressor operation
- Heat-resistant silicone inlet and discharge sleeves
- Premium stainless steel clamps
- All required supercharger mounting hardware
Installation Notes
- Estimated installation time: approximately 12 hours
- Professional installation and custom tuning strongly recommended
- Fuel system upgrades and ECU calibration are required but not included
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 4FL218-120SQ
- Application: 2000-2004 Ford Mustang GT 4.6L 2V
- Kit Type: Tuner Kit
- Supercharger: V-2 Si-Trim
- Lubrication: Engine oil-fed
- Finish: Satin
- Cooling: Air-to-water, dual-pass charge cooler
- Power Capability: Up to 402 HP and 400 lb-ft with proper supporting modifications
Emissions & Legal Notice
- NOT AVAILABLE OR LEGAL FOR SALE IN CALIFORNIA
- Tuner kits are not CARB legal
- Legal in California only for racing vehicles that are never registered or driven on public highways
- Installation on emissions-controlled vehicles may violate U.S. federal emissions law (42 U.S.C. 7522(a)(3))
Additional Information
- Hardware kit PN 4FL100-001 available for spare or replacement supercharger mounting hardware
- Custom tuning required for all applications
- Vortech offers multiple supercharger options for different racing disciplines and boost levels
FAQs
- What makes this a tuner kit instead of a complete system?
This kit does not include fuel system components or ECM tuning, allowing full customization for race and high-performance builds. - Is this kit street legal?
No. This tuner kit is not CARB compliant and is intended strictly for off-road and racing use.
Fitment
- 2000 Ford Mustang GT 4.6L 2V
- 2001 Ford Mustang GT 4.6L 2V
- 2002 Ford Mustang GT 4.6L 2V
- 2003 Ford Mustang GT 4.6L 2V
- 2004 Ford Mustang GT 4.6L 2V
Why Buy from Beefcake Racing?
Beefcake Racing is an authorized Vortech Superchargers dealer with extensive experience supporting high-horsepower 4.6L Mustang builds. Our team can help you choose the correct supporting components, understand tuning requirements, and ensure your V-2 Si-Trim tuner setup is configured correctly for reliable, repeatable performance.
