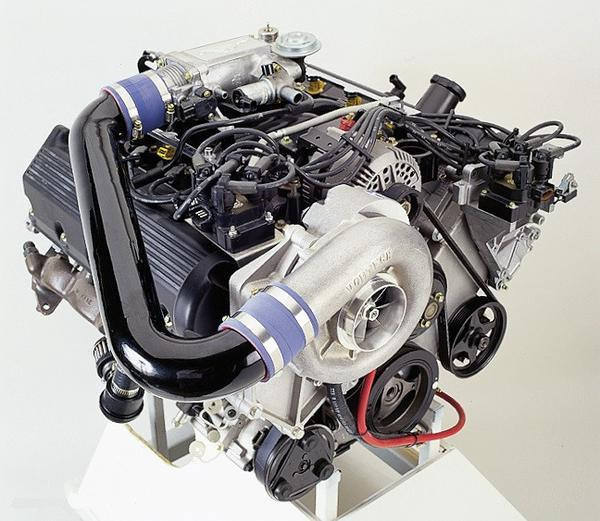

Vortech Standard Output Supercharger System w/ V-3 Si-Trim - Satin (1998 4.6 Mustang GT) 4FH218-070L
Standard Output Satin V-3 Si-Trim Supercharger System for 1998 Mustang GT 4.6L
The Vortech Standard Output Supercharger System (PN 4FH218-070L) is a complete, Standard Output centrifugal supercharger system engineered specifically for the 1998 Ford Mustang GT equipped with the 4.6L 2-valve V8. This part number represents the satin-finish configuration using the V-3 Si-Trim internally lubricated supercharger, delivering reliable, street-friendly power gains with OEM-quality fitment.
In Standard Output form, Vortech states this system safely increases horsepower from 215 to 290 and torque from 265 lb./ft. to 345 lb./ft., providing a significant performance improvement while maintaining drivability and long-term durability.
What This Part Number Is (and What It Is Not)
- This kit IS: Standard Output complete supercharger system with V-3 Si-Trim and satin finish (PN 4FH218-070L)
- This kit is NOT: A High Output charge-cooled system
- This kit is NOT: A tuner kit (fuel system upgrades are included)
Optional High Output Charge-Cooled Configuration (Not Included)
Vortech also offers a separate High Output Supercharger System for this platform featuring a fully integrated air-to-water aftercooler and increased boost levels. Vortech states the High Output charge-cooled configuration increases horsepower from 215 to 323 and torque from 265 lb./ft. to 365 lb./ft.
Important: High Output charge-cooled systems require a battery relocation kit (PN 8N150-010, sold separately). This equipment is not included with PN 4FH218-070L.
V-3 Si-Trim Supercharger Technology
The V-3 Si-Trim features Vortech's self-contained internal lubrication system, eliminating the need for external oil feed and return lines. Developed using Vortech's in-house supercharger test cell, the high-efficiency impeller and housing design deliver quiet operation, smooth power delivery, and excellent reliability for daily-driven performance builds.
System Features
- Vortech V-3 gear-driven centrifugal supercharger with internal lubrication
- Technologically advanced, high-efficiency impeller and housing design
- Fuel management upgrade including high-flow fuel pump and fuel management unit (FMU)
- High Output systems (optional only): Integrated air-to-water, dual-pass charge cooler
- Heat-resistant silicone inlet and discharge couplers with premium stainless steel clamps
- OEM-type aluminum mounting bracket for factory-installed appearance and rigidity
- High-flow bypass valve for smooth, surge-free compressor operation
Installation
- Estimated installation time: 12-14 hours
- Professional installation recommended
CARB Compliance
This is a CARB-approved, smog-legal complete supercharger system when installed as configured.
- CARB Executive Order #: D-213-17
Tuner Kits & Additional Supercharger Options
Vortech also offers tuner kits for this platform, which exclude fuel system upgrades and ECM reprogramming to allow for custom calibration. For sustained high-load applications such as road racing, Vortech provides V-2 series superchargers that share the engine's oiling system and support optional oil cooling.
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 4FH218-070L
- Application: 1998 Ford Mustang GT 4.6L
- System Type: Complete Supercharger System
- Output Level: Standard Output
- Supercharger: V-3 Si-Trim (internally lubricated)
- Finish: Satin
- Charge Cooling: None included; High Output system optional
- Power Increase: 215 to 290 horsepower; 265 lb./ft. to 345 lb./ft.
- Estimated Install Time: 12-14 hours
- CARB EO: D-213-17
FAQs
- Is this the High Output charge-cooled system?
No. PN 4FH218-070L is the Standard Output non-charge-cooled system. The High Output version is a different part number. - Is this system street legal?
Yes. This complete system is CARB approved and smog legal when installed as configured.
Fitment
- 1998 Ford Mustang GT 4.6L
