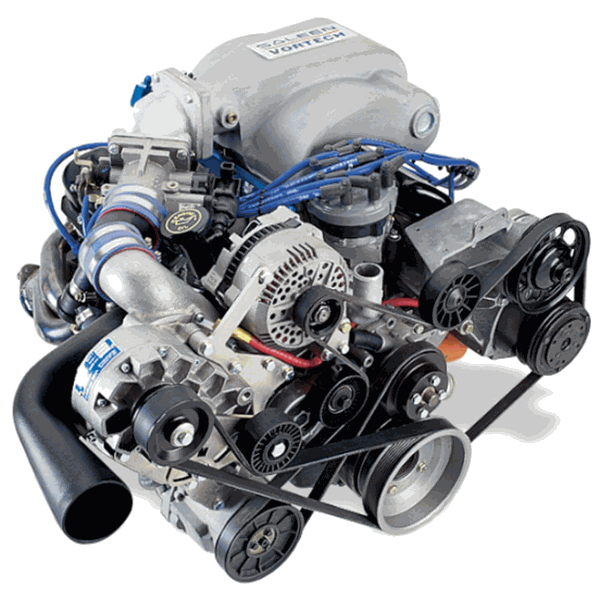

Vortech V-1 H/D Ti-Trim Supercharger Complete Kit - Satin (1994-1995 Mustang 5.0) 4FG218-020T
V-1 H/D Ti-Trim Complete Supercharger System
The Vortech Superchargers Complete Kit V-1 H/D Ti-Trim (Part Number 4FG218-020T) is a fully calibrated, bolt-on centrifugal supercharger system designed specifically for the 1994-1995 Ford Mustang 5.0. This system delivers strong, reliable power gains while maintaining street manners and emissions compliance.
At the flywheel, this system increases horsepower from 215 HP to 319 HP and torque from 285 lb-ft to 370 lb-ft at 6-8 PSI. The V-1 H/D Ti-Trim supercharger is intended for enthusiasts planning higher horsepower configurations compared to standard trim options.
V-1 H/D Ti-Trim Supercharger Technology
This system utilizes Vortech's gear-driven V-1 H/D Ti-Trim centrifugal supercharger, engineered for high-output capability and durability. The V-1 series is designed to support higher horsepower applications and is well suited for aggressive street builds or future performance upgrades.
The supercharger features a technologically advanced, high-efficiency impeller and housing design developed in Vortech's supercharger test cell to deliver consistent airflow and reliable boost.
Complete Fuel & Ignition System Included
As a complete system, this kit includes all required fuel and ignition upgrades for proper operation at the supplied boost level. No additional fuel or ignition components are required for installation.
System Components & Features
- Vortech V-1 H/D Ti-Trim centrifugal supercharger
- OEM-style cast aluminum supercharger mounting bracket
- High-flow fuel pump
- Fuel Management Unit (FMU)
- MSD 6AL-BTM ignition system
- High-flow bypass valve for surge-free operation
- Heat-resistant silicone inlet and discharge couplers
- Premium stainless steel clamps
- All required belts, pulleys, and mounting hardware
Performance Highlights
- Flywheel horsepower increase from 215 HP to 319 HP
- Flywheel torque increase from 285 lb-ft to 370 lb-ft
- Boost pressure: 6-8 PSI
- Designed for higher horsepower potential
- OEM-style fit and factory-installed appearance
Upgrades & Service Parts
- Supercharger compressor upgrades
- 8-rib, 10-rib, and cog-drive pulley systems
- Fuel pump and fuel system upgrades
- Fuel Management Units
- Boost Timing Master
- Maxflow fuel pump boosters (5A102-029, 5A102-030)
- Bypass and blowoff valves
- Supercharger oil cooler
- Replacement hardware kit (PN 4FG100-001)
Installation
- Estimated installation time: 7 hours
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 4FG218-020T
- System Type: Complete Supercharger Kit
- Supercharger: V-1 H/D Ti-Trim
- Lubrication: Engine oil fed
- Boost: 6-8 PSI
- Finish: Satin
- Horsepower Gain: +104 HP (flywheel)
- Torque Gain: +85 lb-ft (flywheel)
FAQs
- Is this a complete bolt-on system?
Yes. This kit includes fuel and ignition components required for proper operation. - Is this system suitable for higher horsepower builds?
Yes. The V-1 H/D Ti-Trim is designed for higher horsepower potential and future upgrades.
Fitment
- 1994 Ford Mustang 5.0
- 1995 Ford Mustang 5.0
CARB Compliance
- 50-state emissions legal
- CARB Executive Order: D-213-37
