Vortech Supercharger Tuner Kit V-3 Si Trim Satin w/ Charge Cooler (19861993 Mustang) 4FA218-170L
High-Efficiency V-3 Si Tuner Kit with Air-to-Water Charge Cooling
The Vortech V-3 Si Tuner Kit with Charge Cooler is engineered for 19861993 Ford Mustang (Fox Body) applications that demand maximum flexibility for custom fuel systems and tuning. Built around Vortechs ultra-efficient V-3 Si centrifugal supercharger, this configuration is intended for modified vehicles pursuing higher output combinations beyond entry-level systems.
Continual development in Vortechs test lab produced the V-3 Si, achieving a peak adiabatic efficiency of 78% (SAE J1723). The Si designation reflects its improved, patented oil control system and advanced centrifugal compressor stage. High efficiency reduces heat generation and parasitic drive loss, producing more net power and improving durability.
All V-3 series superchargers feature self-contained internal lubrication, eliminating the need for oil feed or return lines to the engine oil pan. This simplifies installation versus engine-oil-fed V-1 and V-2 units while maintaining Vortechs long-term reliability.
Air-to-Water Charge Cooling for Fox Body Mustangs
For Fox Body Mustang applications, Vortech employs an air-to-water charge cooler to minimize pressure loss. Unlike air-to-air systems that route charge air through long tubing paths and large cores, this design keeps the airflow path nearly identical to the non-cooled setup, resulting in virtually no boost loss. Charge cooling delivers cooler, denser air, raises the detonation threshold, and supports higher boost options.
Tuner Kit Configuration Notes
- Tuner kit intended for custom builds requiring upgraded fuel components and custom calibration
- No air inlet assembly included
- Supports higher output combinations compared to entry-level systems
- Satin finish; black and polished finishes are available on other V-3 Si systems

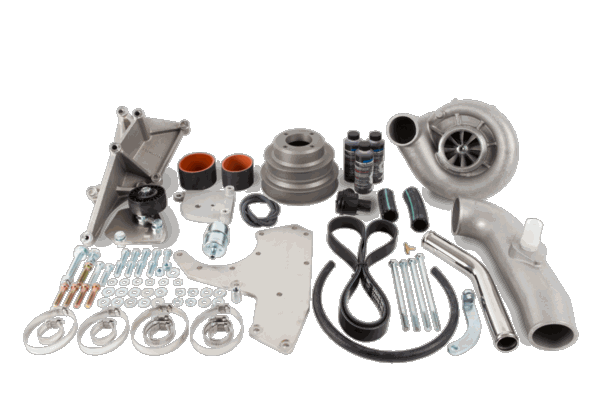

System Components & Features
- Vortech V-3 Si centrifugal supercharger with helical-cut gear set
- High-efficiency impeller and housing developed in an SAE J1723-compliant supercharger test cell
- Cast aluminum mounting bracket assembly with idler, drive belt, and all required hardware
- Heat-resistant silicone discharge sleeves with premium stainless steel clamps
- High-flow bypass valve for surge-free compressor operation (not included on entry-level systems)
- Complete mechanical drive system including belts, pulleys, and hardware
- Air-to-water charge cooler system
Upgrades, Accessories & Spare Parts
- Battery Relocation Kit: 8N150-010 (required for all charge-cooled 19861993 Mustang systems; sold separately)
- Supercharger compressor upgrades
- Supercharger drive pulleys
- Drive upgrade pulley packages with underdrive and non-underdrive accessories
- 35mm cog drive upgrade packages
- Fuel rails, fuel pumps, and complete fuel system upgrades
- Fuel management units and Super FMU
- Ignition upgrades with Boost Timing Master
- Bypass and blowoff valves
- Additional charge cooler systems
- Replacement hardware kit: 4FA100-001
Quick Specs
- Manufacturer: Vortech
- Part Number: 4FA218-170L
- Supercharger Model: V-3 Si Trim
- Finish: Satin
- Lubrication: Internal self-contained lubrication
- System Type: Tuner supercharger kit
- Charge Cooling: Air-to-water (included)
- Emissions Compliance: NOT CARB legal off-road/racing use only
- Warranty: 1-Year Limited standard; optional 3-Year available when purchased as part of a complete street-legal V-3 system
Frequently Asked Questions
Is this tuner kit legal for street use?
No. This product is NOT CARB legal and is intended for off-road or racing vehicles only. It is not legal for use on public roads or highways.
What makes this a tuner kit instead of a complete system?
Tuner kits are designed for custom builds and do not include fuel system components, tuning, or an air inlet assembly, allowing builders to select supporting parts that match their performance goals.
Vehicle Fitment
- 1986 Ford Mustang
- 1987 Ford Mustang
- 1988 Ford Mustang
- 1989 Ford Mustang
- 1990 Ford Mustang
- 1991 Ford Mustang
- 1992 Ford Mustang
- 1993 Ford Mustang
