Vortech Super High Output System V-7 YSi, Driver Side, Satin (19861993 Mustang 5.0) 4FA218-110
V-7 YSi Super High Output Centrifugal Supercharger System for Fox Body Mustang 5.0

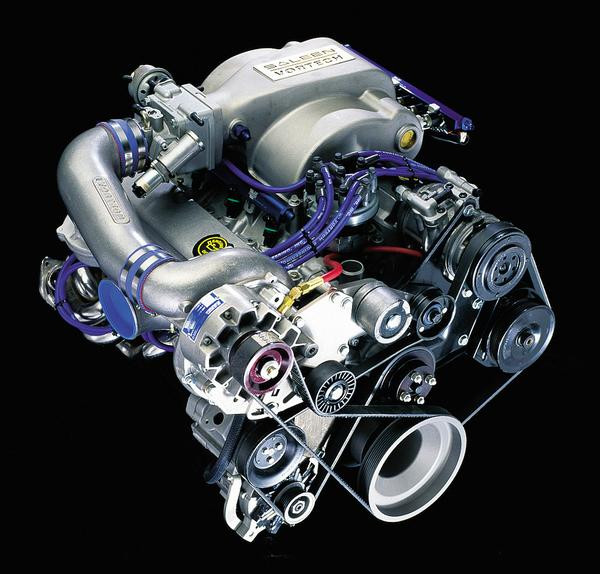

The Vortech Superchargers V-7 YSi Super High Output System (Part Number 4FA218-110) is a competition-focused centrifugal supercharger package designed for the 19861993 Ford Mustang 5.0L. This system features a driver-side mounting configuration, a satin-finish V-7 YSi supercharger, and a dedicated 10-rib drive system engineered to support extreme boost levels and high-horsepower race applications.
This is a Super High Output, race-only system. It is not CARB legal and is not available or legal for street use in California.
V-7 YSi Supercharger Technology
The heart of this system is Vortechs V-7 YSi centrifugal supercharger, developed specifically for sustained high-RPM operation and maximum airflow. Continued development in Vortechs SAE J1723-compliant supercharger test cell resulted in the YSi achieving a peak 78% adiabatic efficiency.
The i designation indicates improved efficiency and output potential. Higher efficiency reduces heat generation, lowers drive power consumption, and increases net horsepower while improving durability under extreme operating conditions.
Driver-Side Super High Output Configuration
This Fox Body Mustang Super High Output system is designed for 2,000+ horsepower capability, depending on engine configuration, fuel system, and custom tuning. The driver-side mounting configuration offers packaging advantages for dedicated race vehicles; however, driver-side systems are not compatible with vehicles retaining air conditioning or power steering.
A dedicated 10-rib supercharger drive system is used to provide superior belt grip and reliability at elevated boost levels, making this system suitable for aggressive drag racing and extreme performance builds.
System Components & Features
- Vortech V-7 YSi centrifugal supercharger (satin finish)
- Driver-side mounting configuration
- Dual-plate cast aluminum and steel supercharger mounting bracket assembly
- Dedicated 10-rib supercharger drive system
- Idler assembly, drive belt, and complete mounting hardware
- High-flow bypass valve for surge-free compressor operation
- Heat-resistant silicone inlet and discharge sleeves
- Premium stainless steel clamps
Performance & Technology Benefits
- High-efficiency impeller and housing developed in an SAE J1723 test cell
- Centrifugal design delivers greater airflow and pressure capability than roots-type superchargers
- Dedicated 10-rib drive system improves belt grip at high boost
- Designed for extreme horsepower and race-only applications
- Exceptional horsepower-per-dollar potential for competition builds
Upgrades, Accessories & Race Equipment
- Supercharger compressor upgrades
- 8-rib, 10-rib, and cog-drive pulley systems
- Fuel pumps and complete fuel system upgrades
- Fuel Management Units
- Boost Timing Master ignition control
- Fuel pump voltage booster
- Bypass and blowoff valves
Emissions & Legal Notice
- NOT CARB legal
- Legal in California only for racing vehicles not driven on public roads
- Installation on emissions-controlled vehicles may violate U.S. federal law
Warranty Information
- 1-Year Supercharger Limited Warranty
- Race and heavy-duty models are not eligible for extended warranty programs
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 4FA218-110
- Application: 19861993 Ford Mustang 5.0L
- System Type: Super High Output Complete System
- Supercharger: V-7 YSi
- Mounting Location: Driver Side
- Drive System: Dedicated 10-Rib
- Finish: Satin
- Emissions: Race use only / not street legal
FAQs
- Is this system street legal?
No. This V-7 YSi Super High Output system is not CARB compliant and is intended strictly for racing and off-road use. - Can this system be used with factory A/C or power steering?
No. Driver-side mount systems are not compatible with vehicles retaining air conditioning or power steering.
Fitment
- 1986 Ford Mustang 5.0L
- 1987 Ford Mustang 5.0L
- 1988 Ford Mustang 5.0L
- 1989 Ford Mustang 5.0L
- 1990 Ford Mustang 5.0L
- 1991 Ford Mustang 5.0L
- 1992 Ford Mustang 5.0L
- 1993 Ford Mustang 5.0L
Why Buy from Beefcake Racing?
Beefcake Racing specializes in high-horsepower Mustang builds and Vortech Supercharger systems. From street-based centrifugal setups to full Super High Output race combinations, our team helps ensure your system is matched correctly to your performance goals.
