Vortech High Output Complete System V-1 H/D Ti w/Charge Cooler, Polished (19861993 Mustang 5.0) 4FA218-078T
High Output Polished V-1 H/D Ti Supercharger System with Charge Cooler for Fox Body Mustang 5.0

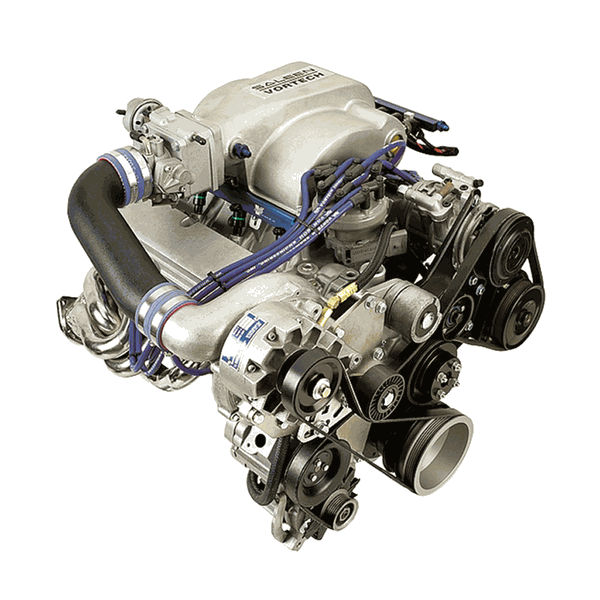

The Vortech Superchargers High Output Complete System (PN 4FA218-078T) is a fully calibrated, bolt-on centrifugal supercharger system engineered specifically for the 19861993 Ford Mustang 5.0L. This version features a high-visibility polished finish and combines Vortechs Heavy Duty V-1 Ti supercharger with an air-to-water charge cooler for high-output performance and effective thermal control.
This is a complete street system, not a tuner kit, designed to deliver reliable power while supporting higher horsepower levels when properly configured.
V-1 H/D Ti Supercharger Technology
The V-1 Heavy Duty Ti centrifugal supercharger is designed for high-power applications and is capable of supporting up to 950 horsepower, depending on engine configuration and custom tuning. The V-1 Ti features a robust, gear-driven design and is engine-oil lubricated, making it well suited for demanding performance environments.
Because the V-1 Ti is engine-oil lubricated, it requires oil feed and drain connections. For sustained high-load operation, a dedicated oil cooler and/or oil filter may be added.
Air-to-Water Charge Cooling Advantage
For Fox Body Mustang applications, Vortech utilizes an air-to-water charge cooler system to minimize pressure loss. Unlike air-to-air systems that route charge air through long tubing paths and large intercooler cores, this system maintains a short charge-air path comparable to the non-cooled configurationresulting in virtually no boost loss.
Charge cooling delivers cooler, denser air, increasing power output, reducing detonation risk, and allowing higher boost capability.
System Output & Configuration
This High Output system falls within Vortechs 79 PSI system range. Fox Body Mustang systems are also available with V-2 Si and V-3 Si superchargers, as well as tuner kits for heavily modified vehicles requiring custom fuel systems and tuning.
Included System Components
- Vortech V-1 H/D Ti centrifugal supercharger (engine oil lubricated)
- Air-to-water charge cooler system
- Cast aluminum supercharger mounting bracket assembly
- Idler assembly, drive belt, and all required mounting hardware
- Fuel system upgrade with T-Rex fuel pump and fuel management unit (FMU)
- High-flow bypass valve for surge-free compressor operation
- Heat-resistant silicone sleeves with stainless steel clamps
- Reusable high-flow air filter
- All necessary belts and pulleys
Technology & Performance Benefits
- Heavy-duty supercharger design for high-horsepower applications
- Centrifugal compressor delivers higher pressure and airflow than roots-type superchargers
- Charge cooling improves thermal efficiency and durability
- Excellent horsepower-per-dollar performance
- Fuel economy may improve during normal driving conditions
Upgrades & Accessories
- Battery relocation kit (required for all charge-cooled 19861993 Mustang systems; sold separately)
- Power Cooler upgrade components
- Supercharger pulleys and pulley packages
- Fuel rails, fuel pumps, and fuel system upgrades
- Ignition upgrades including MSD 6AL-BTM
- Bypass and blowoff valves
- Supercharger oil cooler
- Replacement hardware kits
CARB & Emissions Compliance
- 50-State emissions legal
- CARB Executive Order: D-213-37
Warranty Information
- 1-Year Supercharger Limited Warranty included
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 4FA218-078T
- Application: 19861993 Ford Mustang 5.0L
- System Type: High Output Complete System
- Supercharger: V-1 H/D Ti
- Cooling: Air-to-water charge cooler
- Finish: Polished
- Lubrication: Engine oil lubricated
- Power Capability: Up to 950 HP (with proper engine and tuning)
FAQs
- Why choose the V-1 H/D Ti system?
The V-1 H/D Ti is designed for high-horsepower builds and offers greater power capability than standard street superchargers. - Does this system require oil lines?
Yes. The V-1 H/D Ti is engine-oil lubricated and requires oil feed and drain connections.
Fitment
- 1986 Ford Mustang 5.0L
- 1987 Ford Mustang 5.0L
- 1988 Ford Mustang 5.0L
- 1989 Ford Mustang 5.0L
- 1990 Ford Mustang 5.0L
- 1991 Ford Mustang 5.0L
- 1992 Ford Mustang 5.0L
- 1993 Ford Mustang 5.0L
