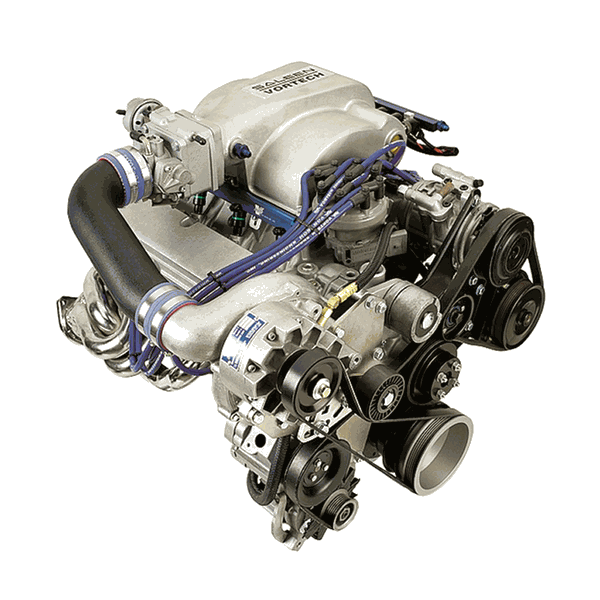

Vortech High Output Complete Supercharger System - V-1 H/D Ti, Polished (1986-1993 Mustang 5.0) 4FA218-048T
High Output Polished V-1 H/D Ti Supercharger System for Fox Body Mustang 5.0
The Vortech Superchargers High Output Complete System (PN 4FA218-048T) is a fully calibrated, bolt-on centrifugal supercharger package engineered specifically for 1986-1993 Ford Mustang 5.0L applications. Featuring a show-quality polished finish, this system utilizes Vortech's Heavy Duty V-1 Ti compressor paired with an air-to-water charge cooling system to deliver consistent high-output performance with exceptional durability for aggressive street and track use.
This is a complete, street-legal system - not a tuner kit - designed to integrate cleanly with the Fox Body platform while providing reliable power delivery when installed as intended.
V-1 H/D Ti Supercharger Technology
The V-1 Heavy Duty Ti centrifugal supercharger is designed for demanding performance applications and is capable of supporting up to 950 horsepower depending on engine configuration and custom tuning. This robust unit features a gear-driven design and is engine-oil-lubricated, making it well suited for sustained high-load and high-RPM operation.
Because the V-1 H/D Ti is engine-oil-fed, it requires oil feed and drain connections. For extreme-duty applications, a dedicated oil cooler and/or filter can be added to further enhance thermal control and long-term reliability.
Air-to-Water Charge Cooling Advantage
For Fox Body Mustangs, Vortech employs an air-to-water charge cooler system to minimize pressure loss. Unlike air-to-air systems that route charge air through long tubing paths and large cooler cores, this design keeps the airflow path short - resulting in virtually no boost loss compared to non-cooled configurations.
Charge cooling produces cooler, denser air, increasing power output, reducing detonation risk, and allowing greater tuning flexibility at higher boost levels.
System Output & Configuration
This High Output system operates in the 7-9 PSI range and is engineered as a complete, fully calibrated package. While Vortech also offers Fox Body Mustang systems as tuner kits for extreme custom applications exceeding 2,500-3,000+ horsepower, this specific part number represents a turnkey street system built around the Heavy Duty V-1 Ti supercharger.
Included System Components
- Vortech V-1 H/D Ti centrifugal supercharger (engine oil lubricated)
- Air-to-water charge cooler system
- Cast aluminum supercharger mounting bracket assembly
- Idler assembly, drive belt, and all required mounting hardware
- Fuel system upgrade including T-Rex fuel pump and fuel management unit (FMU)
- High-flow bypass valve for surge-free compressor operation
- Heat-resistant silicone sleeves with stainless steel clamps
- Reusable high-flow air filter
- All necessary belts and pulleys for installation
Technology & Performance Benefits
- SAE J1723-developed high-efficiency impeller and compressor housing
- Centrifugal design delivers higher pressure and flow than roots-type blowers
- Heavy-duty supercharger design supports extreme horsepower capability
- Charge cooling improves thermal efficiency and durability
- Fuel economy may improve during normal driving conditions
Upgrades & Accessories
- Power Cooler Upgrade Kit for increased horsepower per PSI
- Battery relocation kit (required on all charge-cooled 1986-1993 Mustang systems, sold separately)
- Multiple supercharger pulley options and pulley packages
- Fuel rails, fuel pumps, and fuel management upgrades
- Ignition upgrade assemblies including MSD 6AL-BTM
- Bypass and blowoff valve options
- Supercharger oil cooler
- Replacement hardware kits
CARB & Emissions Compliance
- 50-State emissions legal
- CARB Executive Order: D-213-37
Warranty Information
- 1-Year Supercharger Limited Warranty included
- 3-Year Supercharger Limited Warranty available with V-3 superchargers purchased as part of a complete street-legal system (additional cost)
- Tuner kits are limited to a 1-year warranty
FAQs
- Why choose the V-1 H/D Ti over a V-2 or V-3?
The V-1 H/D Ti is designed for heavy-duty use and supports very high horsepower levels, making it ideal for aggressive street or track builds. - Does this system require oil lines?
Yes. The V-1 H/D Ti supercharger is engine-oil-lubricated and requires oil feed and drain connections.
Fitment
- 1986 Ford Mustang 5.0L
- 1987 Ford Mustang 5.0L
- 1988 Ford Mustang 5.0L
- 1989 Ford Mustang 5.0L
- 1990 Ford Mustang 5.0L
- 1991 Ford Mustang 5.0L
- 1992 Ford Mustang 5.0L
- 1993 Ford Mustang 5.0L
