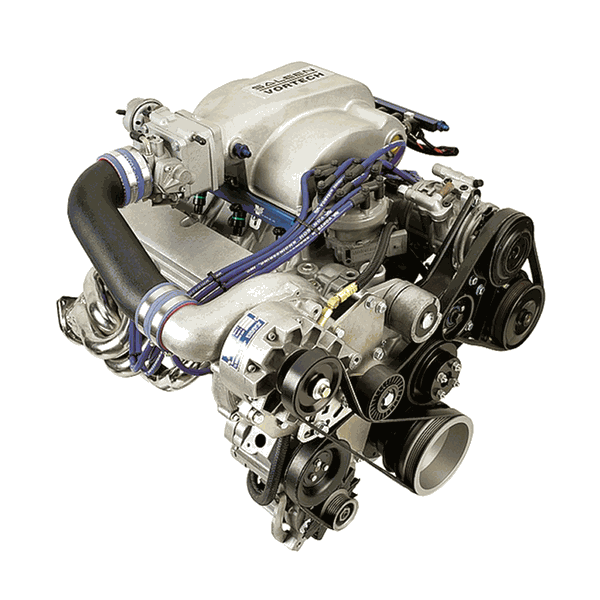

Vortech Superchargers High Output Complete System - V-2 Si - Polished (1986 - 1993 Mustang 5.0) 4FA218-048SQ

Vortech V-2 Si high output polished supercharger system for 1986–1993 Mustang 5.0

Image is a representation of this item.
Actual item may vary.

Item#:
4fa218-048sq
Price: $6,022.99
(No reviews yet) Write a Review

Vortech High Output Complete Supercharger System – V-2 Si, Polished (1986–1993 Mustang 5.0) 4FA218-048SQ

High Output Polished V-2 Si Supercharger System for Fox Body Mustang 5.0

The Vortech Superchargers High Output Complete System (PN 4FA218-048SQ) is a fully calibrated, bolt-on centrifugal supercharger package engineered for 1986–1993 Ford Mustang 5.0L applications. Featuring a show-quality polished finish, this system combines Vortech’s proven V-2 Si compressor with an air-to-water charge cooling system to deliver strong, repeatable power with excellent thermal control for demanding street and track use.

This is a complete, street-legal system—not a tuner kit—designed to integrate cleanly with the Fox Body platform while providing reliable high-output performance when installed as intended.

V-2 Si Supercharger Technology

The V-2 Si centrifugal supercharger is an engine-oil-lubricated design favored for applications that see sustained boost, such as circuit road racing and extended high-load operation. The “Si” designation reflects Vortech’s improved compressor technology developed in an SAE J1723-compliant test environment, delivering high efficiency and consistent airflow across the operating range.

Unlike V-3 systems, the V-2 Si utilizes engine oil feed and drain lines. For extreme-duty applications, a dedicated oil cooler and/or filter can be added to further enhance thermal control and durability.

Air-to-Water Charge Cooling Advantage

For Fox Body Mustangs, Vortech employs an air-to-water charge cooler system to minimize pressure loss. Compared to air-to-air systems that route charge air through long tubing paths and large cooler cores, this design keeps the airflow path short—resulting in virtually no boost loss compared to non-cooled configurations.

Charge cooling produces cooler, denser air, increasing power output, reducing detonation risk, and allowing greater tuning flexibility at higher boost levels.

System Output & Configuration

This High Output system operates in the 7–9 PSI range and is engineered as a complete, fully calibrated package. While Vortech also offers Fox Body Mustang systems as tuner kits for extreme custom applications exceeding 2,500–3,000+ horsepower, this specific part number represents a turnkey street system.

Included System Components

  • Vortech V-2 Si centrifugal supercharger (engine oil lubricated)
  • Air-to-water charge cooler system
  • Cast aluminum supercharger mounting bracket assembly
  • Idler assembly, drive belt, and all required mounting hardware
  • Fuel system upgrade including T-Rex fuel pump and fuel management unit (FMU)
  • High-flow bypass valve for surge-free compressor operation
  • Heat-resistant silicone sleeves with stainless steel clamps
  • Reusable high-flow air filter
  • All necessary belts and pulleys for installation

Technology & Performance Benefits

  • SAE J1723-developed high-efficiency impeller and compressor housing
  • Centrifugal design delivers higher pressure and flow than roots-type blowers
  • Excellent power-per-dollar performance
  • Charge cooling improves thermal efficiency and durability
  • Fuel economy may improve during normal driving conditions

Upgrades & Accessories

  • Power Cooler Upgrade Kit for increased horsepower per PSI
  • Battery relocation kit (required on all charge-cooled 1986–1993 Mustang systems, sold separately)
  • Multiple supercharger pulley options and pulley packages
  • Fuel rails, fuel pumps, and fuel management upgrades
  • Ignition upgrade assemblies including MSD 6AL-BTM
  • Bypass and blowoff valve options
  • Supercharger oil cooler
  • Replacement hardware kits

CARB & Emissions Compliance

  • 50-State emissions legal
  • CARB Executive Order: D-213-37

Warranty Information

  • 1-Year Supercharger Limited Warranty included
  • 3-Year Supercharger Limited Warranty available with V-3 superchargers purchased as part of a complete street-legal system (additional cost)
  • Tuner kits are limited to a 1-year warranty

FAQs

  • Why choose the V-2 Si instead of a V-3 Si?
    The V-2 Si is engine-oil-lubricated and is often preferred for applications that see sustained boost, such as circuit road racing.
  • Does this system require oil lines?
    Yes. The V-2 Si supercharger requires engine oil feed and drain lines, unlike self-contained V-3 systems.

Fitment

  • 1986 Ford Mustang 5.0L
  • 1987 Ford Mustang 5.0L
  • 1988 Ford Mustang 5.0L
  • 1989 Ford Mustang 5.0L
  • 1990 Ford Mustang 5.0L
  • 1991 Ford Mustang 5.0L
  • 1992 Ford Mustang 5.0L
  • 1993 Ford Mustang 5.0L
