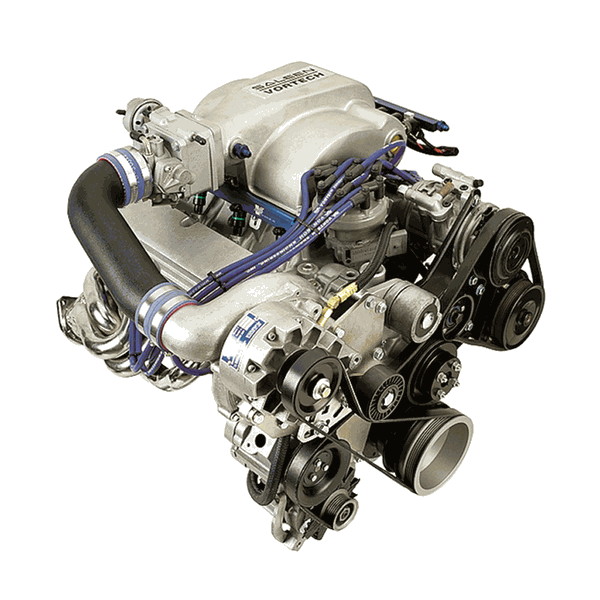

Vortech Superchargers Entry Level Complete System V-3 SCi Satin (19861993 Mustang 5.0)
Vortech V-3 SCi Entry Level Supercharger System for Fox Body Mustang
The Vortech Entry Level Supercharger System for the 19861993 Ford Mustang 5.0 is a complete, bolt-on centrifugal supercharger solution designed for reliable street performance with room to grow. This system delivers 56 PSI of boost using Vortechs modern V-3 SCi internally lubricated supercharger, making it an ideal starting point for Fox Body owners looking to add power without sacrificing drivability or emissions compliance.
Unlike older engine-oil-fed superchargers, the V-3 SCi features a self-contained lubrication system, eliminating the need to tap the oil pan or run external oil lines. This simplifies installation while maintaining excellent durability for street-driven cars. The SCi designation stands for Supercharger, Centrifugal, improved, reflecting Vortechs patented oil control system and advanced compressor stage developed through extensive SAE J1723 testing.
With industry-leading adiabatic efficiency, the V-3 SCi produces cooler charge air, reduces parasitic loss, and delivers more usable power per pound of boost. The result is a smooth, linear power increase that transforms the character of the Fox Body Mustang while preserving everyday drivability.
Performance Highlights
- Entry-level 56 PSI boost for street-friendly power
- V-3 SCi internally lubricated centrifugal supercharger
- No engine oil feed or drain required
- High adiabatic efficiency for reduced heat and improved durability
- Upgradeable platform for future horsepower goals
Complete System Components & Features
- Vortech V-3 SCi supercharger with patented oil control system
- Technologically advanced impeller and housing developed in an SAE J1723-compliant test cell
- Fuel management upgrade utilizing a Fuel Management Unit (FMU)
- Cast aluminum supercharger mounting bracket with idler, drive belt, and all hardware
- Heat-resistant silicone couplers with premium stainless-steel clamps
- Reusable high-flow air filter
- Complete bolt-on system including all required belts and pulleys
Quick Specs
- Part Number: 4FA218-010L
- Application: 19861993 Ford Mustang 5.0
- System Type: Complete entry-level supercharger system
- Supercharger: Vortech V-3 SCi
- Boost Level: 56 PSI
- Lubrication: Self-contained (no engine oil lines)
- Finish: Satin
Available Upgrades & Expansion Options
- H.O. Upgrade Package Converts entry system to 79 PSI specification
- Power Cooler Upgrade Kit Air-to-water charge cooling for higher power per PSI
- Battery Relocation Kit Required for all charge-cooled 19861993 Mustang systems
- Supercharger pulleys (6-rib): 2A036-312, 2A036-287, 2A036-262
- 8-rib and 10-rib pulley packages with underdrive and non-underdrive options
- Fuel rails, fuel pumps, and upgraded fuel management units
- Ignition upgrade assemblies with MSD 6AL-BTM
- Bypass valves, blow-off valves, and supercharger oil cooler options
FAQs
Does this system require tapping the oil pan?
No. The V-3 SCi supercharger is internally lubricated and does not require any oil feed or drain connections.
Can this system be upgraded for more boost later?
Yes. This entry-level system can be upgraded with Vortechs H.O. components and charge cooling options to support higher boost and horsepower goals.
Fitment
- 1986 Ford Mustang 5.0
- 1987 Ford Mustang 5.0
- 1988 Ford Mustang 5.0
- 1989 Ford Mustang 5.0
- 1990 Ford Mustang 5.0
- 1991 Ford Mustang 5.0
- 1992 Ford Mustang 5.0
- 1993 Ford Mustang 5.0
CARB Compliance: This complete system is smog legal under CARB Executive Order D-213-37.
