Vortech Discharge Tube w/ Hardware - Polished (1986-1993 Mustang w/ V-7) 4FA112-058
Polished Vortech Race Discharge Tube for Fox Body V-7 Systems

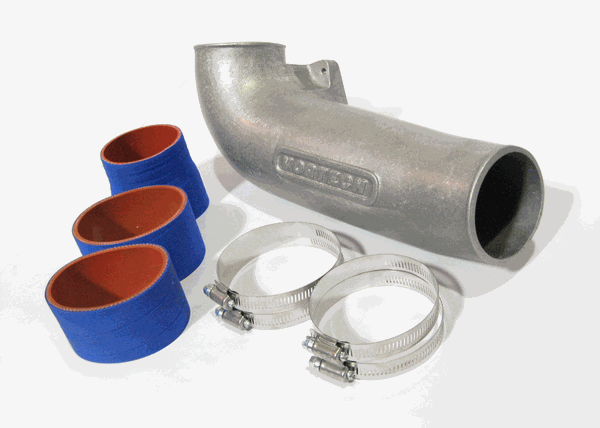

The Vortech Superchargers Discharge Tube with Hardware (PN 4FA112-058) is designed for 1986-1993 Ford Mustang applications equipped with a Vortech V-7 supercharger. Finished in a high-visibility polished finish, this race-style discharge tube supports higher airflow demands commonly associated with larger supercharger upgrades and aggressive performance builds.
When stepping up to a higher-capacity supercharger or increasing boost on a V-7 system, upgrading the discharge tube is strongly recommended. This Vortech race discharge tube assembly provides the airflow capacity and valve integration needed to maintain efficiency and pressure control under elevated boost conditions.
Race Discharge Tube Design
This discharge tube features an integrated bypass valve flange, allowing compatibility with Vortech's race-oriented pressure relief solutions. Depending on configuration, the tube can be set up for either a 2-bolt Race Bypass / Blowoff valve or a 3-bolt Mondo bypass valve.
This flexibility makes the discharge tube suitable for high-performance street, strip, or competition builds where consistent boost management and proper compressor unloading are critical.
Finish & Configuration Options
This specific version is supplied in a polished finish. Vortech also offers the same race discharge tube in a satin finish under a different part number.
The race discharge tube assembly is available in multiple configurations:
- With Mondo Bypass Valve (3-bolt flange)
- With Maxflow Race Bypass Valve (2-bolt flange)
- No valve (flange only)
Included Components
- Vortech race discharge tube in polished finish
- Integrated bypass valve flange (2-bolt or 3-bolt, configuration dependent)
- Required mounting hardware
Note: Bypass valve inclusion depends on selected configuration. Supercharger head unit and additional system components are sold separately.
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 4FA112-058
- Application: Ford Mustang with Vortech V-7
- Engine Platform: 5.0L Small Block Ford
- Finish: Polished
- Discharge Tube Type: Race
- Bypass Valve Compatibility: Race (2-bolt) or Mondo (3-bolt), configuration dependent
Emissions & Legal Notice
- Race-oriented component intended for off-road or competition use
- Installation on emissions-controlled vehicles may violate federal or state emissions regulations
FAQs
- When should this polished race discharge tube be used?
This discharge tube is ideal when upgrading to a larger V-7 supercharger or increasing boost levels that require improved airflow and race-style bypass valve integration. - Is a bypass valve included with this discharge tube?
Bypass valve inclusion depends on the selected configuration. Options include Mondo, Maxflow race valve, or no valve.
Fitment
- 1986 Ford Mustang 5.0L with Vortech V-7
- 1987 Ford Mustang 5.0L with Vortech V-7
- 1988 Ford Mustang 5.0L with Vortech V-7
- 1989 Ford Mustang 5.0L with Vortech V-7
- 1990 Ford Mustang 5.0L with Vortech V-7
- 1991 Ford Mustang 5.0L with Vortech V-7
- 1992 Ford Mustang 5.0L with Vortech V-7
- 1993 Ford Mustang 5.0L with Vortech V-7
Why Buy from Beefcake Racing?
Beefcake Racing is an authorized Vortech Superchargers dealer with extensive experience supporting Fox Body Mustang V-7 combinations. We help ensure proper component selection so your discharge system matches your airflow and boost goals.
