Vortech Supercharger System - V-3 Si Complete Kit - Air-to-Water Charge Cooler - Black (2015-2019 Challenger 6.4L) 4CM218-014L

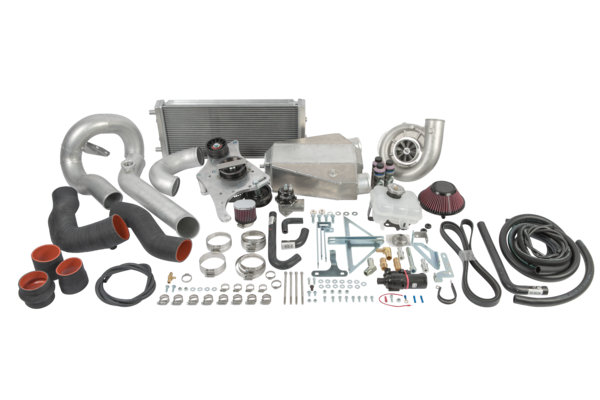

Black V-3 Si Complete Supercharger System for 2015-2019 6.4L Dodge Challenger
The Vortech Supercharger Complete System (PN 4CM218-014L) is a fully engineered, 50-State emissions-legal solution for the 2015-2019 Dodge Challenger 6.4L HEMI. Finished in a factory-matching black, this complete kit pairs the V-3 Si-Trim centrifugal supercharger with an air-to-water Charge Cooler to deliver factory-like drivability with substantial, repeatable power gains.
Compatible with both manual and automatic transmissions, the system boosts a stock 6.4L Challenger to 730 horsepower and 645 lb-ft of torque with 7.0 PSI at factory redline on CA 91 octane - fully calibrated and validated by Vortech.
V-3 Si-Trim Supercharger Technology
The V-3 Si-Trim features Vortech's patented oil control system and an advanced "Si" (Improved) compressor stage developed through extensive lab testing. With industry-leading adiabatic efficiency approaching 78% (SAE J1723), the system generates less heat, reduces parasitic loss, and produces more net power. The lightweight centrifugal design also weighs significantly less than roots-style alternatives.
Performance & Output
- Peak Output: 730 HP / 645 lb-ft torque
- Boost Pressure: 7.0 PSI @ factory redline
- Fuel: Calibrated for CA 91 octane
- Drivability: Factory-like idle, throttle response, and part-throttle manners
Air-to-Water Charge Cooler System
The integrated air-to-water Charge Cooler maintains consistent intake temperatures under sustained boost for improved reliability and repeatable performance.
- Welded charge-air core capable of supporting 1,000+ HP on modified vehicles
- Aluminum high-flow discharge ducting
- OE Hellcat water reservoir with hoses, clamps, and plumbing
- Compact electric circulation pump for closed-loop cooling
- Aluminum heat exchanger (22.6" x 9.5" x 2.5")
- Silicone couplers and stainless steel hose clamps
Mounting & Drive System
- Billet aluminum supercharger mounting plate
- Extended serpentine drive with secondary cog drive
- Drive pulley combination:
- 3.60" serpentine pulley
- 32-tooth secondary drive pulley
- 30-tooth supercharger pulley
- All required idlers, belts, and hardware included
Air Inlet & Bypass Control
- Reusable, high-flow air cleaner
- High-flow inlet ducting
- Vortech Maxflow Race blow-off valve for pressure relief and compressor protection
Complete System Advantages
This is a true complete system. Unlike partial kits, everything needed for installation and calibration is included - right down to PCM handling for tuning. Vortech's extensive HEMI calibration work ensures smooth, safe power delivery without heat soak, RPM drop-off, or compromises to factory safety systems.
Installation
- Estimated Install Time: 10-14 hours
- Bolt-on design with no removal of factory safety components
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 4CM218-014L
- System Type: Complete Supercharger System
- Supercharger: V-3 Si-Trim (CCW rotation)
- Charge Cooling: Air-to-Water Charge Cooler
- Boost: 7.0 PSI
- Peak Output: 730 HP / 645 lb-ft torque
- Finish: Black
- Emissions: 50-State Legal (CARB EO D-213-39)
Fitment
- 2015 Dodge Challenger 6.4L
- 2016 Dodge Challenger 6.4L
- 2017 Dodge Challenger 6.4L
- 2018 Dodge Challenger 6.4L
- 2019 Dodge Challenger 6.4L
CARB & Emissions Compliance
- 50-State Smog Legal
- CARB Executive Order: D-213-39
- SAFE, SMOOTH, AND 100% LEGAL HORSEPOWER
Frequently Asked Questions
Is this system emissions legal in all states?
Yes. This complete system is 50-State legal under CARB Executive Order D-213-39.
Does the kit include tuning?
Yes. This is a fully calibrated complete system, including PCM handling for proper tuning.
