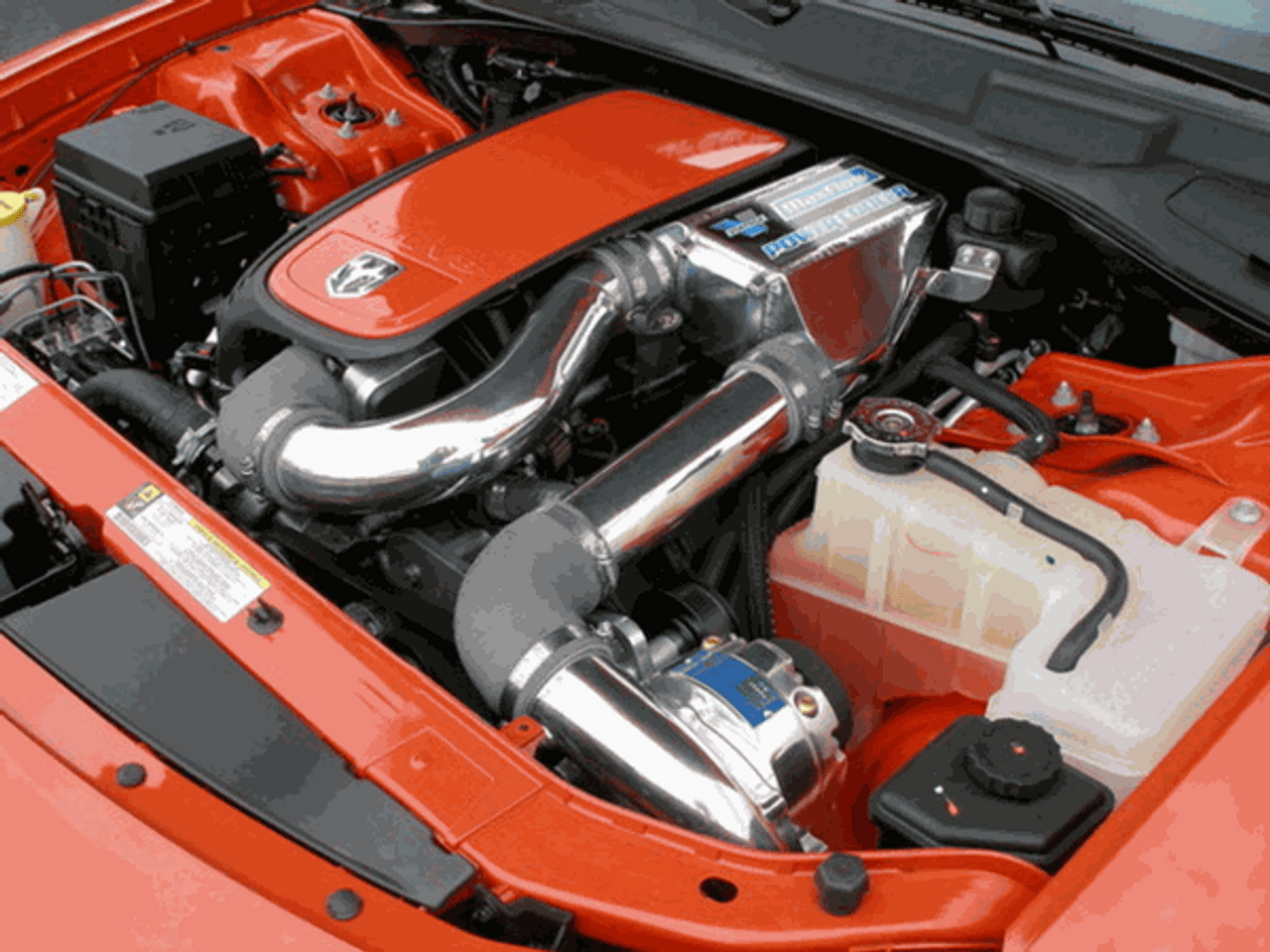

Vortech Supercharger System w/ V-3 Si-Trim & Charge Cooler - Satin (2006-2007 5.7L Charger / Magnum / 300C HEMI) 4CL218-010L
CARB-Legal V-3 Si-Trim Supercharger System for 2006-2007 5.7L HEMI Cars
The Vortech Superchargers Complete Supercharger System (PN 4CL218-010L) is a fully calibrated, 50-state emissions-legal centrifugal supercharger package engineered for 2006-2007 Chrysler and Dodge vehicles equipped with the 5.7L HEMI. Featuring Vortech's advanced V-3 Si-Trim centrifugal supercharger and an air-to-water, dual-pass charge cooler, this satin-finish system delivers substantial, repeatable power gains while maintaining OEM-level drivability and emissions compliance.
On an otherwise stock 5.7L HEMI, this system increases output to approximately 432 horsepower and 471 lb-ft of torque with 6 PSI of boost at factory redline using California 91-octane fuel. The result is a dramatic performance increase without sacrificing daily usability or long-term reliability.
V-3 Si-Trim Supercharger Technology
The V-3 Si-Trim is the result of continued development in Vortech's engineering lab. The "Si" designation stands for improved, incorporating a patented oil control system and an advanced centrifugal compressor stage. With an industry-leading 78% adiabatic efficiency (SAE J1723), the V-3 Si generates less heat, reduces parasitic drive loss, and delivers more net power compared to lower-efficiency designs. Reduced heat output also contributes to improved durability.
Complete, Fully Calibrated Bolt-On System
This complete system includes Vortech's handheld programmer, which reflashes the factory ECM with a safe, Vortech-engineered calibration optimized for 91-octane fuel. Fuel system upgrades are included, making this a true bolt-on solution that does not require custom tuning to achieve advertised performance.
Included Components & Features
- Vortech V-3 Si-Trim gear-driven, self-lubricated centrifugal supercharger
- High-efficiency impeller and housing developed in Vortech's SAE J1723-compliant test cell
- Manifold boost pressure: 6 PSI @ factory redline on a stock engine
- Handheld programmer with Vortech ECM calibration for 91-octane fuel
- Fuel system upgrades including high-flow fuel injectors and 2-bar MAP sensor
- Integrated dual-pass air-to-water charge cooler system with:
- Closed-loop cooling configuration
- Stand-alone electric water pump
- Charge cooler reservoir tank
- Front-mounted heat exchanger
- High-flow bypass valve for surge-free compressor operation
- Heat-resistant silicone couplers with stainless steel clamps
- Billet aluminum mounting bracketry for factory-installed appearance
- Complete bolt-on system including all belts, pulleys, and reusable high-flow air filter
Optional Parts & Accessories
- Maxflow Race Bypass Valve Upgrades (2005-2010 5.7L / 6.1L HEMI)
- 4CL212-060 - Satin Finish Race Bypass Upgrade with Tube
- 4CL212-068 - Polished Finish Race Bypass Upgrade with Tube
- Supercharger Pulleys
- 20mm Cog Supercharger Pulleys: 4GR033-034, 4GR033-032, 4GR033-030, 4GR033-028
- 20mm Cog Jackshaft Pulleys: 4GR032-034, 4GR032-032, 4GR032-030
- Jackshaft Serpentine Pulleys: 2A036-348, 2A036-333, 2A036-312, 2A036-287, 2A036-262
- Bypass / Blowoff Valves
- 8D204-111 - Maxflow Race Blowoff Valve, Black Anodized
- 8D204-113 - Maxflow Race Blowoff Valve, Clear Anodized
Installation
- Estimated installation time: 10-14 hours
- Designed as a complete bolt-on system with no permanent vehicle modifications
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 4CL218-010L
- System Type: Complete Supercharger System
- Supercharger: V-3 Si-Trim
- Finish: Satin
- Boost Level: 6 PSI
- Output: ~432 HP / 471 lb-ft (stock engine reference)
- Cooling: Air-to-water dual-pass charge cooler
Emissions & Compliance
- 50-State Emissions Legal
- CARB Executive Order (E.O.) #: D-213-31
FAQs
- Is this system street legal in all 50 states?
Yes. This complete system is CARB-approved under E.O. D-213-31 and is legal for street use nationwide. - Can this system be upgraded for more boost later?
Yes. Optional pulleys and bypass upgrades are available for custom performance goals.
Fitment
- 2006 Dodge Charger R/T 5.7L HEMI
- 2007 Dodge Charger R/T 5.7L HEMI
- 2006 Dodge Magnum R/T 5.7L HEMI
- 2007 Dodge Magnum R/T 5.7L HEMI
- 2006 Chrysler 300C 5.7L HEMI
- 2007 Chrysler 300C 5.7L HEMI
