Vortech Supercharger System w/ V-3 Si-Trim & Charge Cooler - Satin (2006-2010 Jeep Grand Cherokee SRT8) (4CK218-020L)
CARB-Legal V-3 Si-Trim Supercharger System for 6.1L Jeep SRT8

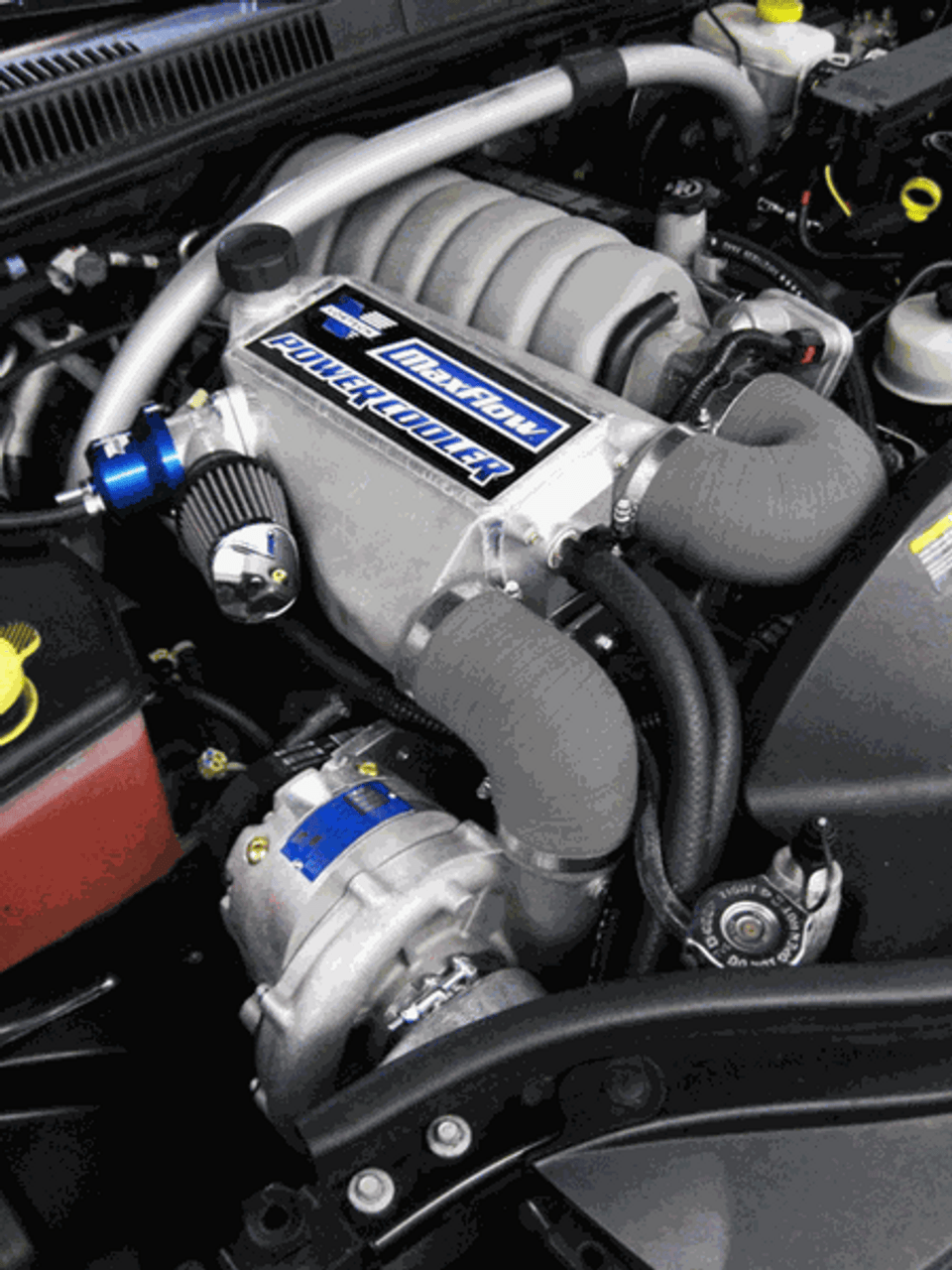

The Vortech V-3 Si-Trim Supercharger System for the 2006-2010 Jeep Grand Cherokee SRT8 is a complete, fully calibrated, and 50-state emissions-legal solution engineered to deliver substantial, reliable power gains while maintaining factory drivability. Designed specifically for the 6.1L HEMI platform, this system utilizes Vortech's advanced V-3 Si-Trim centrifugal supercharger paired with an air-to-water dual-pass charge cooler for consistent performance and thermal control.
At the factory redline, this system increases output to an impressive 560 horsepower and 510 lb-ft of torque at 8 PSI on an otherwise stock engine using 91-octane fuel. Vortech's centrifugal supercharger technology delivers superior airflow efficiency compared to roots-style blowers, producing more usable power with less heat and reduced parasitic loss.
The included V-3 Si-Trim supercharger features Vortech's patented oil control system and a state-of-the-art compressor stage developed in an SAE J1723-compliant supercharger test cell. With an industry-leading 78% adiabatic efficiency, the Si-Trim generates cooler discharge temperatures, improved durability, and strong power delivery across the RPM range - all in a compact, lightweight package that weighs significantly less than competing designs.
Included Components & System Features
- Vortech V-3 Si-Trim gear-driven, self-lubricated centrifugal supercharger
- High-efficiency impeller and housing developed in an SAE J1723-compliant test cell
- 8 PSI manifold boost pressure at factory redline on stock engine
- Handheld programmer with safe Vortech calibration for 91-octane fuel
- Fuel system upgrades including high-flow fuel injectors, 2-bar MAP sensor, and fuel pump voltage booster
- Integrated dual-pass air-to-water charge cooler with closed-loop cooling system
- Stand-alone intercooler pump, reservoir tank, and front-mounted heat exchanger
- High-flow bypass valve for surge-free compressor operation
- Heat-resistant silicone couplers with premium stainless steel clamps
- Billet aluminum mounting brackets for factory-style fitment and rigidity
- Complete bolt-on system with all required belts, pulleys, and reusable high-flow air filter
Performance Highlights
- Peak Output: 560 HP / 510 lb-ft torque
- Boost Pressure: 8 PSI @ factory redline
- Supercharger Efficiency: 78% adiabatic (SAE J1723)
- Improved throttle response and power delivery across the RPM band
- Potential for increased fuel economy during normal driving conditions
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 4CK218-020L
- Supercharger: V-3 Si-Trim
- Finish: Satin
- Charge Cooling: Air-to-water, dual-pass
- Fuel Requirement: 91 Octane
- Emissions: 50-State CARB Legal
Installation
- Estimated installation time: 8-10 hours
- Complete bolt-on system with no permanent vehicle modifications required
CARB Compliance
- 50-State Emissions Legal
- CARB Executive Order (E.O.) #: D-213-31
Optional Accessories
- Supercharger Pulleys (20mm Cog): 4GR033-034, 4GR033-032, 4GR033-030, 4GR033-028
- Jackshaft 20mm Cog Pulleys: 4GR032-034, 4GR032-032, 4GR032-030
- Jackshaft Serpentine Pulleys: 2A036-348, 2A036-333, 2A036-312, 2A036-287, 2A036-262
- Maxflow Race Blowoff Valves: 8D204-111 (Black), 8D204-113 (Clear)
FAQs
- Is this system safe for a stock 6.1L SRT8 engine?
Yes. This complete system is fully calibrated for stock engines and delivers safe, repeatable power using the supplied tune and supporting fuel components. - Is this system emissions legal?
Yes. This kit is 50-state emissions legal and carries CARB Executive Order D-213-31.
