Vortech V-30 112A Supercharger Head Unit - CCW - Black 2G479-064
V-30 112A Black CCW Centrifugal Supercharger Head Unit for Extreme Racing

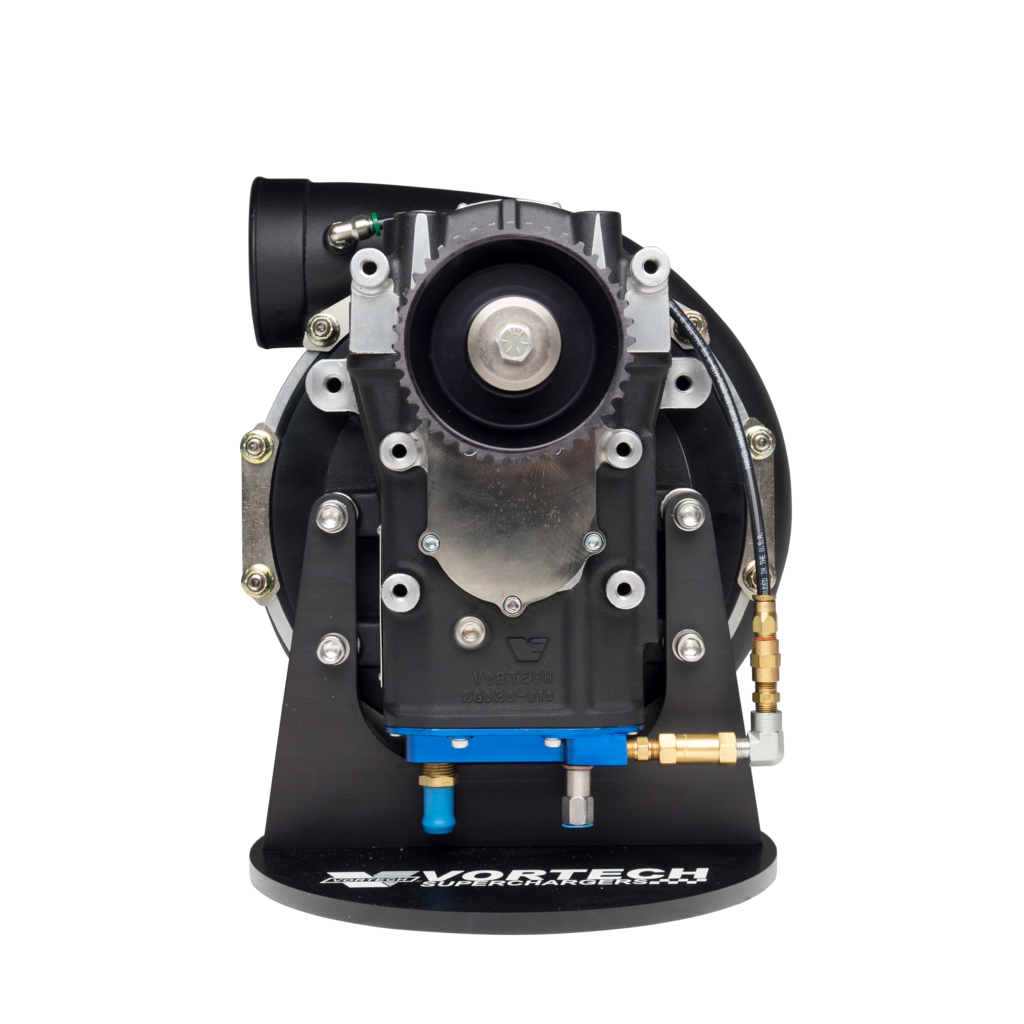

The Vortech V-30 112A Supercharger Head Unit (PN 2G479-064) is a next-generation, race-engineered centrifugal supercharger designed for extreme high-horsepower applications exceeding 1,000 HP. This version features counterclockwise (CCW) rotation and a durable black finish, making it ideal for specialized belt-drive configurations in drag racing and marine environments.
The V-30 platform replaces the earlier V-28 112 series and represents a clean-sheet compressor design developed using Vortech's SAE J1723-compliant supercharger test cell. It incorporates years of racing development to deliver superior airflow efficiency, lower discharge temperatures, and exceptional durability compared to older or competing high-boost superchargers.
Advanced V-30 Compressor Architecture
At the heart of the V-30 112A is a technologically advanced, 5-axis machined billet impeller paired with a high-diffusion compressor housing. This design maximizes airflow while reducing parasitic losses and heat generation, even at extreme boost levels common in competitive racing.
The patented V-30 impeller shaft support system is engineered to withstand the intense shaft speeds, acceleration loads, and sustained stress associated with high-horsepower drag racing. This same architecture has proven durable enough for demanding offshore marine racing applications.
High-Efficiency Performance for Competitive Advantage
While some superchargers can achieve comparable boost pressures, they often do so with higher discharge temperatures and increased parasitic power loss. The V-30's higher efficiency allows racers to achieve cooler, denser intake air, resulting in lower elapsed times and higher trap speeds compared to less efficient compressor designs.
The extreme durability of the V-30 series allows a single head unit to survive multiple quarter-mile passes under conditions that often cause competing superchargers to wear rapidly or require replacement after only one or two runs.
Modular Design & Lubrication Options
All V-30 series superchargers share a 4.21:1 internal step-up ratio and feature a modular design that supports a wide range of compressor stages. Like Vortech's V-1 family, the V-30 platform allows racers to tailor airflow characteristics to specific engine combinations and power goals.
The V-30 is designed for engine oil lubrication, though racers may fabricate auxiliary oiling systems depending on installation requirements and racing conditions.
Performance Specifications
- Internal Step-Up Ratio: 4.21:1
- Maximum Speed: 65,000 RPM
- Maximum Boost: 35+ PSI
- Maximum Airflow: 3,500+ CFM
- Maximum Power Capability: 2,000+ HP
- Peak Efficiency: 75%+
Dimensional Specifications
- Discharge Outside Diameter: 4.0"
- Inlet Outside Diameter: 6.0"
- Inducer Diameter: 4.399"
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 2G479-064
- Supercharger Series: V-30
- Compressor Stage: 112A
- Rotation: Counterclockwise (CCW)
- Finish: Black
- Lubrication: Engine oil lubricated (auxiliary system optional)
Emissions & Legal Notice
- NOT AVAILABLE OR LEGAL FOR SALE IN CALIFORNIA
- For off-road, competition, and racing use only
- Installation on emissions-controlled vehicles driven on public roads may violate U.S. federal emissions law
