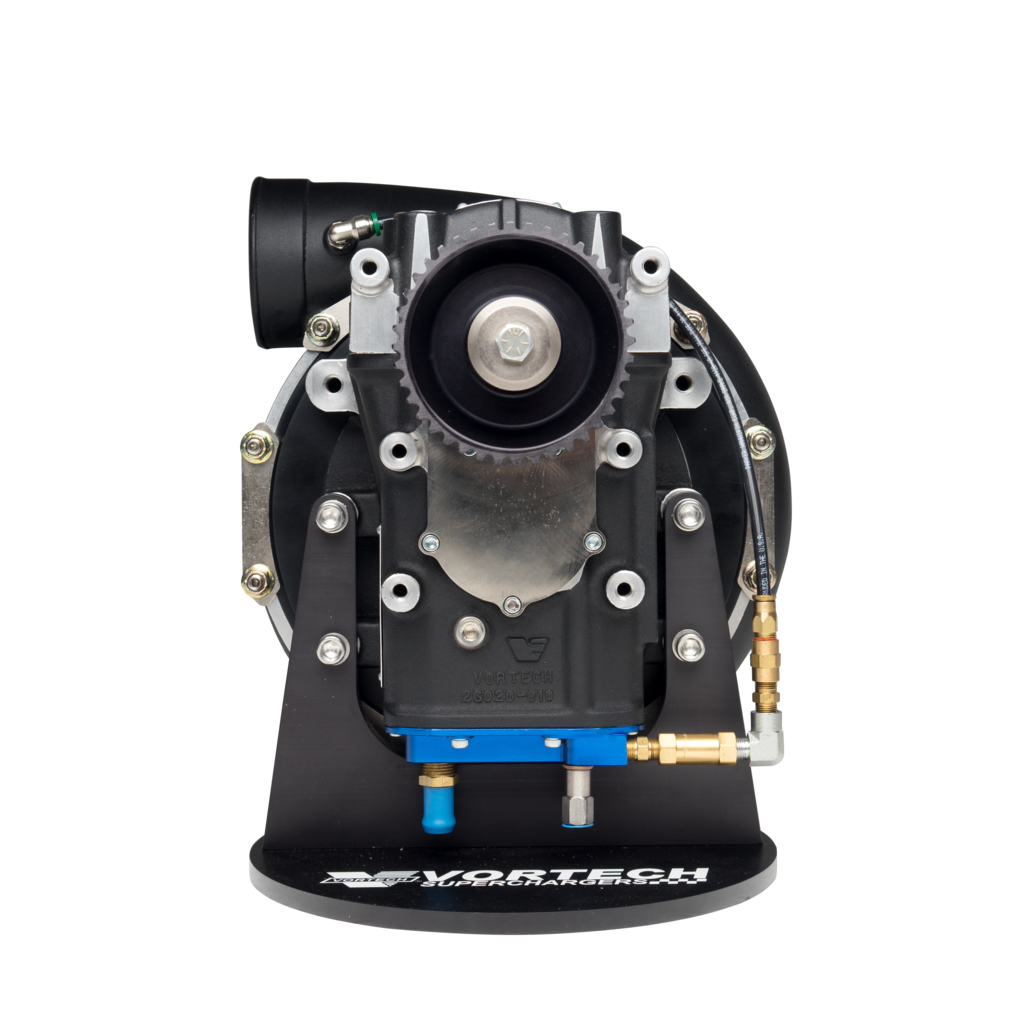

Vortech V-30 123A Supercharger - CCW Rotation - Straight Discharge - Black (2G479-044)
V-30 123A: Maximum Airflow and Efficiency for Extreme Drag Racing
The Vortech V-30 123A Supercharger is a purpose-built, next-generation race compressor designed to replace the previous V-28 123. Engineered for serious competition where airflow, boost control, and durability are critical, the 123A supports 45+ PSI and is recommended for racers targeting 6-second ETs in Super Street and Outlaw-style classes.
At the core of the V-30 123A is a high-efficiency, 5-axis CNC-machined billet impeller paired with a high-diffusion compressor housing, both developed and validated in Vortech's SAE J1723-compliant supercharger test cell. This clean-sheet V-30 design incorporates years of Vortech racing compressor knowledge, including a patented impeller shaft support system engineered to withstand the extreme speeds and acceleration loads associated with high-horsepower drag racing and demanding offshore marine environments.
On-track results back up the engineering. The V-30 123A has powered Vortech-supercharged race cars to mid-6 second quarter-mile passes at over 212 mph in PSCA Outlaw 10.5. With a published 83%+ peak efficiency, the 123A is designed to deliver higher boost at cooler discharge temperatures with reduced parasitic power loss compared to less efficient competitors - helping racers achieve lower ETs and higher trap speeds.
The extreme durability of the V-30 platform allows a single head unit to withstand multiple quarter-mile passes under conditions that often cause competing superchargers to require replacement after only one or two runs, making it a proven choice for top-tier racing programs.
Key Features
- Next-generation V-30 123A compressor replacing the V-28 123
- 5-axis CNC-machined billet impeller engineered for extreme efficiency
- High-diffusion compressor housing developed in an SAE J1723-compliant test cell
- Clean-sheet design aimed at over 1,000 HP racing applications
- Patented impeller shaft support system for extreme speed and acceleration loads
- Modular V-30 architecture supporting multiple compressor stages
- 4.21:1 internal step-up ratio shared across all V-30 superchargers
- Engine oil lubricated (auxiliary oiling systems can be fabricated)
- Designed for extreme drag racing applications up to 45+ PSI
Performance Specifications
- Internal Step-Up Ratio: 4.21:1
- Maximum Speed: 65,000 RPM
- Maximum Boost: 45+ PSI
- Maximum Airflow: 4,000+ CFM
- Maximum Power: 2,800+ HP
- Peak Efficiency: 83%+
Dimensions
- Discharge OD: 4.0"
- Discharge ID: 3.75"
- Inlet OD: 6.0"
- Inducer Diameter: 4.843"
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 2G479-044
- Series: V-30
- Compressor Stage: 123A
- Rotation: Counterclockwise (CCW)
- Discharge: Straight
- Finish: Black
- Lubrication: Engine Oil
Important Notes
- NOT AVAILABLE OR LEGAL FOR SALE IN CALIFORNIA
FAQs
- What type of racing is the V-30 123A designed for?
The V-30 123A is intended for extreme drag racing applications, including Super Street and Outlaw-style classes where racers are targeting 6-second ETs and very high boost levels. - Why is efficiency important at this power level?
Higher efficiency allows the V-30 123A to produce high boost with cooler discharge temperatures and less parasitic power loss, helping achieve lower ETs and higher trap speeds compared to less efficient superchargers.
