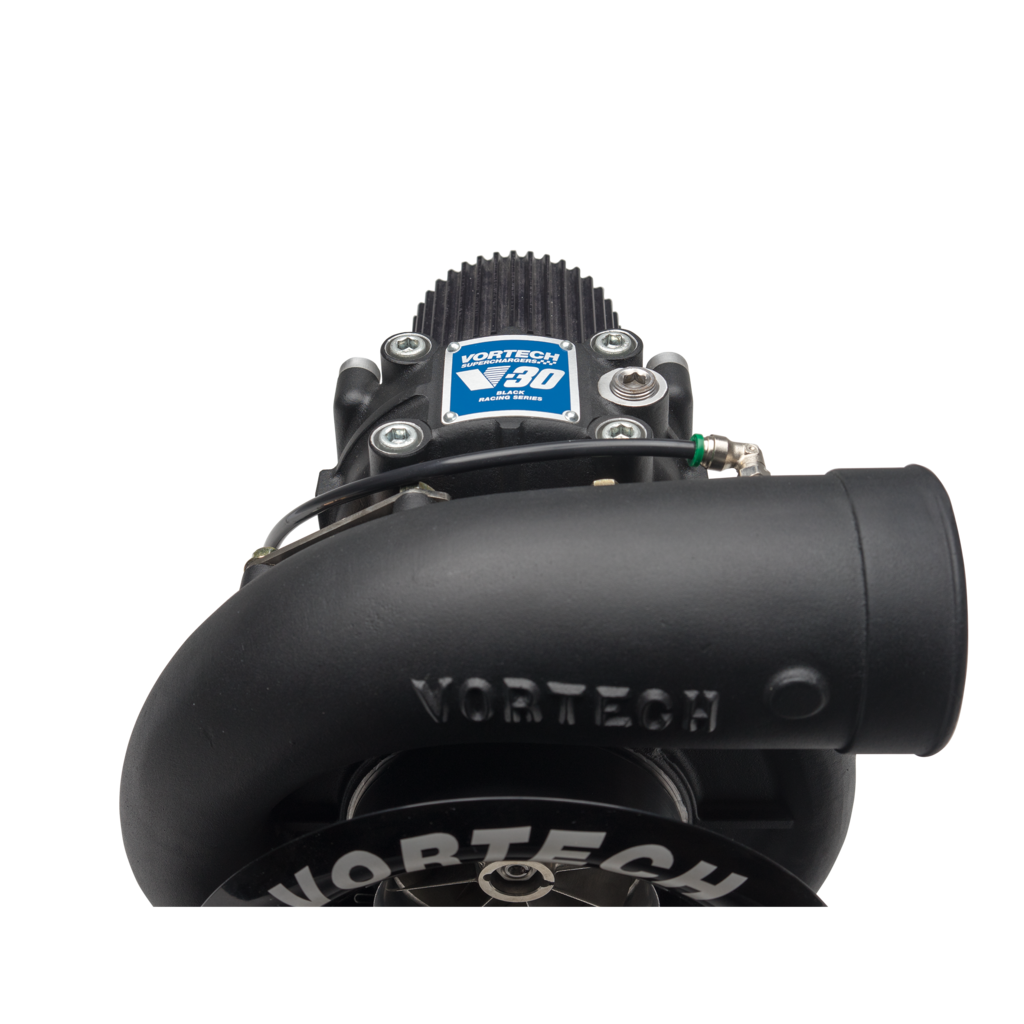

Vortech V-30 94A Supercharger Head Unit - CCW Rotation - Straight Discharge - Black (2G459-014)
V-30 94A Race-Driven Supercharger for Extreme CFM and Boost Demands
The Vortech V-30 94A Supercharger Head Unit is the next evolution in centrifugal compressor development, engineered to replace the outgoing V-27 YSi-B. Built for vehicles with highly modified engines and extreme airflow requirements, the V-30 94A delivers race-proven performance with advanced compressor technology designed to thrive in sustained high-boost environments.
At the core of the V-30 94A is a high-efficiency, 5-axis CNC-machined billet impeller paired with a high-diffusion compressor housing, both developed and validated in Vortech's SAE J1723-compliant supercharger test cell. This architecture provides exceptional airflow capability, stable boost delivery, and outstanding efficiency at extreme shaft speeds.
The V-30 Series is purpose-built for extreme racing applications and features Vortech's exclusive D-port volute to improve discharge efficiency and airflow stability. Due to the massive airflow capability of the V-30 platform, use of a Vortech Racing Bypass Valve or larger is required to properly manage discharge flow. All V-30 superchargers share a 4.21:1 internal step-up ratio and are engine oil lubricated, though custom auxiliary oiling systems may be fabricated if required.
This configuration is supplied in a heavy-duty (H/D) setup featuring high-speed ceramic hybrid ball bearings, making it ideal for sustained high-RPM race use. The H/D configuration is also compatible with cog pulley and Gilmer-style drive systems, ensuring reliability in demanding competition environments.
Key Features
- Next-generation V-30 design replacing the V-27 YSi-B
- 5-axis CNC-machined billet impeller for strength and efficiency
- High-diffusion compressor housing developed in an SAE J1723-compliant test cell
- Exclusive D-port volute for improved discharge efficiency
- Designed for highly modified engines with extreme airflow demands
- Requires Vortech Racing Bypass Valve or larger
- 4.21:1 internal step-up ratio shared across the V-30 series
- Engine oil lubricated (auxiliary oiling systems can be fabricated)
- Heavy-duty configuration with ceramic hybrid ball bearings
- Compatible with cog pulley and Gilmer-style drive systems
Performance Specifications
- Internal Step-Up Ratio: 4.21:1
- Maximum Speed: 65,000 RPM
- Maximum Boost: 30+ PSI
- Maximum Airflow: 1,950+ CFM
- Maximum Power: 1,400+ HP
- Peak Efficiency: 79%+
Dimensions
- Discharge OD: 3.0"
- Inlet OD: 4.0"
- Inducer Diameter: 3.70"
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 2G459-014
- Series: V-30
- Compressor Stage: 94A
- Rotation: Counterclockwise (CCW)
- Discharge: Straight
- Finish: Black
- Lubrication: Engine Oil
Important Notes
- NOT AVAILABLE OR LEGAL FOR SALE IN CALIFORNIA
- V-30 superchargers require a Vortech Racing Bypass Valve or larger to manage discharge airflow
FAQs
- What type of builds is the V-30 94A best suited for?
The V-30 94A is designed for highly modified race engines requiring extreme airflow, high boost capability, and durability in competition environments. - Why does the V-30 series require a Racing Bypass Valve?
The V-30 platform produces extremely high discharge flow, requiring a Racing Bypass Valve or larger to maintain airflow control and stable compressor operation.
