ProCharger High Output Supercharger Kit F-1X - No Intercooler (LT1 / LT4 Engine Swap Serpentine) - 1LT100-F1X
F-1X Power for Serious LT1 and LT4 Engine Swap Builds

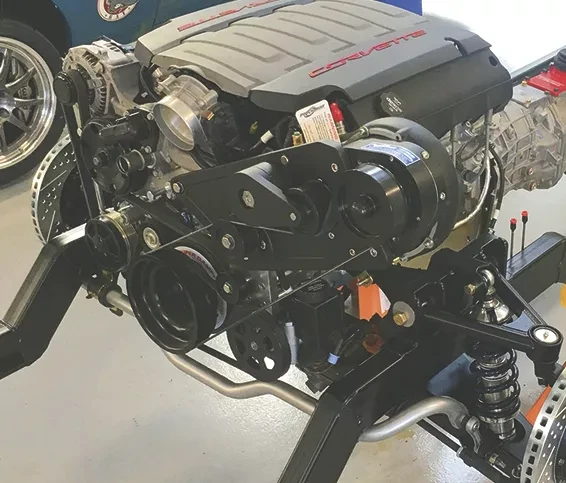

The ProCharger High Output LT Classic Serpentine Supercharger Kit F-1X head unit is built for LT1 and LT4 engine swap applications targeting extreme airflow and high horsepower capability. Based on ProCharger's proven Camaro and CTS-V bracket system, this system delivers race-ready performance with the flexibility needed for custom swap builds.
The F-1X centrifugal supercharger is designed for high-efficiency airflow and strong top-end power, making it a go-to option for serious street, strip, and race combinations.
Flexible Mounting Options for Custom LT Builds
The LT Classic Serpentine system is engineered for applications where traditional accessory drives may not fit, offering multiple mounting configurations.
- Conventional driver side mount (8- or 10-rib)
- Reverse driver side mount (8- or 10-rib)
- Driver side truck-style mount (6-rib shared drive)
- Passenger side truck-style mount (8-rib)
This flexibility allows clean integration into a wide range of engine bay layouts and custom swap platforms.
F-1X Head Unit - High Efficiency, High Output
The F-1X supercharger is engineered for improved efficiency and high airflow, making it ideal for builds targeting substantial horsepower gains.
- High-efficiency compressor design for improved performance
- Strong top-end power delivery
- Ideal for aggressive street, strip, and race builds
- Self-contained oiling system - no external oil lines required
Built for Modern LT Swap Performance
LT swaps continue to grow in popularity, and this system is designed to deliver reliable boost while supporting high-performance upgrades.
- Compatible with LT1 and LT4 engine swaps
- Supports aftermarket balancers for high horsepower applications
- Provision for adding a power steering pump
- Based on proven ProCharger bracket systems
Non-Intercooled Configuration with Upgrade Potential
This configuration is supplied without an intercooler, allowing flexibility for custom builds. Air-to-air intercoolers and tubing are available as upgrades to support higher boost levels and horsepower goals.
Performance Highlights
- F-1X head unit for high-efficiency airflow and horsepower
- Designed for high-performance LT1 and LT4 builds
- Multiple mounting configurations for swap flexibility
- Expandable system with higher-output upgrades available
- ProCharger centrifugal technology for consistent boost delivery
Key Features
- F-1X centrifugal supercharger head unit
- Supercharger drive system (rib count depends on mounting style)
- Supercharger bracket and accessory brackets included
- SC belt tensioner included
- ProFlow blow-off valve included
- Optional air-to-air intercooler (upgrade)
- Charge tubing included for intercooled kits only
- Self-contained oiling system
- Designed for LT1 and LT4 engine swap applications
- Made in the USA
What's Included in the LT Classic Serpentine Kit
- F-1X supercharger (satin finish)
- Supercharger drive system (rib count based on configuration)
- Supercharger bracket
- Accessory brackets
- Belt tensioner
- ProFlow blow-off valve
- Optional air-to-air intercooler (upgrade)
- Charge piping included with intercooled systems only
- Base Kit Part Number: 1LT100
Available Upgrade Options
- Black or polished supercharger finish, brackets, carb hat, and tensioner
- Helical gear set for reduced noise
- D-1SC-1, F-1D, F-1, F-1A, F-1A-94, F-1C, F-1R, F-1X, or F-2 supercharger upgrades
- 10-rib dedicated drive upgrade
- Intercooler upgrades for higher horsepower
- Race blow-off valve upgrade
Quick Specs
- Manufacturer: ProCharger
- Product Type: High Output Supercharger System
- Head Unit: F-1X
- Configuration: Non-intercooled
- Drive System: Serpentine (6-rib, 8-rib, or 10-rib depending on mount)
- Application: LT1 / LT4 engine swap
- Mounting Options: Multiple configurations available
- Fuel Compatibility: EFI
- Base Kit Part Number: 1LT100
- System Part Number: 1LT100-F1X
FAQs
What makes the F-1X different from other F-1 series units?
The F-1X features improved compressor efficiency, delivering strong airflow and power while maintaining better overall performance across the RPM range.
Can I upgrade this system later?
Yes, the system supports intercooler upgrades, higher boost setups, and larger head units, allowing your build to evolve over time.
