ProCharger High Output Cog Race Intercooled Supercharger Kit F-1X (LS Engine Swap Cog - EFI and Carbureted) 1LS200-F1X-I

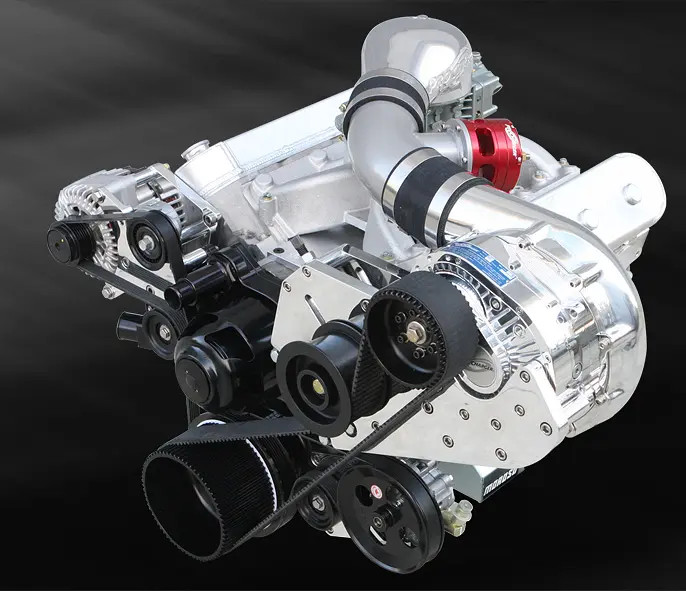

ProCharger LS cog drive intercooled F-1X race supercharger kit LS engine swap

Image is a representation of this item.
Actual item may vary.

Item#:
1LS200-F1X-I
Regular price: $11,613.85
Sale price: $10,099.00
(No reviews yet) Write a Review

ProCharger High Output Intercooled Cog Race Supercharger Kit F-1X (LS Engine Swap Cog EFI & Carbureted) - 1LS200-F1X-I

Intercooled Cog Drive Power for LS Race Builds

The ProCharger High Output Intercooled Cog Race Supercharger Kit F-1X head unit is engineered for LS engine swap cog drive applications that demand maximum durability, consistent boost, and efficient high-horsepower performance. Designed specifically for drag racing and extreme duty cycles, this system combines a 50mm cog/Gilmer drive with air-to-air intercooling for improved power and reliability.

Compatible with both EFI and carbureted setups, this system is a serious foundation for LS builds targeting high boost and race-level performance.

50mm Cog Drive System for Zero Slip Boost Control

At the core of this system is a rugged 50mm cog/Gilmer dedicated drive belt, eliminating slip and ensuring precise, repeatable boost delivery.

  • 50mm cog drive system for maximum belt engagement
  • Zero slip under high boost and RPM conditions
  • Consistent boost delivery pass after pass
  • Ideal for drag racing and high-horsepower builds

F-1X Head Unit - High Efficiency and Advanced Airflow

The F-1X centrifugal supercharger delivers improved efficiency and airflow compared to earlier F-series designs, making it an excellent choice for modern high-performance LS builds.

  • Improved compressor efficiency and airflow capability
  • Strong top-end horsepower potential
  • Designed for high-boost and high-RPM operation
  • Self-contained oiling system - no external oil lines required

Air-to-Air Intercooling for Maximum Performance

This configuration includes air-to-air intercooling and the required tubing for intercooled systems, helping reduce intake temperatures and improve performance consistency.

  • Air-to-air intercooler included
  • Charge tubing included for intercooled kits only
  • Improved intake air temperature control
  • Supports higher boost levels and aggressive tuning

Built for Drag Racing Durability

The LS Cog Drive Race Supercharger Kit is designed for the unique demands of dedicated drag racing, where reliability and consistency are essential.

  • Engineered for extreme high-boost environments
  • Designed for repeatable performance under load
  • Compatible with accessories such as A/C and power steering
  • Supports aggressive tuning and high horsepower setups

Performance Highlights

  • F-1X head unit for advanced airflow and efficiency
  • 50mm cog/Gilmer belt drive system
  • Air-to-air intercooler included
  • Designed for LS engine swap cog drive applications
  • Compatible with EFI and carbureted setups

Key Features

  • F-1X centrifugal supercharger head unit
  • 50mm cog/Gilmer dedicated drive system
  • Supercharger mounting bracket included
  • Supercharger belt tensioner included
  • Race blow-off valve included
  • Air-to-air intercooler system included
  • Charge tubing included for intercooled kits only
  • Satin finish supercharger (standard)
  • Designed for LS engine swap cog drive configurations
  • Made in the USA

What's Included in the LS Cog Drive Race Supercharger Kit

  • F-series supercharger (satin finish)
  • 50mm cog/Gilmer dedicated drive belt
  • Supercharger bracket
  • Supercharger belt tensioner
  • Race blow-off valve
  • Air-to-air intercooler included
  • Charge piping included for intercooled kits only
  • Base Kit Part Number: 1LS200

Available Upgrade Options

  • Black or polished supercharger finish, brackets, carb hat, and tensioner
  • Carb hats in various profiles
  • Head unit upgrades: F-1, F-1D, F-1A, F-1A-94, F-1C, F-1R, F-1X, F-2
  • Intercooler upgrades that support higher horsepower

Additional Notes

  • Specify with or without power steering when using ProCharger accessory brackets
  • Pinning of the crank is recommended
  • Compatible with mechanical or electric water pump
  • Designed to work with Muscle Rods motor mounts or compatible setups
  • Not compatible with Corvette-style water pump
  • Specify iron block, aluminum block, and tall deck
  • LS7 engine requires modifications (not supplied)
  • Not a direct bolt-on for VVT engines

Quick Specs

  • Manufacturer: ProCharger
  • Product Type: Intercooled Cog Drive Race Supercharger System
  • Head Unit: F-1X
  • Configuration: Intercooled
  • Drive System: 50mm cog/Gilmer dedicated drive
  • Application: LS engine swap cog drive
  • Fuel Compatibility: EFI and carbureted
  • Intercooler: Air-to-air included
  • Blow-Off Valve: Race blow-off valve included
  • Base Kit Part Number: 1LS200
  • System Part Number: 1LS200-F1X-I

FAQs

What makes the F-1X a strong choice for LS builds?

The F-1X offers improved efficiency and airflow compared to earlier F-series units, making it ideal for modern high-horsepower combinations.

Why choose an intercooled cog drive system?

The cog drive ensures zero slip, while intercooling reduces intake temperatures, giving you consistent, reliable performance at higher boost levels.
