Paxton Superchargers NOVI 2200SL Head Unit - 45° Tilt - Reverse Rotation - Straight Discharge - Satin Finish 1016156

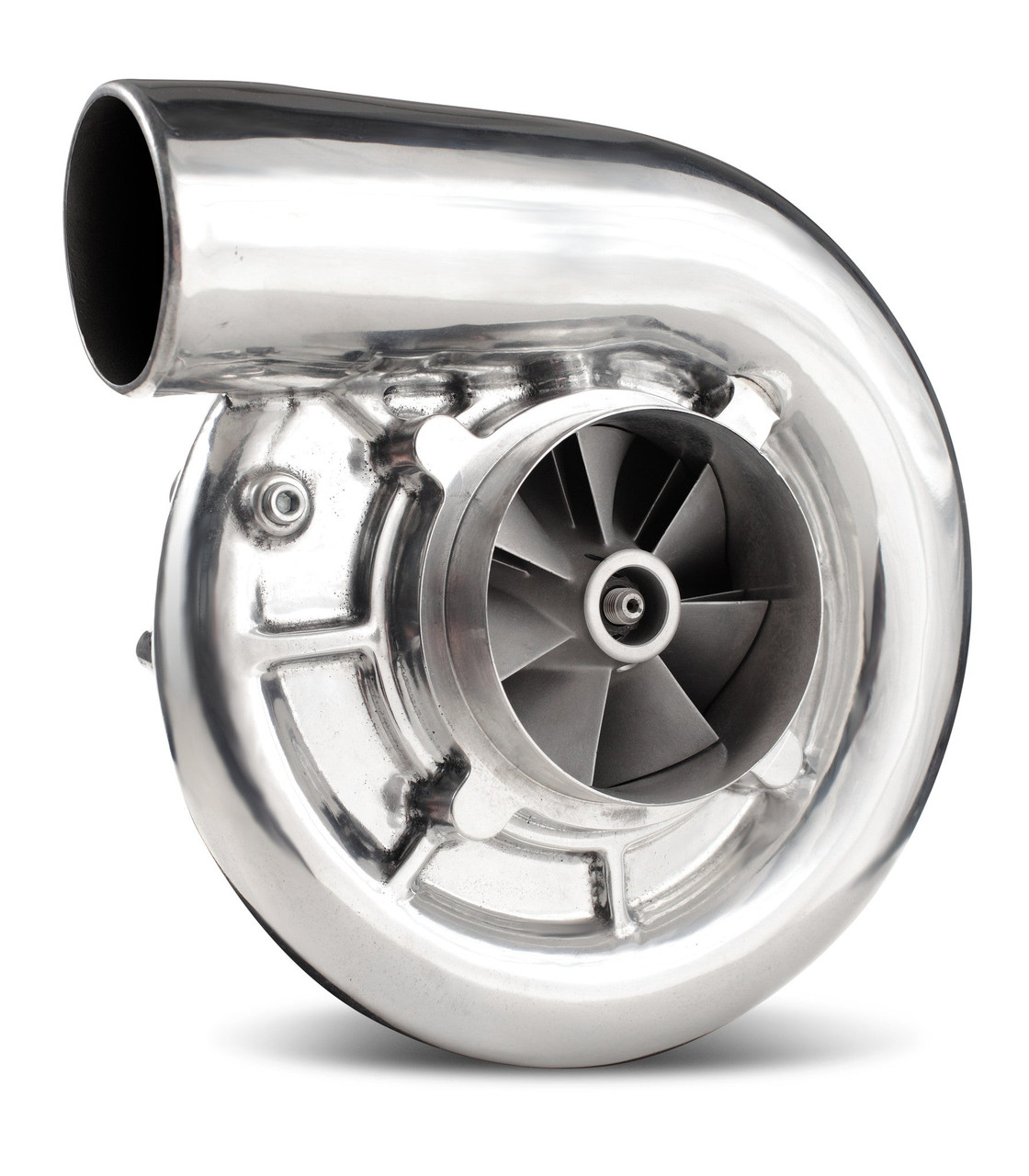

Satin NOVI 2200SL Reverse-Rotation Head Unit with 45° Tilt
The Paxton Superchargers NOVI 2200SL Head Unit (PN 1016156) is a high-performance centrifugal supercharger engineered for higher-output street and strip applications, with particular suitability for modern modular Ford Mustang engines. This configuration features reverse rotation, a 45-degree tilted mounting orientation, and a straight discharge, making it ideal for custom installations requiring specific airflow routing and bracket compatibility.
Finished in a durable satin coating, this head unit combines race-proven durability with excellent efficiency, supporting aggressive power levels while maintaining manageable discharge temperatures.
NOVI 2200SL Supercharger Technology
The NOVI 2200SL represents Paxton's advanced centrifugal compressor design, delivering a balance of airflow capacity, efficiency, and reliability. Featuring Paxton's exclusive D-port volute, this supercharger improves airflow efficiency and reduces turbulence at higher flow rates.
With a peak efficiency of approximately 76%, the NOVI 2200SL generates less heat per pound of boost compared to lower-efficiency designs, reducing parasitic loss and improving overall engine durability under sustained boost conditions.
Reverse Rotation & 45° Tilt Configuration
This head unit is configured with reverse rotation and a 45-degree tilt, allowing compatibility with specific Paxton and Vortech mounting bracket systems and custom engine bay layouts. The straight discharge outlet supports high-flow charge piping designs commonly used in performance street and strip builds.
The NOVI 2200 platform is designed to fit most existing Paxton and Vortech bracketry, making it a flexible option for upgrades or custom supercharger system designs.
High-Output Capability
While other superchargers may achieve similar boost levels, the NOVI 2200SL does so with lower discharge temperatures and reduced parasitic power loss. This translates directly into improved real-world power delivery, faster acceleration, and greater consistency pass after pass.
Depending on airflow demands, this unit may require the use of a Vortech Racing Bypass Valve or larger to properly manage discharge flow at higher power levels.
Performance Specifications
- Maximum Power Capability: Up to 1,000 HP
- Peak Efficiency: 76%
- Maximum Boost: 27 PSI
- Maximum Airflow: 1,450 CFM
- Maximum Speed: 52,000 RPM
- Internal Step-Up Ratio: 3.61:1
Dimensions
- Inlet OD: 4.0"
- Discharge OD: 3.0"
- Discharge ID: 2.64"
- Inducer Diameter: 3.486"
Quick Specs
- Manufacturer: Paxton Superchargers
- Part Number: 1016156
- Supercharger Model: NOVI 2200SL
- Rotation: Reverse
- Orientation: 45° Tilt
- Discharge Style: Straight
- Finish: Satin
- Maximum Power: 1,000 HP
Emissions & Legal Notice
- NOT AVAILABLE OR LEGAL FOR SALE IN CALIFORNIA
- For off-road and competition use only
- Installation on emissions-controlled vehicles driven on public roads may violate U.S. federal emissions law
