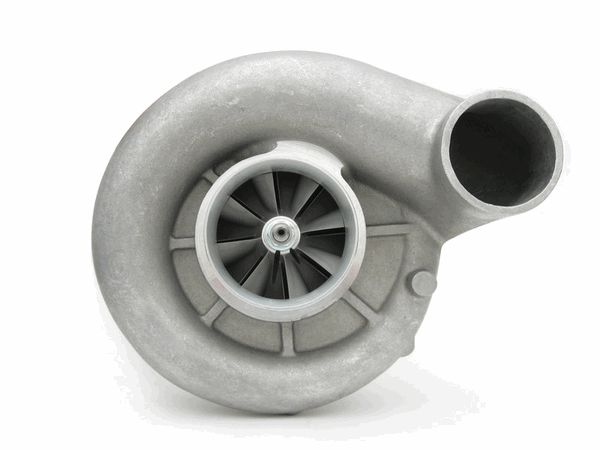

Paxton NOVI-1200 Supercharger Head Unit - Clockwise Rotation - Curved Discharge - Polished (1016118-P)
Polished NOVI-1200 Head Unit for High-Boost Street & Strip Builds
The Paxton NOVI-1200 is a high-efficiency centrifugal supercharger head unit designed for today's improved-breathing, high-power street and strip engines. With vastly improved flow and efficiency at higher boost levels, the NOVI-1200 delivers strong power potential while maintaining smooth, quiet operation thanks to its optimized helical gear design.
Equivalent to the Vortech V-2 Si model, this NOVI-1200 features an advanced gear profile and a 3.61:1 internal step-up ratio. It is capable of supporting up to 775 HP on properly modified engines, with an extraordinary 78% peak efficiency (performance specs apply to units equipped with a standard gearcase).
Key Features
- Ideal for latest-generation, improved-breathing high-power street/strip engines
- Vastly improved flow and efficiency at high boost levels
- High contact ratio, precision helical gear design with 3.61:1 internal step-up
- Ventilated gearcase helps eliminate internal pressure concerns seen in non-vented designs
- Integrated gearcase baffling for proper oil control
- Simple oil slinger design supports proper fluid delivery to gears and bearings
- Factory pre-filled with special synthetic supercharger fluid
- Integrated dipstick for quick fluid checks
- Includes remote fluid drain hose (attached) for easier fluid changes without removing the unit
- The V-3 supercharger can be installed into any existing Vortech V-1, V-2, V-4, or V-7 bracketry
Performance Specs
- Internal Step-Up Ratio: 3.61:1
- Max Speed: 52,000 RPM
- Max Boost: 22 PSI
- Max Flow: 1,150 CFM
- Max Power: 775 HP
- Peak Efficiency: 78%
Dimensions
- Discharge OD: 2.75"
- Discharge ID: 2.38"
- Inlet OD: 3.5"
- Inducer Diameter: 3.1"
Required Bypass / Blow-Off Valve Guidance
- Superchargers exceeding 6 PSI require a Vortech Standard Bypass Valve or a Vortech Maxflow Race Bypass/Blowoff Valve.
- Superchargers exceeding 10 PSI require a higher-capacity valve such as a Vortech Maxflow Race Bypass/Blowoff Valve, Vortech Mondo Bypass Valve, or Vortech BV57 Valve.
Quick Specs
- Manufacturer: Paxton Superchargers
- Part Number: 1016118-P
- Finish: Polished
- Rotation: Clockwise
- Discharge: Curved
- Max Boost: 22 PSI
- Max Flow: 1,150 CFM
- Max Power: 775 HP
Optional Parts & Accessories
- Vortech Standard Bypass Valve (required when exceeding 6 PSI)
- Vortech Maxflow Race Bypass/Blowoff Valve (required when exceeding 6 PSI; higher-capacity option over 10 PSI)
- Vortech Mondo Bypass Valve (higher-capacity option over 10 PSI)
- Vortech BV57 Valve (higher-capacity option over 10 PSI)
Important Notes
- NOT AVAILABLE OR LEGAL FOR SALE IN CALIFORNIA
